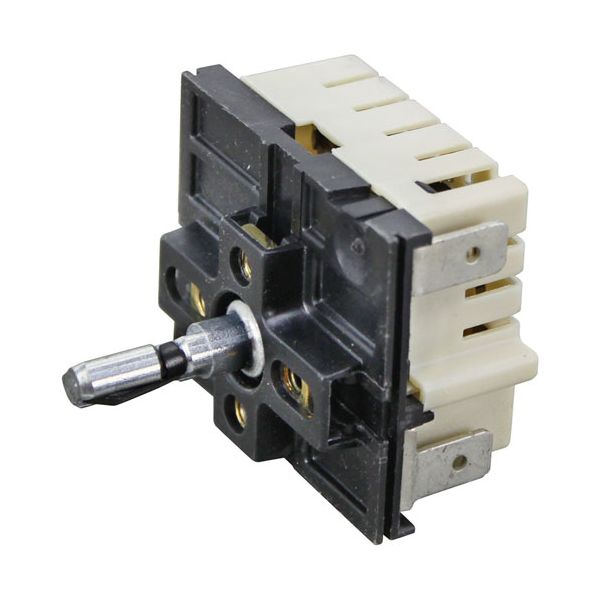

Star Mfg 2E-Z21561 Range Infinite Switch

Be the first to review this product
Special Price $52.81 Regular Price $62.87
In stock
SKU
2E-Z21561
Add to Wish List
Electrical & Hardware, Switches & Relays,
Manufacturer:
The Star-Mfg 2E-Z21561 Infinite Switch is an essential part for electric cooking ranges as it controls the heating elements. This switch works at 240V and 15A, which used in a bi-metallic strip to control the power by frequently turning on and off it offers an array of temperatures instead of set points. This design makes easier to regulate the heat thus suitable for use when you want to keep the food warm or when cooking at low heat. Advantages include increase in energy efficiency and flexibility in use, suitable for use in kitchen and home.

Dimensions

  • Length: 1.75 In
  • Width: 1.75 In
  • Height: 2.5 In
  • Weight: 0.2 lbs
https://partsfe.com/media/catalog/product/s/t/star-mfg-2e-z21561-range-infinite-switch-79347-2.jpg

Product Notes

  • Infinite Switch
  • 240V, 15 Amp, B Cam, Horiz. 2 Screw Mount,
  • Flat Up, .187" X 7/8" Shaft, 22-1/2 % At Low.
  • # 22-1073, Grey & Silver T'Stat Knob "Wells"
  • [ 2-3/8" Dia ] [ Off-Lo-2-8-Hi] [Mount .187"] [Flat Up ]
  • Wells Model B-40, B-406, B-44, B-446, B-50, B-506,
  • Ss-206, Ss-206D, Ss-206E, Ss-206Ed, Ss-206Er, Ss-206Erd,
  • Ss276, Mod (All),
  • Waffle Model?
  • For Wells Hot Plate Use # 42-1024
BLOOMFIELD:
STERO:
STA2E-34593, STA2E34593, WEL2E-34593, WEL2E34593
U-LINE:
5500-213, 5502-415, INF240-1018B, INF240-1118B
Reviews
Write Your Own Review
You're reviewing:Star Mfg 2E-Z21561 Range Infinite Switch
Your Rating
FAQS
Customer Questions
What maintenance is required for the Star Mfg 2E-Z21561 Infinite Switch?

Check the range switch for proper rotation and smooth operation. Clean terminals and contacts periodically. Inspect for loose wiring or signs of overheating. Proper maintenance ensures accurate heat control, prevents electrical faults, and maintains secure cooking conditions.

What are common issues with the Star Mfg 2E-Z21561 Infinite Switch?

  • Switch failing to adjust heat accurately.
  • Intermittent power due to loose contacts.
  • Burnt or discolored terminals indicating overheating.
  • Knob slipping or sticking during operation.
  • Electrical arcing causing sparks or noise.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off the power to the range at the breaker.

Step2: Remove the back panel to access the existing infinite switch.

Step3: Disconnect all wiring from the old switch, noting wire locations.

Step4: Unscrew and remove the old infinite switch.

Step5: Install the new infinite switch and reconnect wires to matching terminals.

Step6: Secure the switch and replace the back panel.

Step7: Restore power and test the control for proper burner heat.
