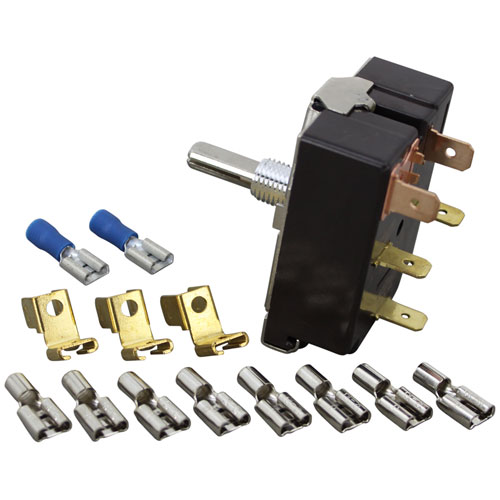

Lang 30304-06-1 3-Heat Rotary Switch

SKU: 30304-06-1 1-30304-06-1 Brand:
Lang
Availability:
In Stock
(0)
$204.18 Price reduced from $216.29
Save $12.11
Have a Question? +1 (866) 863-0907

Specifications:

  • 3 Heat Rotary Switch Kit, Off-Low-Med-High
  • .187" D-Stem, Flat Down.
  • 25 Amp/240V, 5 Screw Terminals.
  • For Knob Use # 22-1070 Off-Low-Med-High
  • Lang

Description

The Lang 30304-06-1 3-Heat Rotary Switch is used in kitchen equipment to enable users to regulate the heat output. This Size 2.25" in length, 2" in width, and 1.63" in height. This model has a rotary switch that has off position and other four positions for low, medium, and high heat, which makes it suitable for different used. In terms of functionality, it is designed to work at 25A and 240V through five screw terminals to ensure its efficiency. Advantages are better control of the temperatures for cooking, and the compatibility of the knobs with certain environments in the kitchen.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 2.25 in
  • Height: 1.63 in
  • Width: 2 in

LANG:

30304-06 30304-35 30304-W35 PS-60101-W3

STAR MFG:

2E-30304-35 2E-30304-W35 P9-30304-06-1 PS-60101-W3

Step1: Turn off electrical power at breaker to avoid shock.

Step2: Remove control panel or front access cover.

Step3: Label and disconnect wiring from old rotary switch.

Step4: Remove mounting hardware and extract faulty switch.

Step5: Install new rotary switch in correct orientation.

Step6: Reconnect wires securely to matching terminals.

Step7: Reassemble panel and restore power.

Step8: Test all heat settings to confirm proper switching and operation.

  • According to the Lang part number this should be rated for 480V 15 amps. Correct?

  • What maintenance is required for the Lang 30304-06-1 Rotary Switch?

    Keep the rotary switch clean and free from grease or carbon buildup that can affect contact performance. Inspect terminals regularly for tightness and signs of overheating. Avoid excessive force when turning the switch. Replace if contacts become worn or inaccurate.

  • What are common issues with the Lang 30304-06-1 Rotary Switch?

    • Failure to change heat settings due to worn internal contacts.
    • Intermittent power or heat loss from loose terminals.
    • Overheating or melting from electrical overload.
    • Knob stiffness or breakage affecting rotation operates.
