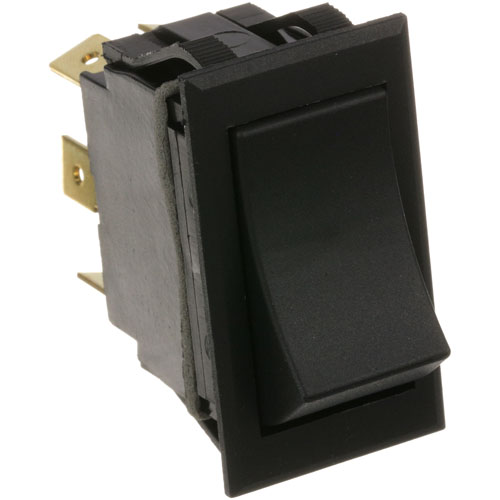

Garland 4527835 Convection Oven Switch 3-Position 7/8" X 1-1/2" DPDT

SKU: 4527835 1-4527835 Brand:
Garland
Availability:
In Stock
(0)
$55.65 Price reduced from $99.38
Save $43.73
Have a Question? +1 (866) 863-0907

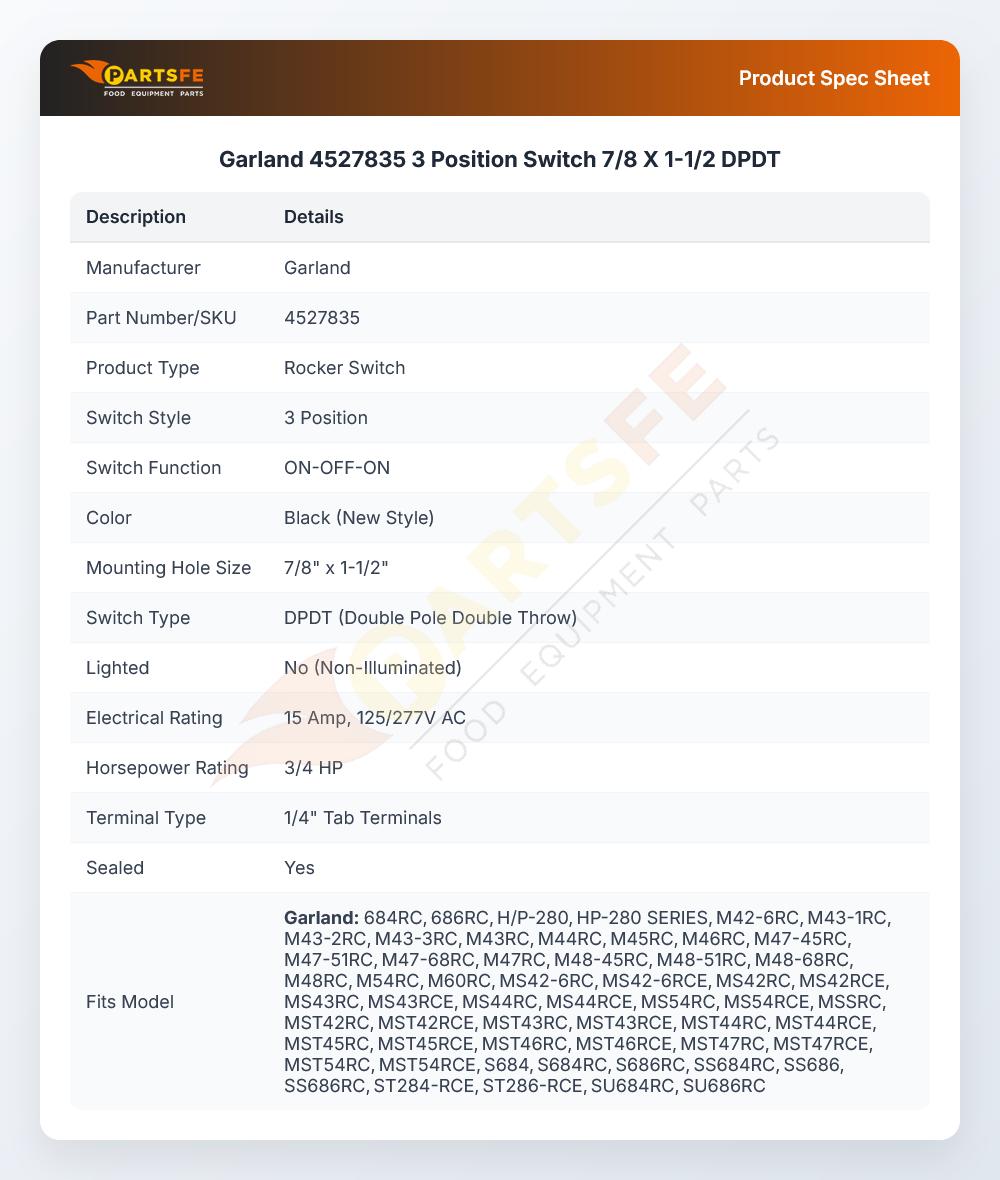

Specifications:

  • [ 3 Position Black Rocker ] No Longer Lighted,
  • [ Fits Hole 7/8" X 1-1/2" ]
  • [ Dpdt ] [ On-Off-On ] 3/4Hp -15 Amp, 125/277V
  • 6Ea 1/4" Tab Term. Dpdt, Sealed Switch.
  • This Is New Style Switch - Old Style Is Red & Amber
  • And = # 42-1610.
  • Us Range Oven Series Performer Ii

Description

The Garland 4527835 Convection Oven Switch 3-Position 7/8" X 1-1/2" DPDT with a size that can be used in compatible commercial ovens. This switch allows the choice of various operating modes or power circuits in the control system of the oven turning on or off heating or fan operations. It is installed on the control interface of foodservice ovens in kitchens and catering facilities, and regulates the operation of the ovens and helps maintain a consistent cooking performance through proper routing of electrical signals.

Dimensions:

  • Weight: 0.05 lbs
  • Length: 1.88 in
  • Height: 0.94 in
  • Width: 1.75 in

GARLAND:

1729100 2140 228264-1

Step1: Disconnect power supply and verify zero voltage before servicing to avoid electric shock.

Step2: Remove the control panel cover and carefully disconnect wiring from the old switch, labeling terminals.

Step3: Mount the new switch into the panel cutout and secure it firmly in position.

Step4: Reconnect terminals according to wiring diagram, ensuring tight and correct placement.

Step5: Restore power and test positions for proper operation before returning equipment to service.

  • What maintenance is required for the Garland 4527835 Switch?

    Regularly inspect the switch for wear, loose connections, or corrosion on terminals. Keep the unit clean and free of grease or debris to ensure smooth operation. Tighten electrical connections as needed and ensure proper insulation. Always disconnect power before servicing for safety.

  • What are common issues with the Garland 4527835 Switch?

    • Switch fails to change positions properly
    • Intermittent electrical connectivity
    • Worn or damaged internal contacts
    • Overheating due to electrical faults
    • Loose or faulty terminal connections
