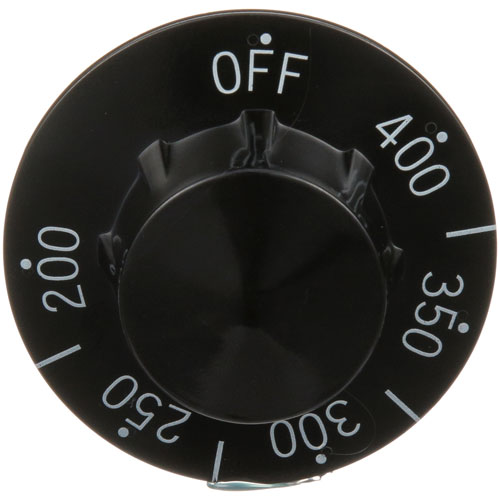

Royal Range 3110 Fryer Thermostat Knob 2-1/4" 400-200°F

SKU: 3110 1-3110 Brand:
ROYAL RANGE
Availability:
In Stock
(1)
$13.04 Price reduced from $14.47
Save $1.43
Have a Question? +1 (866) 863-0907

Specifications:

  • Black T'Stat Knob W/ White Printed Numbers
  • [ 2-1/4" Dia ] [Off-400-200F] [Mount .187"] [Flat Down ]
  • American Range Fryer Af Series
  • Anets Fryer Where Applicable
  • Frymaster Fryer - Where Applicable.
  • Dynamic Cooking Systems Fryer F, Fsf
  • Groen Braising Pan Series: Chfp, Fpc, Mw/Fpc,
  • Nfpc, Nhfp,Td/Fpc.
  • Imperial Fryer Series: If, Ihr, Ir.
  • Pitco Fryer All Gas & Electric Fryers
  • Southbend Sgs, Hdg
  • Tri-Star Tsf
  • Vulcan Fryer 7594G, 7595G~
  • Hf91G, Hf92G, (Old 7891G &
  • 7892G).
  • Wolf Fryer Wtf-35

Description

The Royal Range 3110 Fryer Thermostat Knob is a replacement control part that is compatible with commercial use. It is 2-1/4" in diameter and has temperature indications between 200°-400°F, which means the kitchen can set and adjust the frying temperatures accurately during operation. This knob is fitted on the thermostat shaft and it controls the amount of heat to ensure that the fryer performs uniformly. It is used in many restaurants, cafeterias, and other foodservice settings to maintain temperature as a component of the overall heating and safety system of the fryer.

Dimensions:

  • Weight: 0.06 lbs
  • Length: 2.25 in
  • Height: 0.75 in
  • Width: 2.25 in

AMERICAN RANGE:

-11111 -A32013 11111 A32013 AMR11111 AMRA32013

ANETS:

-P8904-09 ANEP8901-38 P8901-38 P8904-09

APW WYOTT:

-300229 2C-300229 300229

BLODGETT:

1184689 BL1184689

DEAN:

1205 12051 810-2035 8102035

DYNAMIC COOKING SYSTEMS:

14213 DCS14213

FRYMASTER:

1205 12051 810-2035 8102035 FM1205 FM12051 FM810-2035 FM8102035

GARLAND:

-1205 1205 GL1205

GROEN:

-003908 -012839 -Z003908 -Z012839 003908 012839 12839 3908 GR003908 GR012839 GR12839 GR3908 GRZ003908 Z003908 Z012839

HOBART:

00-412195-00001 00-721038-00001 108659-5 112195-1 21038-1 412195-00001 412195-1 721038-00001 721038-1

IMPERIAL:

-1176 1176 IMP1176

MARKET FORGE:

-93-0193 93-0193

PITCO:

-P8901-38 -P8904-09 P8901-38 P8904-09

ROYAL RANGE:

-3110

SOUTHBEND:

-1182586 1073497 1182156 1182586 SOU1073497 SOU1182156 SOU1182586

STERO:

STA2R-1182156 STA2R1182156

TRI-STAR:

2C-300229 300229 TRS300229

VULCAN HART:

-00-412195-00001 -00-721038-00001 -108659-5 -112195-1 -21038-1 -412195-00001 -412195-1 -721038-00001 -721038-1 00-412195-00001 00-721038-00001 108659-5 112195-1 21038-1 412195-00001 412195-1 721038-00001 721038-1 VH21038-1 VH721038-1

Step1: Ensure appliance is turned off before installation.

Step2: Pull off the damaged or worn knob from the shaft.

Step3: Align new knob with the control shaft flat side.

Step4: Push the knob firmly into place until secure.

Step5: Rotate the knob to check smooth movement.

Step6: Turn on unit and verify an accurate temperature control response.

  • What maintenance is required for the Royal Range 3110 Thermostat Knob?

    Regularly inspect the knob for cracks, wear, or loose mounting. Clean around the knob to prevent grease or debris buildup. Ensure smooth rotation and proper alignment with the thermostat shaft. Follow safety precautions when handling hot surfaces or electrical components.

  • What are common issues with the Royal Range 3110 Thermostat Knob?

    • Knob becoming loose or detached.
    • Difficulty turning or sticking.
    • Inaccurate temperature settings.
    • Cracks or physical damage.
    • Misalignment with thermostat shaft.
