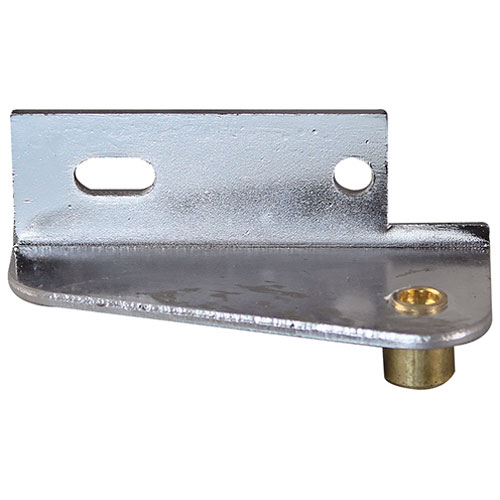

Delfield 3231072 Door Hinge Bottom RH/Top LH

SKU: 3231072 1-3231072 Brand:
Delfield
Availability:
In Stock
(1)
$20.02 Price reduced from $26.00
Save $5.98
Have a Question? +1 (866) 863-0907

Specifications:

  • Door Hinge Bracket, Right Hand Bottomk, Left Hand Top
  • Delfield 18648-Buc, 18648-Ptb, 18648Ptb, 18660-Buc,
  • 18660-Ptb, 18672-Buc, 18672-Ptb, 18691-Buc, 18691-Ptb,
  • 18699-Buc, 18699-Ptb, 18699Buc, 18699Ptb, 18Sc39R, 4560N,
  • Ctb8146-Nb, Ctb8160-Nb, Ctb8175-Nb, F15Mc48D, F15Mc48N,
  • F15Mc72D, F15Mc72N, F15Mr48D, F15Mr48N, F15Mr72D, F15Mr72N,
  • F15Pc48D, F15Pc48N, F15Pc72D, F15Pc72N, F15Pr48D, F15Pr48N,
  • F15Pr72D, F15Pr72N, F15Sc48D, F15Sc48N, F15Sc72D, F15Sc72N,
  • F15Sr48D, F15Sr48N, F15Sr72D, F15Sr72N, F18Dc52, F18Dc60,
  • F18Dc68, F18Dc72, F18Dc82, F18Dc91, F18Dc99, F18Dr44,
  • F18Dr52, F18Dr60, F18Dr70, F18Dr79, F18Dr87, F18Fc62,
  • F18Fc70, F18Fc78, F18Fc88, F18Fr35, F18Fr50, F18Fr58,
  • F18Fr66, F18Fr76, F18Mc39A, F18Mc39D, F18Mc52A, F18Mc52D,
  • F18Mc52E, F18Mc60A, F18Mc60D, F18Mc60E, F18Mr31A, F18Mr44A,
  • F18Mr44D, F18Mr52A, F18Mr52D, F18Mr52E, F18Rc48R, F18Rc52,

Description

The Delfield 3231072 Door Hinge Bottom RH/Top LH provides support and motion to the doors of the compatible commercial foodservice cabinets. It is mounted at the bottom right and the top left so that it can pivot well without losing its position in relation to the door frame. It is fitted with latching and sealing elements to ensure that the cabinet is easily opened and closed and that it remains tightly closed. This hinge provides stability to the structure, internal temperature control and assistance in uniform operation in high volume kitchen setups.

Dimensions:

  • Weight: 0.15 lbs
  • Length: 3 in
  • Height: 1.5 in
  • Width: 1 in

DELFIELD:

3234072 3234265 DEL3231072 DEL3234072 DEL3234265 DELTBP30009 TBP30009

Step1: Disconnect power to unit and ensure door is supported to prevent dropping

Step2: Remove old hinge hardware

Step3: Align new hinge with mounting points

Step4: Secure with screws, tightening evenly

Step5: Reattach door and check alignment

Step6: Lubricate if needed and test smooth operation

Step7: Verify hinge orientation matches configuration before final tightening

Step8: Restore power and open door slowly to confirm proper operation.

  • What maintenance is required for the Delfield 3231072 Door Hinge?

    Inspect the hinge regularly for wear, looseness, and alignment issues. Lubricate moving joints with food-safe lubricant to reduce friction and noise. Tighten mounting screws to ensure stability and smooth door operation in commercial refrigeration equipment.

  • What are common issues with the Delfield 3231072 Door Hinge?

    • Door sagging due to worn hinge pivot.
    • Misalignment causing improper sealing.
    • Squeaking or grinding during operation.
    • Loose mounting screws leading to instability.
    • Corrosion or rust on hinge components.
    • Difficulty in smooth door closure.

Customer Reviews

5 Based on 1 reviews
5 ★
1
4 ★
0
3 ★
0
2 ★
0
1 ★
0
1 review
  • Flexible Usage
    Baxly —

    Reliable hinge, works without squeaking
