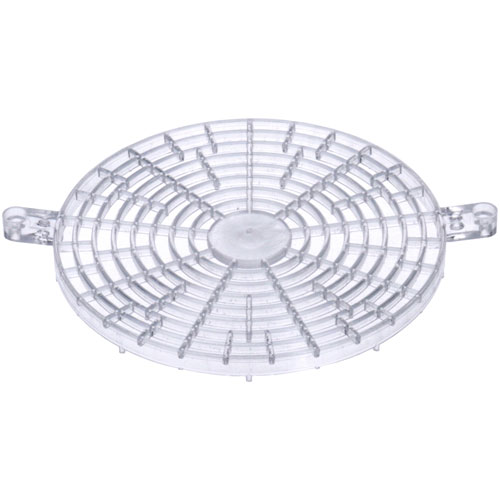

Delfield 3516173 Refrigerator Evaporator Fan Guard 6-3/8" DIA

SKU: 3516173 1-3516173 Brand:
Delfield
Availability:
In Stock
(0)
$26.88 Price reduced from $48.00
Save $21.12
Have a Question? +1 (866) 863-0907

Specifications:

  • 6-3/8" Dia., 7-1/2" Mt Hole Ctrs, 3/8" High, Clear Plastic
  • Delfield Model: Mark 7,186114-Buc, 186114-Ptb, 18648-Buc,
  • 18648-Ptb, 18648Ptb, 18660-Buc, 18660-Ptb, 18672-Buc,
  • 18672-Ptb, 18691-Buc, 18691-Ptb, 18699-Buc, 18699-Ptb,
  • 18699Buc, 18699Ptb, 402, 403, 4048-St, 4048-Uc, 406, 406Cp,
  • 407, 4148-St, 4148-Uc, 7048-M, 7048-P, 7048-S, Ctb8146-Nb,
  • Ctb8160-Nb, Ctb8175-Nb, F15Mc48D, F15Mc48N, F15Mc72D,
  • F15Mc72N, F15Mr48D, F15Mr48N, F15Mr72D, F15Mr72N, F15Pc48D,
  • F15Pc48N, F15Pc72D, F15Pc72N, F15Pr48D, F15Pr48N, F15Pr72D,
  • F15Pr72N, F15Sc48D, F15Sc48N, F15Sc72D, F15Sc72N, F15Sr48D,
  • F15Sr48N, F15Sr72D, F15Sr72N, F18Dc52, F18Dc60, F18Dc68,
  • F18Dc72, F18Dc82, F18Dc91, F18Dc99, F18Dr44, F18Dr52,
  • F18Dr60, F18Dr70, F18Dr79, F18Dr87, F18Fc62, F18Fc70,
  • F18Fc78, F18Fc88, F18Fr35, F18Fr50, F18Fr58, F18Fr66,
  • F18Fr76, F18Mc39A, F18Mc39D, F18Mc52A, F18Mc52D, F18Mc52E,

Description

The Delfield 3516173 Refrigerator Evaporator Fan Guard 6-3/8" DIA control the airflow exposure around cooling fan while allowing a steady flow inside the refrigeration unit. It work by covering the rotating fan blade and maintaining separation between internal component and moving parts during operation. This fan cover is set up near the evaporator section inside compatible commercial appliance where airflow management and component shielding are required. The shield fits designated appliance assembly and support proper fan area coverage in foodservice cooling equipment.

Dimensions:

  • Weight: 0.15 lbs
  • Length: 8 in
  • Height: 0.38 in
  • Width: 6.38 in

An evaporator fan guard is used inside commercial refrigerators to help protect the area where the evaporator fan is installed. It is positioned around the evaporator fan to help prevent contact between the moving blades and any person or object that may come near it. The design still allows airflow so the cooling process inside the unit is not affected. The dimensions of 6-3/8 inches and 3/8 inches in height allow proper positioning inside the refrigerator. The part is made of clear plastic material and is used in various commercial refrigerators. If the fan guard becomes broken or improperly positioned, replacing it helps maintain safety and proper unit operation.

Equipment Compatibility:
Delfield Evaporator fan guards are used in commercial refrigerators and cold storage units found in restaurants, hotels, cafeterias, and other food service areas where airflow and fan protection are needed. This Evaporator Fan Guard 3516173 fits refrigeration systems from brands like Delfield, Russell, and other similar equipment makers, where fan safety and proper air movement are required for normal cooling.
Brand Compatibility
Replaces multiple part numbers used across commercial refrigeration equipment brands, including Delfield, Russell, and related cold storage systems. Refer to the “Replaces Parts” section for complete cross-reference and compatibility details.

Product Specifications:

Manufacturer: Delfield
Product Type: Evaporator Fan Guard
Diameter: 6-3/8"
Mounting Distance: 7-1/2"
Height: 3/8"
Material: Clear Plastic
Use: Protects the evaporator fan in refrigeration units

Key Features:

  • Covers the fan area to prevent direct contact with moving blades
  • Allows air to flow freely for proper cooling inside the unit
  • Clear plastic design makes it easy to see inside the system
  • Fits standard 7-1/2" mounting spacing for proper installation
  • Helps keep the fan area safe during normal operation

DELFIELD:

3516173-S 3516173S DEL3516173 DEL3516173S

RUSSELL:

3246 RUS3246

Step1: Disconnect power to the unit and wear protective gloves.

Step2: Align guard over fan opening using in mounting centers.

Step3: Insert mounting screws through all provided mounting holes carefully.

Step4: Tighten evenly to secure fan guard in place.

Step5: Verify clearance and ensure no blade contact occurs.

Step6: Restore power and test airflow for safe and proper operation.

Step7: Recheck mounting stability after initial run.

  • What maintenance is required for the Delfield 3516173 Evaporative Fan?

    Inspect the fan guard regularly for cracks, buildup, or deformation that could restrict airflow. Clean accumulated dust and debris to maintain proper ventilation. Ensure the guard remains securely mounted to prevent movement or vibration during operation.

  • What are common issues with the Delfield 3516173 Evaporative Fan?

    • Cracking or warping of plastic guard.
    • Dust buildup restricting airflow.
    • Loose mounting causing vibration.
    • Misalignment with fan assembly.
    • Broken or missing mounting clips.
    • Stress fractures from temperature fluctuations.
