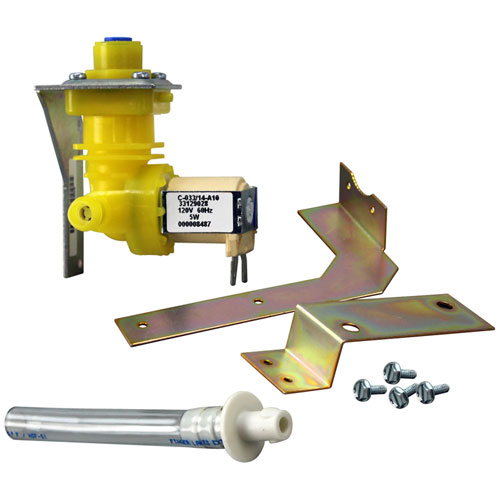

Manitowoc 375 Ice Machine Water Inlet Valve 0.50 GPM 10W 115V-120V

SKU: 375 1-375 Brand:
Manitowoc
Availability:
In Stock
(0)
$130.69 Price reduced from $246.12
Save $115.43
Have a Question? +1 (866) 863-0907

Specifications:

  • Waater Inlet Valve, 115/120V, .50 GPM, 10W, 50/60Hz
  • Manitowoc Id0302A, Id0303W, Id0523W, Id1472C, Iy0304A,
  • Iy0305W, Iy0524A, Iy0525W, Iy1474C, Sd0302A, Sd0303W,
  • Sd0322A, Sd0322Ap, Sd0323W, Sd0323Wp, Sd1072C, Sd1472C,
  • Sr0300A, Sr0301W, Sr0320A, Sr0320Ap, Sr0321W, Sr0321Wp,
  • Sy0304A, Sy0305W, Sy0324A, Sy0324Ap, Sy0325W, Sy0325Wp,
  • Sy1074C, Sy1474C

Description

The Manitowoc 375 Water Inlet Valve is an essential component for ice machines for supplying water to the ice machine. This high quality valve has a flow rate of 0.50 GPM that is ideal for making ice. It is suitable for 115V-120V power source and has 10W watts power, ensuring stable performance and low power consumption. This is because; it helps in regulating water supply and therefore it enhances speed of ice production, minimum time involved in this process hence increases efficiency of the machine.

Dimensions:

  • Weight: 0.56 lbs
  • Length: 4.5 in
  • Height: 3 in
  • Width: 3.5 in

MANITOWOC:

000000375 000009120 9120 MAN000000375 MAN000009120 MAN375 MAN9120

Step1: Disconnect Ice Machine power supply and shut off incoming water line before starting work.

Step2: Remove the machine panel to access the existing water inlet valve assembly.

Step3: Label and disconnect electrical wires and water tubing from the old valve.

Step4: Unscrew mounting hardware and carefully remove the faulty inlet valve component.

Step5: Position the new valve, secure it with screws, and reconnect tubing.

Step6: Reattach electrical wires to matching terminals, ensuring firm and correct connections.

Step7: Restore water supply, check for leaks, replace panel, and reconnect power.

  • What maintenance is required for the Manitowoc 375 Inlet Valve?

    Regularly inspect and clean the inlet filter to prevent sediment blockage. Check coil operation and wiring for wear or looseness. Flushing the water line maintain consistent flow and reduces buildup affecting valve performance in ice machine systems.

  • What are common issues with the Manitowoc 375 Inlet Valve?

    • Restricted water flow due to clogging.
    • Coil not energizing or failing.
    • Valve sticking during operation.
    • Leakage at inlet or outlet connections.
    • Irregular water supply to ice unit.
