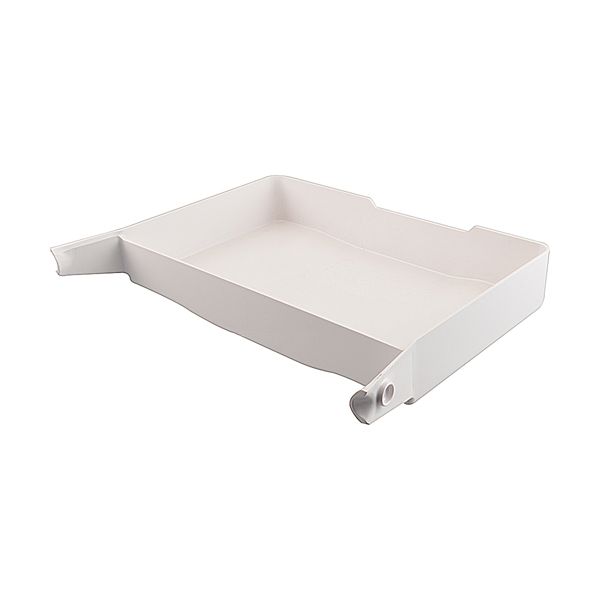

Manitowoc 4009149 Ice Machine Water Trough

Product Overview:
Holds water within the ice machine's water-handling area, serving as the designated water trough for the equipment. The Manitowoc 4009149 Ice Machine Water Trough is an OEM trough component used within the ice machine assembly. Its trough structure provides the designated area for holding water during the ice-making process.

Water Collection:
Water moving through the ice-making system is collected and directed by the trough within the evaporator compartment. Its shallow tray design supports the intended flow toward the appropriate areas while helping prevent uncontrolled water collection around the equipment. The trough works with the surrounding water-distribution components to support the water movement needed during ice formation.

Evaporator Compartment Support:
Within the evaporator compartment, the water trough provides a designated area for water collection during normal ice production. It works alongside the water pump, distribution components, and evaporator as part of the ice machine’s water-management arrangement. The trough’s configuration without tabs is an important identifying feature, since the replacement must match the equipment’s existing design.

Replacement Guidelines:
When selecting a replacement, compare the existing component with the Manitowoc 4009149 Ice Machine Water Trough to confirm that the physical design and water-management arrangement match. Replace the component if it is cracked, damaged, deformed, or no longer supports the intended water-collection function. Visible deterioration or changes in shape may indicate that the trough needs replacement.

Common Failure Symptoms:

• Cracks or visible damage in the water trough.
• Deformation that affects the trough’s intended position.
• Water collecting in areas outside the designated trough.
• Unusual water flow around the evaporator compartment.
• A replacement trough that does not match the existing design.

Equipment Compatibility:
The Manitowoc ice machine must use the OEM water trough configuration for 4009149. Confirm the existing ice machine configuration, water trough arrangement, and part number before purchase to ensure the replacement matches the intended equipment.

Technical Specifications:
Manufacturer: Manitowoc
Part Number: 4009149
Component Type: Water Trough
Equipment Type: Ice Machine

Step1: Turn off the power before removing old trough.

Step2: Remove old water trough carefully.

Step3: Clean the mounting area of residue or scale.

Step4: Position new trough and secure in place.

Step5: Restore power and water supply.

Step6: Test the ice machine for proper water distribution.

• What maintenance is required for the Manitowoc 4009149 Water Trough?

  Clean trough regularly to remove mineral deposits and debris. Inspect for cracks or leaks. Proper maintenance supports accurate water distribution, secure ice production, and prevents contamination.

• What are the common issues with the Manitowoc 4009149 Water Trough?

  • Cracks or leaks causing water loss.
  • Mineral buildup restricting flow.
  • Misalignment affecting ice production.
  • Contamination reducing ice quality.
