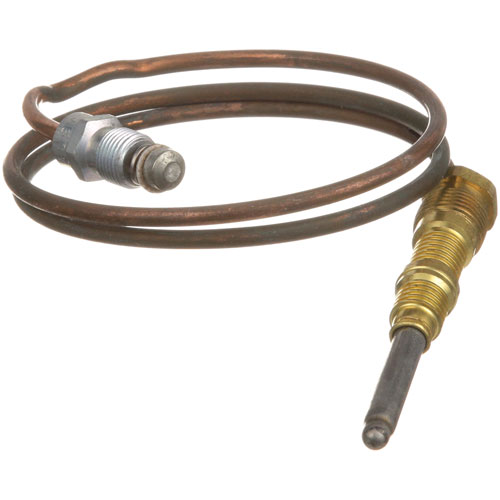

Hobart 412788-00003 Thermocouple 24"L 20-30mV 1900 Series HD

SKU: 412788-00003 1-412788-00003 Brand:
Hobart
Availability:
In Stock
(1)
$25.98 Price reduced from $33.75
Save $7.77
Have a Question? +1 (866) 863-0907

Specifications:

  • 1900 Series Heavy Duty Thermocouple 24" Long. 20-30 Mv
  • Coaxial Thermocouple Threads = 11/32"-32
  • Anets
  • Fryer Where Applicable
  • Cecilware
  • Fryer Gf(8,16,28), Fm28

Description

The Hobart 412788-00003 Thermocouple is a temperature sensor that is intended to be used in 1900 Series HD commercial cooking equipment. This component is 24" long and rated 20-30 millivolts and operates based on the concept of sensing the heat of a pilot flame and providing a signal to manage gas flow. The thermocouple is installed as a safety measure in the gas control system, and is used to stop unburned gas from escaping in case the flame is lost. Its operation aids in providing stable operation of the burner, accurate ignition, and correct shutdown in fault conditions.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 4.25 in
  • Height: 1 in
  • Width: 1 in

ANETS:

P5047540

CECILWARE:

F243A F243F GMF243A GMF243F

DEAN:

807-0699 8070699

FRYMASTER:

807-0699 8070699 FM807-0699 FM8070699

GRINDMASTER:

F243A F243F

HOBART:

00-412788-00003 00-412788-00020 412788-00020 412788-20 412788-3 HOB00-412788-00003 HOB412788-00003 HOB412788-3

MAGIKITCH'N:

2J-P5047540 MKP5047540 P5047540

PITCO:

P5047540 PTP5047540

SOUTHBEND:

1173576

STAR MFG:

2J-P5047540

STERO:

TOARH36

U-LINE:

1900-024

VULCAN HART:

00-412788-00003 00-412788-00020 00-412788-00024 412788-00020 412788-00024 412788-20 412788-24 412788-3 VH00-412788-00003 VH412788-00003 VH412788-3

Step1: Turn off gas/electric supply and allow equipment to cool completely before servicing.

Step2: Remove access panel and disconnect old thermocouple leads, noting routing.

Step3: Install new thermocouple in original bracket, ensuring probe sits in flame path.

Step4: Secure connections to control valve terminals; avoid over-tightening.

Step5: Reassemble panel and restore power, then test ignition and flame response.

Step6: Check stable flame signal and ensure no gas leaks using proper leak solution.

  • What maintenance is required for the Hobart 412788-00003 Thermocouple?

    Maintain the thermocouple by regularly inspecting connections for corrosion or looseness and cleaning terminals to ensure accurate signal transmission. Check wiring insulation for damage and secure mounting to prevent vibration issues. Verify millivolt output periodically to maintain accurate performance.

  • What are common issues with the Hobart 412788-00003 Thermocouple?

    • Weak or intermittent signal output due to worn junction or contamination.
    • Incorrect temperature readings from damaged thermocouple wires.
    • Loose connections causing signal fluctuation.
    • Corrosion at terminals leading to inconsistent operation.
