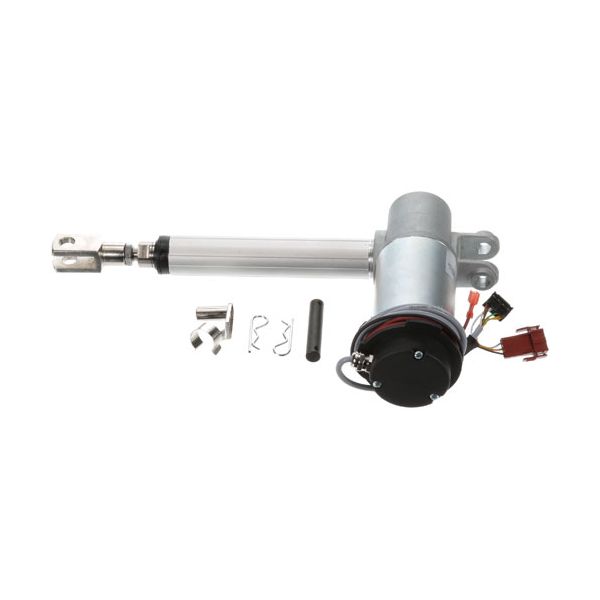

Garland 4530036 Linear Actuator 3300 RPM 1.5A 90 VDC

Rating:
5 5 1
1  Review Add Your Review
Special Price $416.10 Regular Price $730.00
In stock
SKU
4530036
Add to Wish List
Other Categories, Additional Parts, General Parts
Manufacturer:
The Garland 4530036 Linear Actuator is a motor-driven and screw-based system, that is used to convert electrical energy into linear motion, reaching speeds of 3300 RPM and consuming 1.5A at 90 VDC. When power is applied to it either extends or retracts in a controlled fashion, and this enables it to move smoothly and continuously. It is mounted directly on a frame or bracket and designed to fit into a machine, equipment or automation system. It is commonly attached to the mechanical components and it moves so that it can move accurately in a linear direction within the mechanism.

Dimensions

  • Length: 18 In
  • Width: 10 In
  • Height: 5 In
  • Weight: 6.52 lbs
https://partsfe.com/media/catalog/product/g/a/garland-4530036-90vdc-linear-actuator-3300-rpm-1-5a-70544-2.jpg

Product Notes

  • Linear Actuator
  • 90Vdc, 3300 RPM, 1.5A, With Sub Parts And Instructions
  • Garland Grill: Mwe-9501, Mwe-9801, Mweh-9501, Mweh-9801,
  • Mwg-9501, Mwgh-9501, Xe24, Xg-36-Jib, Xg24
More Information
Disable SaleableNo
Replaces Parts
Reviews 1
Write Your Own Review
You're reviewing:Garland 4530036 Linear Actuator 3300 RPM 1.5A 90 VDC
Your Rating
FAQS
Customer Questions
What maintenance is required for the Garland 4530036 Linear Actuator?

Inspect the actuator regularly for smooth extension and retraction movement. Keep the unit clean from grease, dust, and debris that may restrict motion. Check electrical connections and mounting points for stability.

What are the common issues with the Garland 4530036 Linear Actuator?

  • Failure to extend or retract due to internal motor issues.
  • Jerky or inconsistent movement affects performance.
  • Electrical connection faults interrupt the operation.
  • Overheating from excessive load or continuous use.
  • Wear of internal gears reduces efficiency.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect the power supply before installation.

Step2: Remove the old actuator and clean the mounting surfaces.

Step3: Install the new actuator in the same orientation, aligning mounting points.

Step4: Connect wiring securely and verify mechanical travel is unobstructed.

Step5: Restore power and test actuator operation.

Step6: Keep hands and tools away from moving parts.
