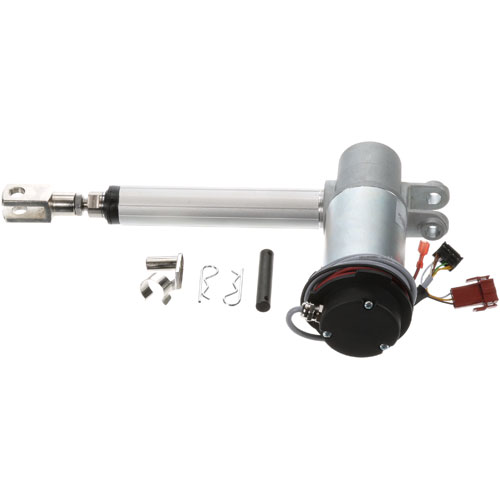

Garland 4530036 Linear Actuator 3300 RPM 1.5A 90 VDC

SKU: 4530036 1-4530036 Brand:
Garland
Availability:
In Stock
(1)
$440.49 Price reduced from $730.00
Save $289.51
Have a Question? +1 (866) 863-0907

Specifications:

  • Linear Actuator
  • 90Vdc, 3300 RPM, 1.5A, With Sub Parts And Instructions
  • Garland Grill: Mwe-9501, Mwe-9801, Mweh-9501, Mweh-9801,
  • Mwg-9501, Mwgh-9501, Xe24, Xg-36-Jib, Xg24

Description

The Garland 4530036 Linear Actuator is a motor-driven and screw-based system, that is used to convert electrical energy into linear motion, reaching speeds of 3300 RPM and consuming 1.5A at 90 VDC. When power is applied to it either extends or retracts in a controlled fashion, and this enables it to move smoothly and continuously. It is mounted directly on a frame or bracket and designed to fit into a machine, equipment or automation system. It is commonly attached to the mechanical components and it moves so that it can move accurately in a linear direction within the mechanism.

Dimensions:

  • Weight: 6.52 lbs
  • Length: 18 in
  • Height: 5 in
  • Width: 10 in

GARLAND:

1812401 4525540 4525541 4530036-GAR CK4530036

Step1: Disconnect the power supply before installation.

Step2: Remove the old actuator and clean the mounting surfaces.

Step3: Install the new actuator in the same orientation, aligning mounting points.

Step4: Connect wiring securely and verify mechanical travel is unobstructed.

Step5: Restore power and test actuator operation.

Step6: Keep hands and tools away from moving parts.

  • What maintenance is required for the Garland 4530036 Linear Actuator?

    Inspect the actuator regularly for smooth extension and retraction movement. Keep the unit clean from grease, dust, and debris that may restrict motion. Check electrical connections and mounting points for stability.

  • What are the common issues with the Garland 4530036 Linear Actuator?

    • Failure to extend or retract due to internal motor issues.
    • Jerky or inconsistent movement affects performance.
    • Electrical connection faults interrupt the operation.
    • Overheating from excessive load or continuous use.
    • Wear of internal gears reduces efficiency.
