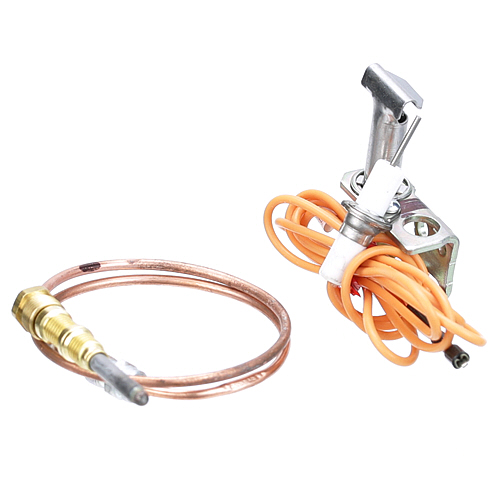

Jade Range 460-196-000 Pilot Assembly W/Ignitor & Thermocouple

SKU: 460-196-000 1-460-196-000 Brand:
Jade Range
Availability:
In Stock
(0)
$153.65 Price reduced from $289.36
Save $135.71
Have a Question? +1 (866) 863-0907

Description

The Jade Range 460-196-000 Pilot Assembly with Ignitor & Thermocouple combines flame ignition and sensing components into a single assembly for controlled gas operation. Mounted near the combustion area it positions each part in the required location to support coordinated ignition and flame monitoring. The included ignitor generates the spark that lights the gas stream while the thermocouple detects the presence of flame for the connected safety circuit. Coordinated interaction between both components establishes the ignition sequence and maintains monitored burner operation from startup onward.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 10.9 in
  • Height: 1.95 in
  • Width: 6.5 in
Manufacturer Name: Jade
Product Number: 460-196-000
OEM Part Number: 460-196-000
Product Description: Nat/Lp-Pilot,W/ Igniter W/ 42" Lead With 1/8" Female ;Push-On, 1/4" Cct Nut & Sleeve;Lp Orifice .018, # 26-1554;Nat Orifice .010, # 26-1554;Jade Oven Jsr-(24,36). Series: Jslb, Jtrh.;Wolf Oven Kf, Kfs, Fk, Kch(R)
Similar Models:00-714392-00042 - Hobart, 714392 - Hobart, 714392-00042 - Hobart, 714392-42 - Hobart, 4619600000 - Jade-Range, 00-714392-00042 - Vulcan-Hart, 714392 - Vulcan-Hart, 714392-00042 - Vulcan-Hart, 714392-42 - Vulcan-Hart, VH00-714392-00042 - Vulcan-Hart
Dimensions:
Length:3.5in/8.89cm
Width:3.5in/8.89cm
Height:2.75in/6.98cm
Weight:0.19lbs/86.18g

Choose the best Commercial kitchen & Restaurant equipment parts and supplies from PartsFe!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at 866-863-0907 or contact@partsfe.com

JADE RANGE:

3000013480 4619600000
