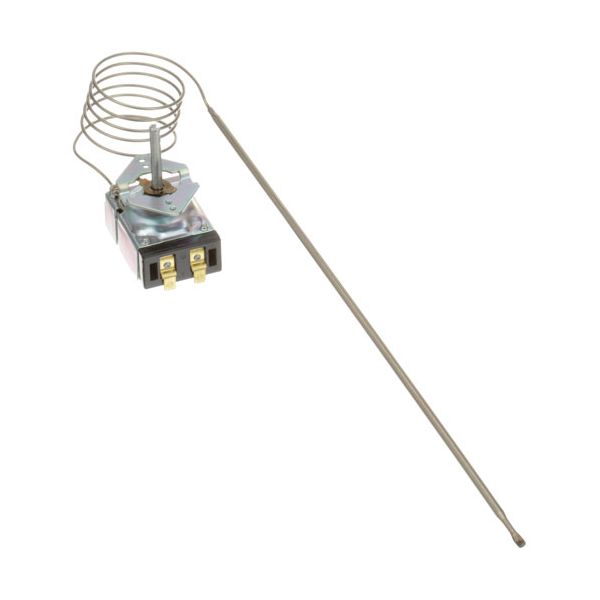

main product photo

Jade Range 4619000000 Range Thermostat KXT 3/16" X 12-1/4" 36" CAP 175-500°F

Be the first to review this product
Special Price $316.94 Regular Price $607.15
In stock
SKU
4619000000
Add to Wish List
Oven Parts, Oven Thermostats, Shop by manufacturers
Manufacturer:
The Jade Range 4619000000 Range Thermostat 3/16 x 12-1/4 x 36 CAP 175°C 500C KXT operates by detecting the temperature variations in the cooking unit and adjusting the flow of gas to keep the desired heat level. It operates on a temperature sensitive bulb and capillary system which expands and contracts with heat, which activates the control valve to control the burner activity. It is a thermostat installed in the control assembly of the range, whereby it is linked to the burner and temperature dial, and it controls the correct temperature during the cooking process.

Dimensions

  • Length: 13.75 In
  • Width: 2 In
  • Height: 3 In
  • Weight: 0.6 lbs
https://partsfe.com/media/catalog/product/j/a/jade-range-4619000000-range-thermostat-kxt-3-16-x-12-1-4-36-cap-175-500-f-74199-2.jpg

Product Notes

  • [ Type - Kxt ] [ Temp 175-500 ] [ Bulb 3/16" X 12-1/4" ]
  • [ Cap 36" ] [ Use Dial Off-200-500, # 22-1209 ]
  • For Jade Jco Ovens Use Either # 22-1327
  • (Pointer Knob) Or #22-1209 Black T'Stat Knob W/White
  • Numbers[ 2" Dia ] [ Off-200-500] [Mount .187"] [Flat
  • Down]
  • Jade Grill Series: Jggtb, Jgtb.
  • Market Forge 2900, 2992, 3000, 3092, Mf-R(4, 6, 8, 10)
  • Tri-Star Oven Tscv
  • Wolf/Vulcan Oven Afs, Caf, Ch & Chss W/Elec Ignition, H,
  • Kafs, Kcaf, Kch, Kchr, Kchss, Kf, Kfs, Kh, Xch, Xfs.
ROYAL RANGE:
2520, ROY2520
U-LINE:
5300-716, KX13-36, KX1336
Reviews
Write Your Own Review
You're reviewing:Jade Range 4619000000 Range Thermostat KXT 3/16" X 12-1/4" 36" CAP 175-500°F
Your Rating
FAQS
Customer Questions
What maintenance is required for the Jade Range 4619000000 Thermostat?

Inspect the thermostat bulb and capillary tube regularly for kinks or leaks. Clean external components to prevent grease buildup affecting temperature accuracy. Ensure secure mounting and proper calibration for safe operation in high-heat cooking conditions.

What are common issues with the Jade Range 4619000000 Thermostat?

  • Inaccurate temperature control due to sensor drift.
  • Capillary tube damage or leaks causing failure.
  • Calibration issues leading to uneven heating.
  • Worn seals reducing responsiveness over time.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off gas range and electrical power, and allow unit to cool completely before servicing.

Step2: Remove access panel and disconnect old thermostat capillary tube carefully from control.

Step3: Route new capillary tube through channel, avoiding sharp bends or kinks.

Step4: Mount thermostat securely and position sensing bulb in proper hot zone area.

Step5: Reconnect electrical terminals and ensure all fittings are tight and insulated.

Step6: Restore power, test temperature range, and check accurate calibration and safety cutoff operation
