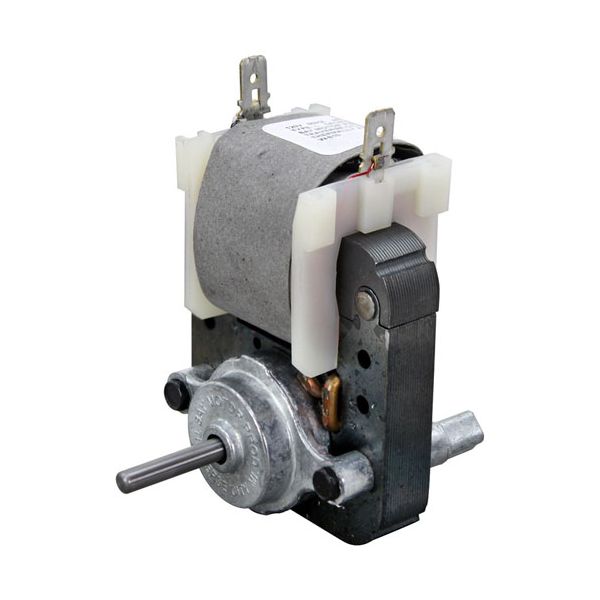

Provides the rotational power needed to operate the evaporator fan within the refrigeration system. The Beverage Air 501-170D Evaporator Fan Motor is designed for commercial refrigeration equipment to move air across the evaporator coil and circulate cooled air throughout the refrigerated compartment. Operating at 1600 RPM with a 9W power rating and 115V, 60Hz electrical specifications, the motor is manufactured to match the airflow requirements of the evaporator section and maintain continuous air movement during normal cooling operation.
Evaporator Air Movement:
It drives the fan blade to move air across the evaporator coil after the refrigerant absorbs heat from the cabinet. As air passes over the cooled coil, heat is removed before the conditioned air is circulated throughout the refrigerated compartment. This continuous airflow supports consistent cabinet temperatures, minimizes warm spots, and assists the refrigeration system in maintaining the operating temperature required for food storage.
Refrigeration Airflow:
This component provides continuous air circulation within the refrigeration system by drawing air through the evaporator coil and distributing it evenly throughout the cabinet. Uniform airflow improves temperature consistency across storage areas and allows the refrigeration system to respond effectively to changing thermal loads caused by door openings or product placement. Proper air movement also supports efficient heat transfer at the evaporator coil and contributes to stable refrigeration operation.
Replacement Guidelines:
Replace the Beverage-Air 501-170D Evaporator Fan Motor when wear, physical damage, deterioration, or electrical failure affects its intended air-moving function. Inspect the motor and related electrical connections and fan components for conditions that could affect airflow or component operation. Replace the component when it can no longer maintain its intended function within the refrigeration system.
Common Failure Symptoms:
- Evaporator fan does not rotate during operation.
- Reduced air movement inside the refrigerated compartment.
- Uneven cooling distribution within the storage area.
- Unusual motor operating noise.
- Fan assembly not maintaining normal airflow movement.
- Intermittent motor operation.
- Motor overheating during operation.
Equipment Compatibility:
The Beverage Air 501-170D Evaporator Fan Motor is intended for use with commercial refrigeration equipment. Equipment configurations may vary by model and production series. Always verify the equipment model number, manufacturer part number, voltage, frequency, wattage, and motor speed before purchasing to ensure the motor matches the required application.
Technical Specifications:
Brand: Beverage Air
Part Number: 501-170D
Component Name: Evaporator Fan Motor
Motor Speed: 1600 RPM
Power Rating: 9W
Voltage: 115V
Frequency: 60Hz
