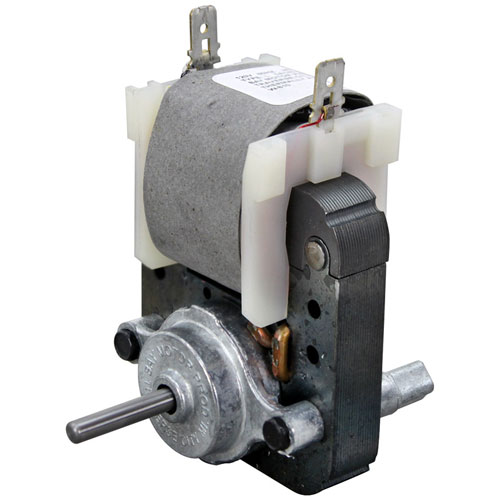

Beverage Air 501-170D Evaporator Fan Motor 1-7/8" CTRS 115V 60Hz

Evaporator Air Movement:
It drives the fan blade to move air across the evaporator coil after the refrigerant absorbs heat from the cabinet. As air passes over the cooled coil, heat is removed before the conditioned air is circulated throughout the refrigerated compartment. This continuous airflow supports consistent cabinet temperatures, minimizes warm spots, and assists the refrigeration system in maintaining the operating temperature required for food storage.

Refrigeration Airflow:
This component provides continuous air circulation within the refrigeration system by drawing air through the evaporator coil and distributing it evenly throughout the cabinet. Uniform airflow improves temperature consistency across storage areas and allows the refrigeration system to respond effectively to changing thermal loads caused by door openings or product placement. Proper air movement also supports efficient heat transfer at the evaporator coil and contributes to stable refrigeration operation.

Replacement Guidelines:
Replace the Beverage-Air 501-170D Evaporator Fan Motor when wear, physical damage, deterioration, or electrical failure affects its intended air-moving function. Inspect the motor and related electrical connections and fan components for conditions that could affect airflow or component operation. Replace the component when it can no longer maintain its intended function within the refrigeration system.

Common Failure Symptoms:

• Evaporator fan does not rotate during operation.
• Reduced air movement inside the refrigerated compartment.
• Uneven cooling distribution within the storage area.
• Unusual motor operating noise.
• Fan assembly not maintaining normal airflow movement.
• Intermittent motor operation.
• Motor overheating during operation.

Equipment Compatibility:
The Beverage Air 501-170D Evaporator Fan Motor is intended for use with commercial refrigeration equipment. Equipment configurations may vary by model and production series. Always verify the equipment model number, manufacturer part number, voltage, frequency, wattage, and motor speed before purchasing to ensure the motor matches the required application.

Technical Specifications:
Brand: Beverage Air
Part Number: 501-170D
Component Name: Evaporator Fan Motor
Motor Speed: 1600 RPM
Power Rating: 9W
Voltage: 115V
Frequency: 60Hz

Step1: Disconnect power to the unit at the outlet or breaker before beginning.

Step2: Remove the evaporator cover panel inside the appliance compartment.

Step3: Disconnect the fan motor wiring harness and remove the mounting screws.

Step4: Install the new fan motor in the same position and secure it with screws.

Step5: Reconnect the wiring harness and reinstall the evaporator cover.

Step6: Restore power and check that the fan runs smoothly and quietly.

• What maintenance is required for the Beverage Air 501-170D Evaporator Fan Motor?

  Inspect the motor periodically for dust, debris, or ice buildup. Clean the blades and the surrounding area to ensure proper airflow. Lubricate bearings if recommended and check electrical connections for safety. Avoid operating the motor with obstructions to prevent overheating.

• What are common issues with the Beverage Air 501-170D Evaporator Fan Motor?

  • Fan motor failing to start or running intermittently.
  • Excessive noise or vibration during operation.
  • Reduced airflow due to motor performance issues.
  • Motor overheating during continuous use.
  • Fan blade not spinning despite power supply.

• What is the Beverage Air 501-170D Evaporator Fan Motor used for?

  The Beverage Air 501-170D is used as the motor component for an evaporator fan in compatible commercial refrigeration equipment.

• What type of motor is the Beverage Air 501-170D?

  The Beverage Air 501-170D is an evaporator fan motor, specifically classified for use with the fan assembly in refrigeration equipment.

• What role does an evaporator fan motor have in a refrigeration system?

  An evaporator fan motor provides the mechanical drive required for the evaporator fan within the refrigeration system.

• What component works directly with an evaporator fan motor?

  The evaporator fan is the primary component associated with the motor, using the motor's rotational movement for its operation.

• Why is an evaporator fan motor an important part of the evaporator assembly?

  The evaporator fan motor provides the mechanical movement needed for the associated fan to operate within the evaporator section of compatible refrigeration equipment.
