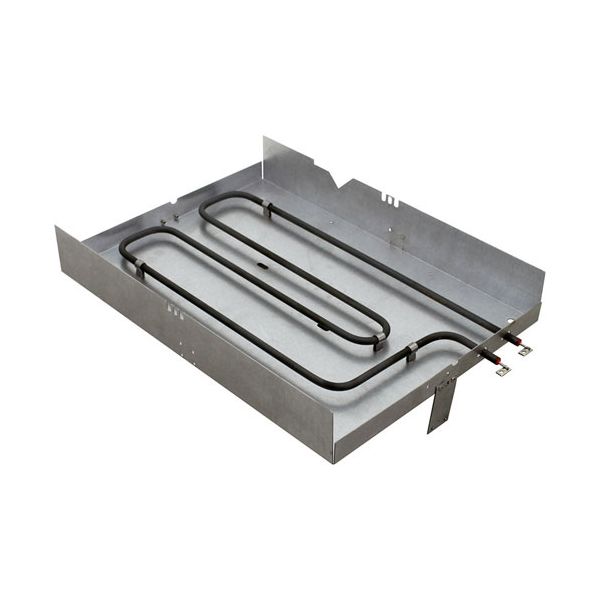

main product photo

Wells 503843 Oven Pan Element Assembly 240V 1650W

Be the first to review this product
Special Price $162.07 Regular Price $292.23
In stock
SKU
503843
Add to Wish List
Griddle & Grill Parts, Heating Elements,
Manufacturer:
Wells 503843 Oven Pan Element Assembly functions exclusively with food warmers by providing 240V heat output at 1650W. The assembly features dimensions of 16-11/16" x 12" x 2-1/4" to provide optimal performance and durability across MOD-100, MOD-200, MOD-300 and other models. It works with multiple Wells food warmer models which simplifies both replacement and maintenance procedures. The assembly contains the pan in combination with the heating element which leads to easier installation and better efficiency in food service operations. The Wells system combines design with functionality to heat your food properly while protecting its quality and safety parameters.

Dimensions

  • Length: 17 In
  • Width: 12 In
  • Height: 3.5 In
  • Weight: 3.5 lbs
https://partsfe.com/media/catalog/product/w/e/wells-503843-oven-pan-element-assembly-240v-1650w-63738-2.jpg

Product Notes

  • Pan & Element Assembly, 240V, 1650W
  • 16-11/16" X 12" X 2-1/4"
  • Element Only = Ap# 34-1508
  • Wells Food Warmer Mod-100, Mod-100T, Mod-100Td, Mod-127,
  • Mod-200, Mod-200T, Mod-200Tdm, Mod-200Tdm/Af, Mod-227,
  • Mod-300, Mod-300T, Mod-327, Mod-327Tdm, Mod-400, Mod-400T,
  • Mod-400Td, Mod-400Tdm, Mod-427, Mod-500, Mod-500T,
  • Mod-500Td, Mod-500Tdm, Mod-500Tdm/Af, Mod-527, Mod-527Tdm,
  • Mod-600
BLOOMFIELD:
STAR MFG:
Reviews
Write Your Own Review
You're reviewing:Wells 503843 Oven Pan Element Assembly 240V 1650W
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Wells 503843 Pan Element Assembly?

Clean the oven pan and heating element after each use. Check for proper alignment and secure electrical connections. Disconnect power before maintenance. Regular care ensures even heating and stable operation.

What are the common issues with the Wells 503843 Pan Element Assembly?

  • Element burnout or failure.
  • Uneven heating in the pan.
  • Loose or corroded wiring connections.
  • Misalignment affecting oven performance.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Ensure the oven is completely powered off and unplugged to avoid electric shock.

Step2: Remove the oven racks and any trays obstructing the element.

Step3: Place the existing pan element and carefully disconnect its wiring harness.

Step4: Unscrew and remove the old element.

Step5: Position the new element and secure it with screws.

Step6: Reconnect the wiring, replace racks, plug in the oven, and test functionality.
