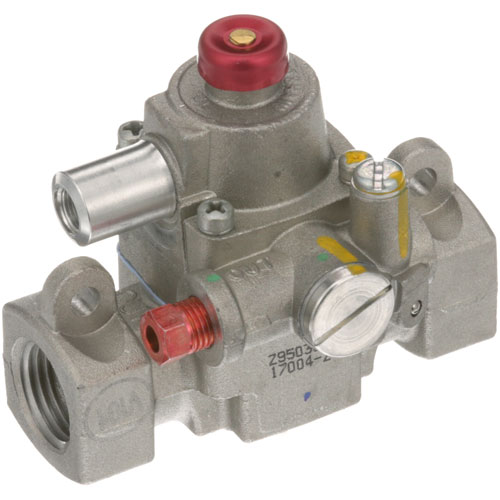

Blodgett 52092 Oven Pilot Safety Valve Ts11k

SKU: 52092 1-52092 Brand:
Blodgett
Availability:
In Stock
(1)
$187.71 Price reduced from $227.25
Save $39.54
Have a Question? +1 (866) 863-0907

Specifications:

  • Ts11K, High Temp Pilot Safety Valve, 1/2" Npt,
  • 3/16" Cct Pilot, 3-1/2" Width, Pilot Out Only ( K Type )
  • Ts11 Pilot Safety Valve For Blodgett Fm Retrofit Kits.
  • Note: Has Blue Gasket For High Temp.
  • Blodgett Oven Series 900, Early Units Updated & Units Made
  • After 1-25-09.
  • To Convert 1/4" Cct Pilot To 3/16" Cct Tubing
  • Order # 26-1883.
  • For Thermocouple Order # 51-1457 (Blodgett 52091)
  • For Nat Pilot Assembly Order # 51-1500 (Blodgett 52089)
  • For Lp Pilot Assmbly Add Lp Orifice # 26-1554 To Nat Pilot.
  • For Brass Adapter,1/2" Fpt X 1/2" Mpt, Use # 26-4139
  • For Complete Upgrade Kit Series 900, Use # 52-1169

Description

The Blodgett 52092 Pilot Safety Valve TS11K is an essential part of safety device for gas fired ovens. It serves as a safety measure to avoid gas leak and operation of handling systems. The idea was to design this valve to cut off the gas supply to the main burner if the pilot light were to extinguish. It prevents a serious fire hazard where unburned gas accumulates in the oven. A thermocouple in the TS11K valve senses the presence of the pilot flame. The valve closes and shuts of the gas supply if the pilot flame is extinguished and the thermocouple cools down.

Dimensions:

  • Weight: 0.5 lbs
  • Length: 3.5 in
  • Height: 3 in
  • Width: 2.5 in

Step1: Shut off gas supply and disconnect electrical power. Allow oven to cool completely before service.

Step2: Remove access panel to reach pilot and safety valve assembly.

Step3: Disconnect old valve, noting pilot tubing, thermocouple, and inlet/outlet positions.

Step4: Install new valve in correct gas flow direction and secure fittings tightly.

Step5: Reconnect pilot tube and thermocouple, ensuring proper alignment and tight seals.

Step6: Restore gas supply, check for leaks with soap solution, and test pilot flame ignition for better operation.

  • What maintenance is required for the Blodgett 52092 Blodgett 52092 Pilot Safety Valve?

    Inspect and clean the pilot assembly, removing carbon buildup and debris, and verify thermocouple connection alignment. Regular maintenance ensures consistent ignition and stable oven performance. Always shut off gas supply before servicing.

  • What are common issues with the Blodgett 52092 Blodgett 52092 Pilot Safety Valve?

    • Pilot flame outage or weak flame due to clogged orifice.
    • Thermocouple failure causing safety shutdown.
    • Gas flow inconsistency leading to ignition issues.
    • Valve sticking or delayed response.
    • Pilot safety valve malfunction affecting oven heating cycles.
