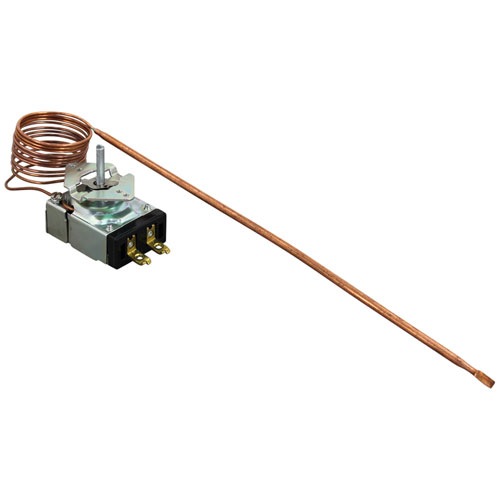

Vulcan Hart 5300-77K Griddle Thermostat 3/16" X 11-5/8" 175-550°F 60" Cap

SKU: 5300-77K 1-5300-77K Brand:
Vulcan Hart
Availability:
In Stock
(0)
$210.22 Price reduced from $323.90
Save $113.68
Have a Question? +1 (866) 863-0907

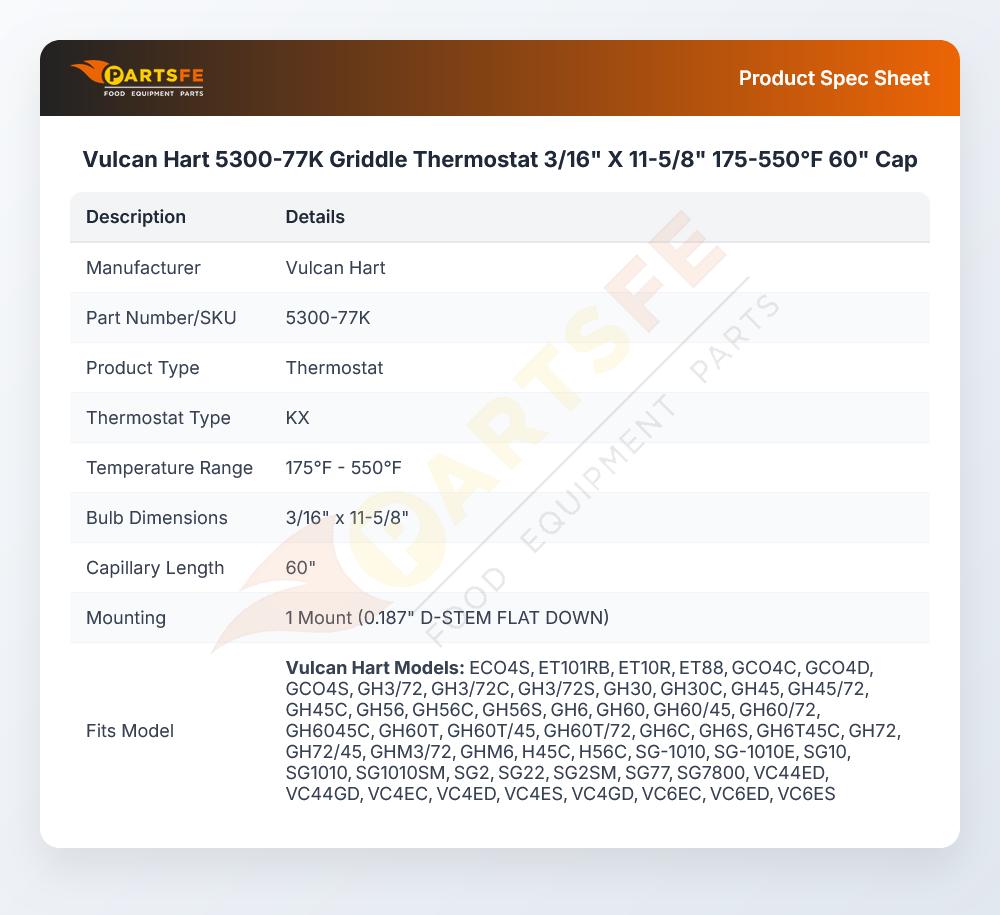

Specifications:

  • [ Type- Kx ] [ Temp 175-550 ] [ Bulb 3/16" X 11-5/8" ]
  • [ Cap 60" ] [ Mount 1 ] .187" D-Stem Flat Down,
  • [ Dial Use # 22-1007 Off-550-200 4-Way Blk/Silver &
  • [Bezel # 26-1227]
  • [Vul Dial # 22-1270 Off-550-200 Black Flat Down ]
  • [Vul Red Dial # 22-1441 Off-550-200 Flat
  • Up ( Need To Turn T'Stat 180 Degrees)]
  • Bakers Pride Oven X300
  • Vulcan Grill 77 (Older Electric Range), Vs, Vtm.
  • Oven 141, 241, Rgt-10.
  • Series: Et, Gh, Ghm, Sg, Vs, Vtm, Vc4Gs Vc6Gs,
  • Vc4Es, Vc6Es.
  • Wolf Convection Oven Wkgd

Description

Vulcan Hart 5300-77K Thermostat is a high performance temperature control device for commercial kitchens and Wolf appliances. Capable of managing a broad range of cooking from simmer to sear, this thermostat offers temperatures between 175°F and 550°F. It has a bulb size of 3/16" x 11-5/8" and 60" capillary to provide precise temperature control over the whole cooking surface. The D stem design is straightforward for mounting and operation. The benefits of this thermostat is that it keeps temperatures consistent for better food preparation, thereby improving cooking efficiency and food quality.

Dimensions:

  • Weight: 0.5 lbs
  • Length: 12.5 in
  • Height: 2.5 in
  • Width: 2.75 in

BAKERS PRIDE:

BKPM1024X M1024X

GARLAND:

227155 CK227155 GL227155

HOBART:

00-347961-00001 00-347961-1 347961-1 HOB00-347961-1 HOB347961-1

U-LINE:

5300-770 KX112-60

VULCAN HART:

111506-3 24146-2 411506-3 VH111506-3 VH24146-2 VH411506-3 VH5300-77K

Step1: Disconnect power and ensure griddle is cool.

Step2: Remove control panel and old thermostat.

Step3: Note wiring positions before disconnecting leads.

Step4: Mount new griddle thermostat bulb/capillary in same channel securely.

Step5: Reconnect wires to matching terminals.

Step6: Reassemble panel and restore power.

Step7: Test temperature range and calibration.

Step8: Before final use, confirm safety shutdown.

  • What maintenance is required for the Vulcan Hart 5300-77K Thermostat?

    Inspect and calibrate the griddle thermostat regularly to ensure accurate temperature control. Clean connections and remove grease buildup to prevent signal issues. Tighten electrical terminals and check wiring safety to avoid overheating or failure.

  • What are common issues with the Vulcan Hart 5300-77K Thermostat?

    • Inaccurate temperature readings due to sensor drift.
    • Thermostat sticking or failing to cycle heating elements.
    • Wiring or connection failures causing intermittent operation.
    • Unresponsive controls or calibration loss after heavy use.
