Dynamic Cooking Systems 55764-03 Thermostat W/Dial BJWA 3/16" X 8" Cap 36" 150-400°F

SKU: 55764-03 1-55764-03 Brand:
Dynamic Cooking Systems
Availability:
In Stock
(0)
$180.10 Price reduced from $277.50
Save $97.40
Have a Question? +1 (866) 863-0907

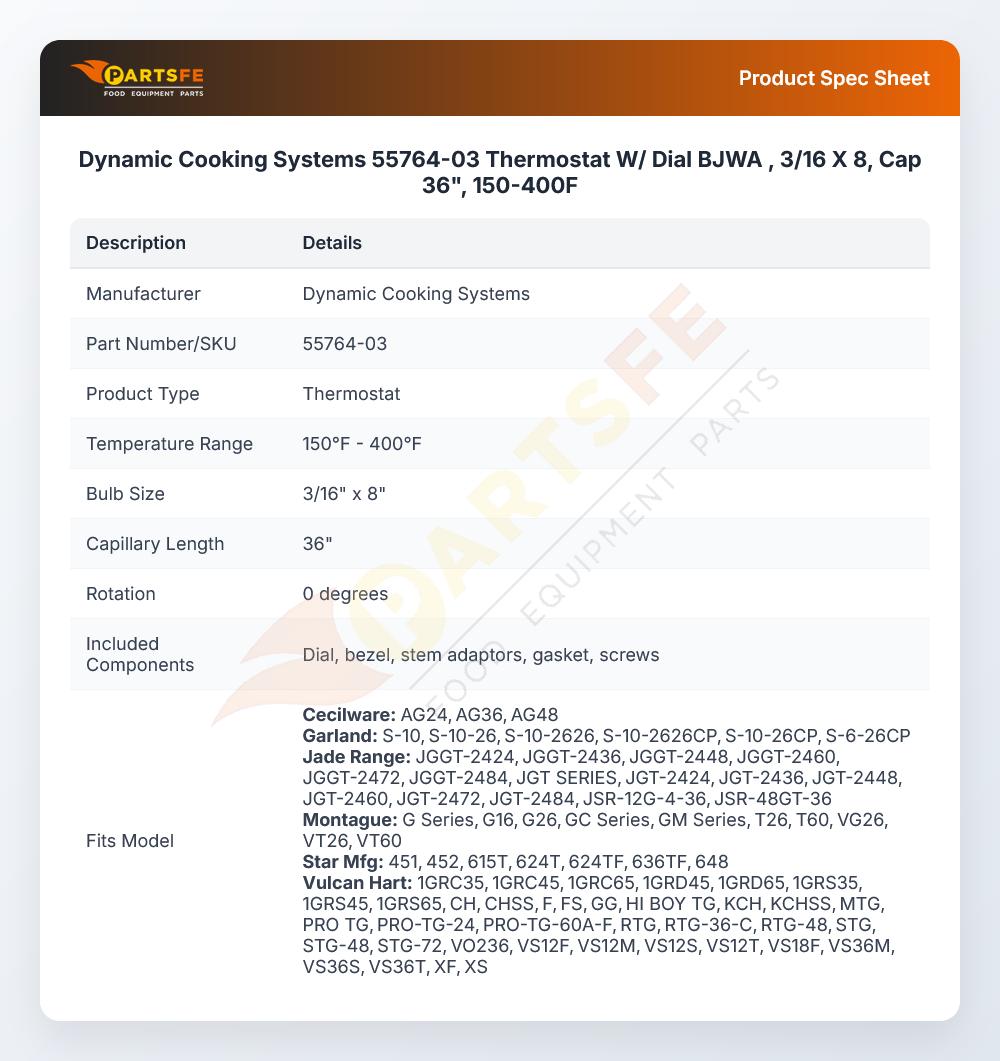

Specifications:

  • Viewed From Rear: See "Bj Outlet Positions"
  • W/ By-Pass Adj At Top & Gas Inlet Down
  • [ Bjwa Kit ] [ Temp 150-400 ] [ Bulb 3/16" X 8" ]
  • [ Cap 36" ][ Out 1/4" Fpt "A,B.C,D,"] [Rotation 0 Degrees ]

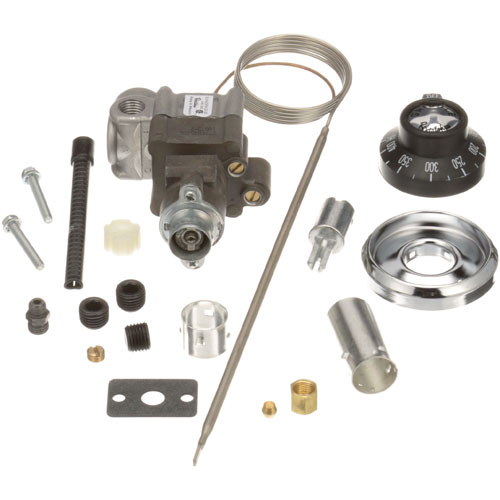

  • [Includes Dial & Bezel, Stem Adaptors, Gasket, Screws.
  • Dial = # 22-1036 Off-Lo-150-400-Hi ]
  • Wolf Griddle Dial # 22-1251 Off-Lo-150-400-Hi
  • Dynamic Cooking Systems Griddle
  • Cecilware Grill Before 1/86: Ag-(24,36,48).
  • Franklin Chef Grill Gh(33T,33T-7,43T,43T-7), Ghm(33T,43T).
  • Jade Series: Jsr
  • Montague Griddle
  • Southbend Griddle Series Sg

Description

The Dynamic Cooking Systems 55764-03 Thermostat W/Dial BJWA 3/16" X 8" Cap 36" is based on the concept of controlling the temperature of cooking components with the support of a dial-regulated system with the possibility of setting the temperature within the range of 150 to 400°F. The heating parts read the humidity and regulate the amount of electricity to ensure the desired setting. This element is placed to keep a close check on the internal temperature so that the system can maintain the same amount of heat in all parts of the cooking process and the dial is easy to adjust to different preparing requirements.

Dimensions:

  • Weight: 1.1 lbs
  • Length: 14 in
  • Height: 3.5 in
  • Width: 4.5 in

BLOOMFIELD:

2T-39282

CECILWARE:

GML032 GML032A GML032F L032 L032A L032F L032T

DYNAMIC COOKING SYSTEMS:

DCS55764-03

GARLAND:

227000 227000-1

GRINDMASTER:

L032A L032F L032T

HOBART:

00-418573-000G1 00-723257 00-723258 00-802116-00001 00-920028 13523 19362 2116 418573-000G1 418573-G1 713523 723257 723258 802116-00001 802116-1 920028

JADE RANGE:

460-101-000 46101 4610100000

MONTAGUE:

03384-7 3384-7 B-36 G-15 R99

STAR MFG:

2T-39281 2T-39282 2T-Y7159 2T-Z4293 59281 59282 9493 WS-59281 WS-59282 Y7159 Z4293

STERO:

STA2T-Y7159 STA2T-Z4293 STA9493 STAY7159 STAZ4293

U-LINE:

4350-028 4350-037

VULCAN HART:

00-418573-000G1 00-723257 00-723258 00-802116-00001 00-920028 13523 19362 2116 418573-000G1 418573-G1 713523 723257 723258 802116-00001 802116-1 920028

Step1: Shut off gas and electrical power completely and confirm the appliance is cool before starting.

Step2: Remove the control panel to access the existing thermostat and note all wire and capillary routing.

Step3: Carefully disconnect the old thermostat, including bulb and mounting hardware.

Step4: Install the new thermostat, securing the bulb in the correct sensing position inside the oven cavity.

Step5: Reconnect the capillary tube, dial assembly, and wiring exactly as the original configuration.

Step6: Restore power and gas, then test temperature range from for proper cycling and control.

  • What maintenance is required for the Dynamic Cooking Systems 55764-03 Thermostat?

    Regularly check the thermostat for accurate temperature response and ensure the capillary tube is intact and undamaged. Keep the dial and surrounding area clean from grease buildup. Proper maintenance helps maintain precise temperature control, prevents overheating, and ensures better equipment operation.

  • What are common issues with the Dynamic Cooking Systems 55764-03 Thermostat?

    • Inaccurate temperature readings.
    • Failure to regulate heat properly.
    • Damaged or kinked capillary tube.
    • Unresponsive or stuck dial.
    • Intermittent heating control issues.
