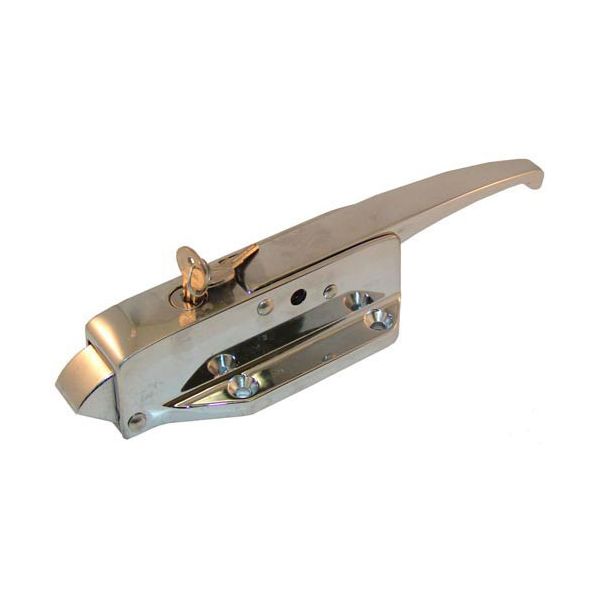

Kason 58CL5020 11" Polished Chrome Latch W/ Lock, 3" x 2" Mounting Hole Centers
Special Price $101.86 Regular Price $106.58
Out of stock
SKU
58CL5020
The Kason 58CL5020 Polished Chrome Latch with Lock is used to secure the doors with the help of a spring-loaded mechanism, which becomes active once the door is closed and an additional level of control is provided by the built-in lock that prevents unsafe access. The latch can be separated by turning the key or knob and the door opens easily. It is intended to be mounted on the surface of a commercial or industrial door using simple screws.
Manufacturer:
Dimensions
- Length: 2 In
- Width: 2.875 In
- Height: 11 In
- Weight: 2.63 lbs
Product Notes
- Latch With Lock, 11" Overall Od Latch. Polished Chrome.
- Has Hole For Inside Release
- Mtg Hole Centers 3-1/16" Lengthwise
- Mtg Hole Centers 2-1/16" Top To Bottom
- For Roller Strike Use #26-3303 1-3/4" To 2-1/2" Offset.
- Base W/3 Holes. Mount Hole Centers L To R 1-1/8"
- Top To Bottom Strike Mount Hole Centers 2-3/16"
- For Solid Strike Use # 26-1896 1-1/8" To 1-5/8" Offst.
- Strike Base W/4 Holes.
- For Inside Safety Release Use # 22-1529
- Series 58, 77
