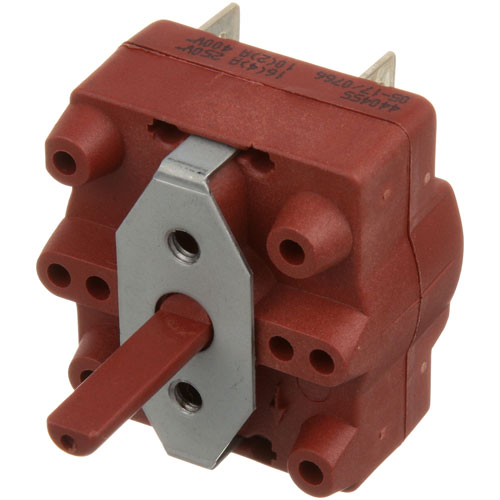

Duke 600541 Oven 3-position Rotary Switch W/6 Term D Stem 20A 120-240V

A multi-position rotary heat control switch is used in commercial ovens to manage temperature levels by directing electrical current through different heating circuits. This 3-heat switch operates on 20A at 120–240V and uses a 6-terminal configuration to control multiple heat settings inside the cooking system, allowing operators to adjust oven output based on cooking requirements. The D-shaped stem with a .150" flat-down design ensures proper alignment with compatible control knobs for accurate switching. By rotating the control dial, the switch changes electrical pathways that activate different heating stages, helping maintain consistent cooking performance across low, medium, and high heat settings. It is commonly used in commercial ovens and kettles where reliable temperature control is essential for steady operation. When an older switch becomes worn or fails, replacing it helps restore proper heat selection and prevents uneven cooking or loss of temperature control during use.

Equipment Compatibility:
Heat control use for Duke rotary switches includes commercial ovens, baking ovens, and steam kettles used in restaurants and food service kitchens. This Oven 3-Heat Switch 600541 is compatible with commercial equipment from leading brands such as Duke, Tomlinson, Glenray, and others, where proper heat switching is needed for correct operation.

Brand Compatibility:
This rotary switch serves as a replacement for multiple part numbers from leading brands such as Duke, Tomlinson, Glenray, and others. Full cross-reference details are provided separately for complete matching information.

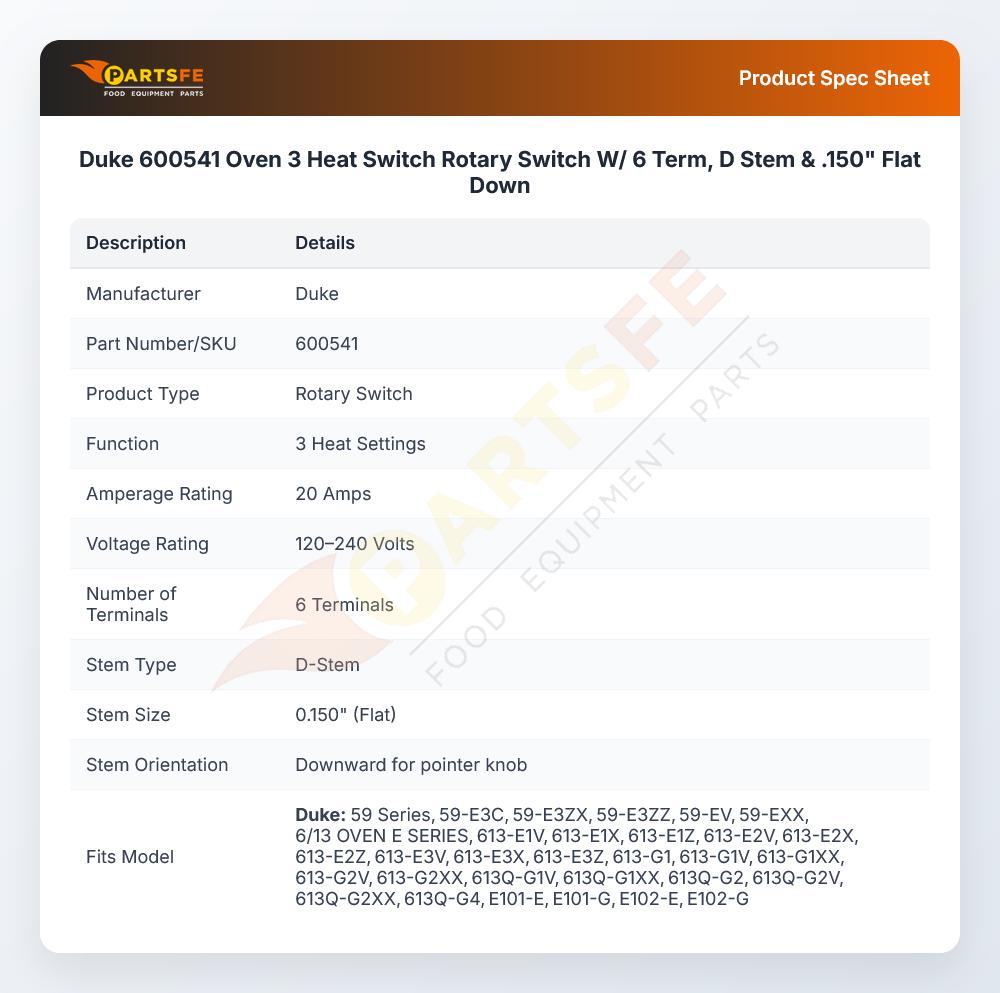

Product Specifications:
Product Type: Oven Rotary Heat Switch
Manufacturer: Duke
SKU: 600541
Electrical Rating: 20A, 120–240V
Terminals: 6
Heat Settings: 3 (Low / Medium / High)
Stem Type: D-shaped (.150" flat)
Compatibility: Duke 6/13 E-Series ovens

Key Features:

• The 20A, 120–240V rating allows the switch to handle different oven power levels safely and reliably.
• The 6-terminal design helps control multiple heating paths so the oven can change between three heat levels.
• The D-shaped stem ensures the control knob fits properly and turns smoothly without slipping.
• The 3-heat function makes it easy to adjust cooking temperature for different types of food.

Users commonly report improved temperature responsiveness and stable heat control after switch replacement installation

Step1: Turn off the power to the oven.

Step2: Remove the old rotary switch from the panel.

Step3: Disconnect all wiring carefully.

Step4: Inspect the panel for damage or corrosion.

Step5: Install the new rotary switch in the same panel cutout.

Step6: Reconnect wiring according to the diagram.

Step7: Test rotation to ensure smooth switching.

Step8: Replace the panel cover and verify appliance operation.

• What maintenance is required for the Duke 600541 Rotary Switch?

  Regularly inspect the oven rotary switch for loose connections or wear. Clean contacts with a suitable electronic cleaner to prevent oxidation. Ensure smooth rotation without excessive force. Proper care maintains accurate switching and prevents operational errors.

• What are the common issues with the Duke 600541 Rotary Switch?

  • Worn or loose contacts are causing intermittent operation.
  • Difficulty rotating due to dirt or corrosion.
  • Electrical arcing or overheating.
  • Mechanical breakage of the knob or internal components.
