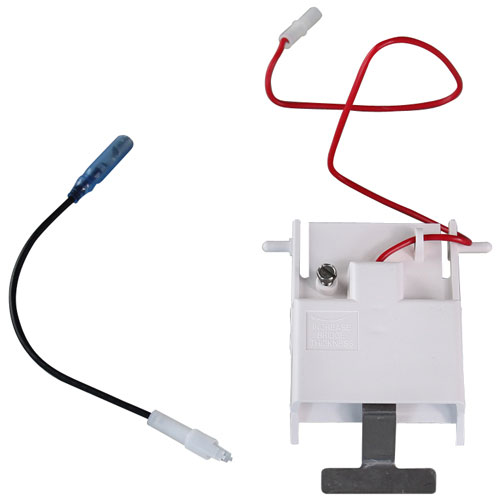

Manitowoc 76-0160-3 Ice Thickness Probe

SKU: 76-0160-3 1-76-0160-3 Brand:
Manitowoc
Availability:
In Stock
(0)
$64.63 Price reduced from $121.70
Save $57.07
Have a Question? +1 (866) 863-0907

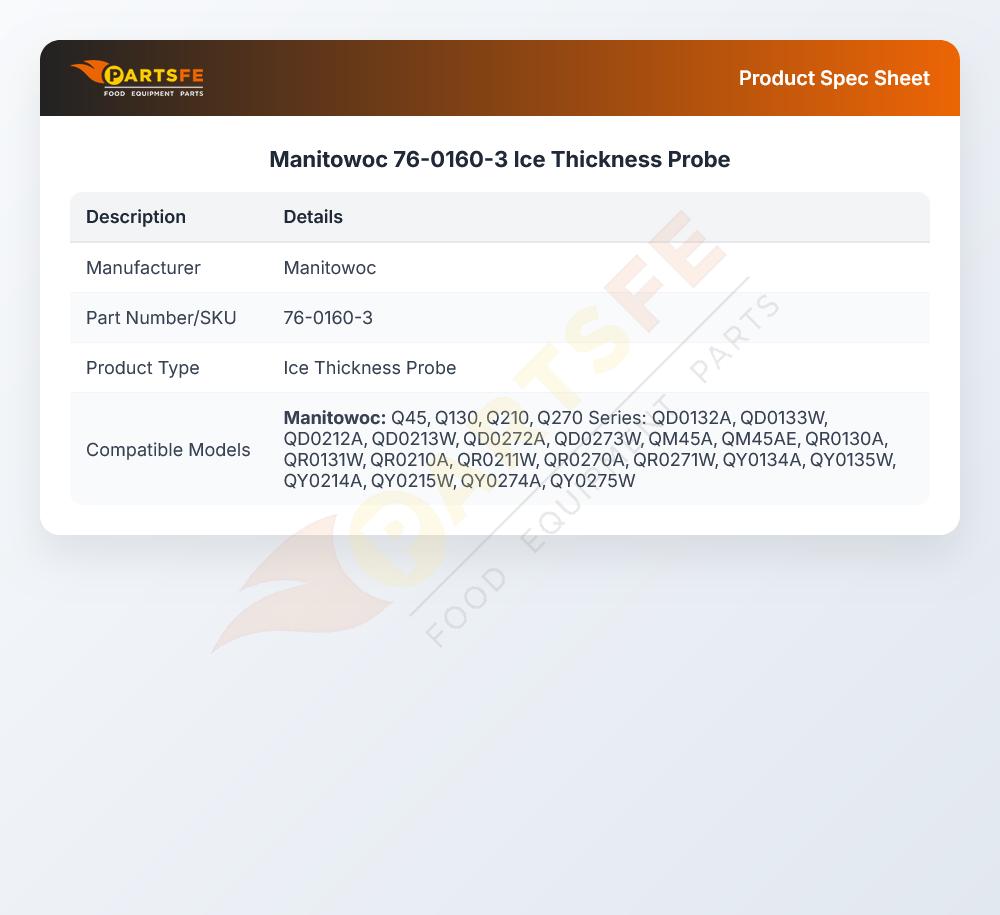

Specifications:

  • Ice Thickness Probe
  • Manitowoc Q Undercounter, Q45,130,210,270
  • Qd0132A, Qd0133W, Qd0212A, Qd0213W, Qd0272A, Qd0273W,
  • Qm45A,Qm45Ae, Qr0130A, Qr0131W, Qr0210A, Qr0211W, Qr0270A,
  • Qr0271W, Qy0134A, Qy0135W, Qy0214A, Qy0215W, Qy0274A,
  • Qy0275W

Description

The Manitowoc 76-0160-3 Ice Thickness Probe is used to measure the density of ice in commercial appliances by passing electrical impulses through the ice to determine the levels of thickness. It constantly monitors the accumulation of ice and reports the values to the control system of the machine to control the freezing process. The probe is constructed to be installed in the ice storage bin and fits snugly into the machine to ensure that it always comes in contact with forming ice without being obtrusive to the normal operations.

Dimensions:

  • Weight: 0.15 lbs
  • Length: 2.38 in
  • Height: 3.13 in
  • Width: 0.5 in

MANITOWOC:

7601603 MAN7601603

Step1: Disconnect power and shut water supply before accessing evaporator area.

Step2: Remove front panel and locate existing ice thickness probe bracket assembly.

Step3: Carefully disconnect probe wires, noting positions for correct reconnection later.

Step4: Unscrew mounting hardware and remove old probe without damaging evaporator surface.

Step5: Position new probe, secure bracket, and reconnect wires to original terminals.

Step6: Restore panels, power, and water, then test ice formation and thickness.

  • What maintenance is required for the Manitowoc 76-0160-3 Probe?

    Clean probe regularly to remove mineral buildup affecting sensing accuracy. Inspect wiring connections for corrosion or looseness to prevent signal interruptions. Verify alignment with ice formation area and recalibrate when readings drift.

  • What are common issues with the Manitowoc 76-0160-3 Probe?

    • Inaccurate ice thickness readings due to mineral scaling.
    • Intermittent signal loss from loose or corroded wiring.
    • Misalignment causing incorrect harvest cycle triggering.
    • Sensor corrosion leading to inconsistent probe response.
    • Electrical faults preventing proper ice detection.
