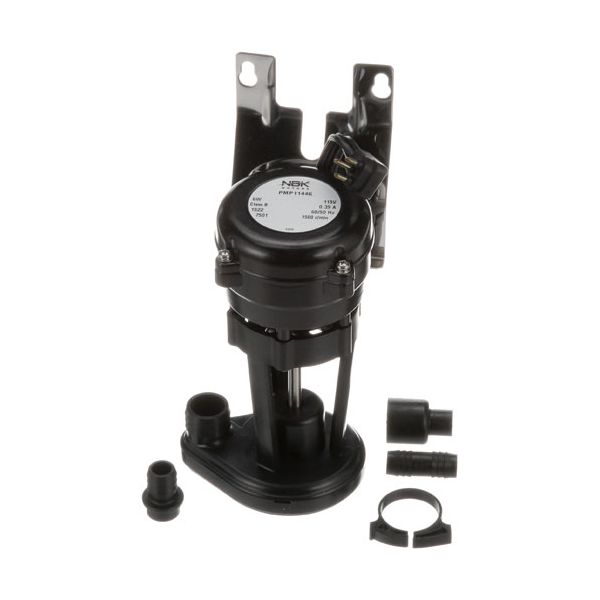

Manitowoc 76-2306-3 Ice Machine Water Pump/Motor Assembly 115V & 5/8" OD.
Specifications:
- Water Pump/Motor Assembly, 115V, 50/60Hz, 6W,.36Amp,
- 1" & 5/8" Od. Connections For Hose.
- Manitowoc, All 115V Models
- Ac0340A, Ac0350W, Ad0152A, Ad0153W, Ad0202A, Ad0203W,
- Ad0402A, Ad0403W, Ad0602A, Ad0603W, Ar0150A, Ar0151W,
- Ar0200A, Ar0201W, Ar0400A, Ar0401W, Ar0600A, Ar0601W,
- Ay0204A, Ay0205W, Ay0404A, Ay0405W, Ay0604A, Ay0605W,
- Bd0152A, Bd0153W, Bd0202A, Bd0203W, Bd0252A, Bd0253W,
- Bd0322A, Bd0323W, Bd0422A, Bd0423W, Bd0452A, Bd0453W,
- Bd0492N, Br0150A, Br0151W, Br0200A, Br0201W, Br0250A,
- Br0251W, Br0320A, Br0321W, Br0420A, Br0421W, Br0450A,
- Br0451W, Br0490N, Cd0202A, Cd0203W, Cd0402A, Cr0200A,
- Cr0201W, Cr0400A, Cr0401W, Cvd1375, Cvd1475, Cvd1476,
- Cvd1875, Cvd2075, Cy0204A, Cy0205W, Cy0403W, Cy0404A,
- Cy0405W, Gd-0152A, Gd-0153W, Gd-0202A, Gd-0203W, Gd-0402A,
Description
Dimensions:
- Weight: 3.25 lbs
- Length: 10.75 in
- Height: 6 in
- Width: 5.25 in
Product Overview:
Circulates water through compatible Manitowoc commercial ice machines. The Manitowoc 76-2306-3 Ice Machine Water Pump/Motor Assembly is an OEM pump and motor component for the internal water circuit. The assembly has a listed 115V electrical rating and accommodates 5/8-inch OD hose connections. It is associated with commercial ice machine applications requiring this specific pump/motor configuration.
Pump Operation:
The motor converts electrical input into rotational movement at the pump drive. This rotation actuates the pumping mechanism, creating the displacement needed to draw and discharge water through connected passages. The mechanical action occurs through the motor-driven pump mechanism rather than electronic control circuitry.
Ice Production Water Distribution:
During the applicable production stage, the assembly transfers water between sections of the machine’s internal water circuit. The resulting movement directs the water supply toward the area involved in ice formation. This places the component within the fluid-distribution portion of the equipment, while refrigeration and electronic control components perform their respective functions.
Replacement Guidelines:
Replacement may be necessary when the assembly operates intermittently, stops functioning, or no longer provides the required water movement during operation. Before purchasing, verify the Manufacturer: Manitowoc and 76-2306-3 against the equipment model, existing component identification, electrical requirements, hose connections, and applicable manufacturer parts documentation.
Common Failure Symptoms:
- Reduced water movement during operation.
- Water flow stops during the production cycle.
- Motor operation becomes intermittent or fails to start.
- Unusual humming or operating noise develops.
- Excessive vibration occurs during operation.
- Leakage appears around the pump/motor assembly.
- Ice formation becomes uneven.
Equipment Compatibility:
The Manitowoc 76-2306-3 Ice Machine Water Pump/Motor Assembly is an OEM component intended for compatible Manitowoc commercial ice machine applications. The equipment model and existing component identification should correspond with applicable manufacturer parts information. The specified voltage and hose connection requirements should also match the intended application.
Technical Specifications:
Brand: Manitowoc
Part Number: 76-2306-3
Product Type: Water Pump/Motor Assembly
Voltage: 115V
Hose Connections: 5/8-inch OD
Application: Commercial Ice Machine
MANITOWOC:
Step1: Disconnect the ice machine power and shut off the incoming water supply first.
Step2: Locate the pump assembly inside the unit compartment.
Step3: Detach hoses and electrical connections from the old unit.
Step4: Remove the existing pump and motor assembly.
Step5: Install the new assembly in the same orientation.
Step6: Reconnect hoses and wiring securely.
Step7: Restore water supply and electrical power.
Step8: Check for leaks and smooth operation.
-
What maintenance is required for the Manitowoc 76-2306-3 Water Pump/Motor Assembly?
Regularly inspect the ice machine pump and motor for leaks, corrosion, and loose connections. Clean debris from the impeller, check electrical wiring, and ensure proper lubrication if applicable. Always disconnect power before servicing to prevent damage.
-
What are common issues with the Manitowoc 76-2306-3 Water Pump/Motor Assembly?
- Reduced water flow or pressure.
- Overheating of the motor.
- Leaks from seals or fittings.
- Noise or vibration from worn bearings.
