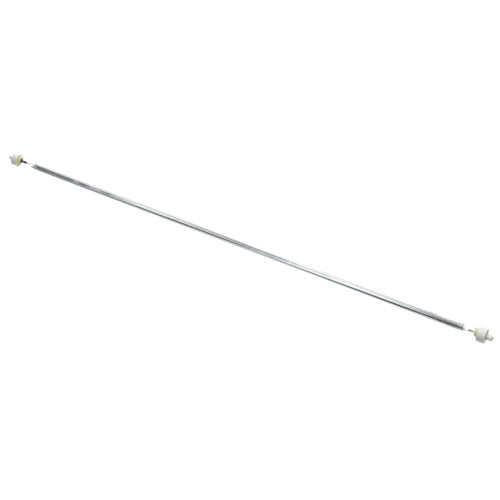

Hobart 825331 Quartz Element 29-1/8" 1800W 208V

Radiant Heat Generation:
Generates heat through the energized quartz element to provide direct radiant heating for the applicable cooking or warming system. The 29-1/8-inch element length provides the specified heating span for equipment.

Thermal Cycling:
The element undergoes repeated heating and cooling cycles during normal equipment operation. Continuous thermal cycling can subject the quartz assembly and electrical connections to temperature-related stress, making proper installation and handling important for reliable service.

Replacement Guidelines:
Replacement of the Quartz Element if it is cracked, broken, burned, deformed, or no longer produces the required heat output. The part number 825331, 1800W power rating, 29-1/8" length, and 208V voltage rating should be verified before replacement to ensure the correct quartz element is selected. Replace the element if deterioration affects heat generation, electrical connection, physical integrity, or normal equipment operation.

Common Failure Symptoms:

• Equipment does not reach the expected cooking temperature.
• Reduced or inconsistent heat output.
• Uneven heating across the cooking area.
• Longer heating cycles.
• Visible cracks or breaks in the quartz element.
• Damaged or failed electrical connections.

Equipment Compatibility:
The Hobart 825331 Quartz Heating Element is intended for compatible Hobart commercial cooking equipment requiring an 1800W, 208V, 29-1/8" quartz element configuration. Verify the equipment model and component specifications before purchase.

Technical Specifications:
Brand: Hobart
Part Number: 825331
Component Name: Quartz Heating Element
Power Rating: 1800W
Voltage: 208V

Step1: Turn off the power to the appliance and allow it to cool.

Step2: Remove the access panel to expose the old quartz element.

Step3: Disconnect electrical connections from the old element.

Step4: Remove mounting clips or screws and take out the element.

Step5: Install the new element and secure it with screws or clips.

Step6: Reconnect wiring, restore power, and test heating.

• What maintenance is required for the Hobart 825331 Quartz Element?

  Before cleaning, always turn off the power and let the element cool completely to prevent burns. Wipe the surface with a soft, dry cloth to remove dust or grease that can impair performance. Check wiring and terminals for signs of corrosion or looseness. Routine inspection ensures efficient heating and prevents electrical hazards.

• What are the common issues with the Hobart 825331 Quartz Element?

  • Element failing to heat or producing uneven heat.
  • Cracks or breakage in the quartz tube.
  • Loose electrical connections causing intermittent operation.
  • Burn marks or discoloration indicating overheating.

• What type of equipment uses the Hobart 825331 quartz element?

  The Hobart 825331 is a quartz heating element intended for compatible Hobart commercial equipment that uses this specific element configuration.

• What does the quartz construction indicate on the Hobart 825331?

  The quartz designation identifies the construction type of the heating element and distinguishes it from other heating-element designs.

• What happens when the Hobart 825331 receives electrical power?

  When energized, the element converts electrical energy into heat for the equipment's designated heating area.

• How can buyers identify the correct Hobart 825331 element?

  Buyers should compare the equipment model, element configuration, and existing part information to confirm that the Hobart 825331 matches the intended application.

• What should be checked when inspecting the Hobart 825331 quartz element?

  The element should be checked for visible breaks, damage, or other physical abnormalities that could affect its heating operation.
