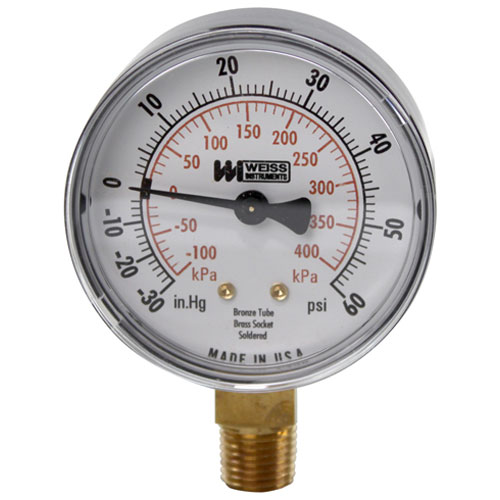

Groen 84208 Jacketed Kettle Compound Gauge 1/4" MPT Bottom 2-1/2" DIA

SKU: 84208 1-84208 Brand:
Groen
Availability:
In Stock
(0)
$51.13 Price reduced from $73.03
Save $21.90
Have a Question? +1 (866) 863-0907

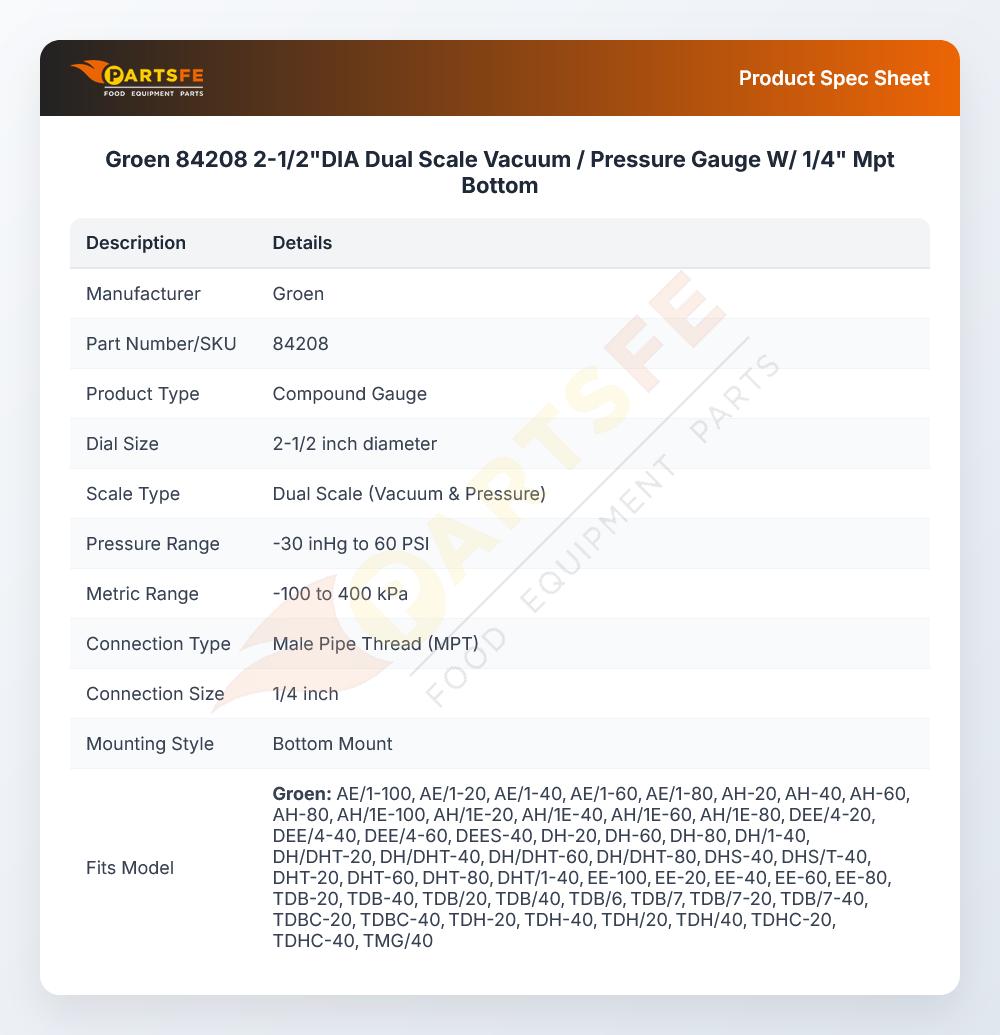

Specifications:

  • Dual Scale Vacuum / Pressure Gauge, Size 2-1/2"Dia
  • [Range -30Vac To 60Psi] [ -100 To 400 Kpa ]
  • Mount 1/4" Mpt Bottom
  • Groen Kettle Dah, Dee, Dh, Hh, Tdb, Tdh

Description

The Groen 84208 Jacketed Kettle Compound Gauge W/1/4" MPT Bottom 2-1/2" DIA measures both the vacuum and the pressure by applying the force exerted by the system on the bottom connection, which in turn transfers the force to the internal mechanism, which moves a pointer along calibrated scales. These two scales have the vacuum and pressure readings on the same dial of 2-1/2 inch diameter so that they can be easily referred to. It is attached to a specific monitoring port of compatible steam, pressure or vacuum systems.

Dimensions:

  • Weight: 0.4 lbs
  • Length: 3.25 in
  • Height: 1.25 in
  • Width: 2.75 in

GROEN:

001549 001594 084208 1549 1594 GR001549 GR001594 GR084208 GR1549 GR1594 GR84208 Z001594 Z084208

Step1: Turn off equipment and release all pressure before starting.

Step2: Locate the 1/4" MPT threaded port on the system.

Step3: Apply thread sealant or Teflon tape to the gauge threads.

Step4: Screw the gauge into the port and tighten securely with a wrench.

Step5: Ensure proper orientation for easy reading.

Step6: Restore power and check for leaks or irregular readings.

  • What maintenance is required for the Groen 84208 Vacuum/Pressure Gauge?

    Inspect the gauge regularly for needle stability, cracks, or glass fogging. Ensure the connection remains tightly sealed to prevent leaks. Keep the dial face clean and free from grease or debris for clear readings. Avoid excessive vibration to maintain measurement accuracy and better operation.

  • What are common issues with the Groen 84208 Vacuum/Pressure Gauge?

    • Needle fluctuation or stuck readings under pressure changes.
    • Glass fogging or moisture inside the dial.
    • Thread leakage at connection.
    • Loss of calibration causing inaccurate pressure or vacuum readings.
