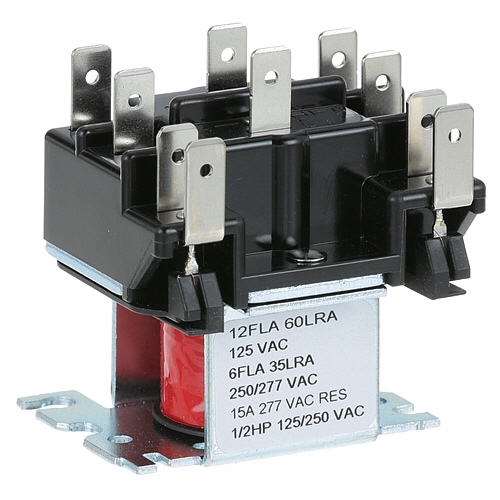

White Rodgers 90-342 Relay 12A 208/240V

SKU: 90-342 1-90-342 Brand:
White Rodgers
Availability:
In Stock
(0)
$159.59 Price reduced from $245.91
Save $86.32
Have a Question? +1 (866) 863-0907

Specifications:

  • Relay, 208/240V Coil
  • Star Wells Oven Oc-1, Oc-2Hg, Oc-4, Oc-4Hc,
  • Oc-4Tc, Wv-2Hfg,
  • Wv-2Hfgrw, Wv-2Hfgrwt, Wv-2Hg, Wv-2Hsg, Wv-2Hsgrw,
  • Wv-2Hsgrwt, Wv-4Hf, Wv-4Hfrw, Wv-4Hfrwt, Wv-4Hs, Wv-4Hsrw,
  • Wv-4Hsrwt, Wv-Fgrw, Wvf-886, Wvfg, Wvg-136, Wvg-136Rw,
  • Wvg-136Rwt, Wvoc-2Hfg, Wvoc-2Hsg, Wvoc-4Hf, Wvoc-4Hs,
  • Wvoc-G136

Description

The White Rodgers 90-342 Relay changes the electrical path in the equipment circuit by using an internal contact mechanism that responds to control input. Set up in a commercial system, it transfers current between connected terminals while maintaining separation between the signal side and the powered section. The 12A rating corresponds to the current capacity associated with the relay while the 208/240V specification relates to the electrical supply range supported by the part. Movement of the internal contacts creates the required switching transition, allowing the attached circuit sections to receive electrical control according to the selected condition.

Dimensions:

  • Weight: 0.39 lbs
  • Length: 3 in
  • Height: 2 in
  • Width: 2.5 in

BLOOMFIELD:

2E-43880

STAR MFG:

2E-43880 63880 WS-63880

Step1: Power off the appliance at the breaker.

Step2: Remove the control panel to access the existing relay.

Step3: Disconnect all wiring from the old relay, noting their positions.

Step4: Unscrew and remove the faulty relay from its mount.

Step5: Install the new relay and reconnect wiring securely.

Step6: Restore power and test the circuit for proper operation.

  • What maintenance is required for the White Rodgers 90-342 Relay?

    Periodically inspect the relay for secure mounting and clean, corrosion-free contacts. Test the relay operation under normal voltage to ensure proper switching. Check wiring connections for tightness and signs of wear to maintain reliable electrical control.

  • What are common issues with the White Rodgers 90-342 Relay?

    • Relay failing to switch properly.
    • Intermittent electrical connection.
    • Excessive heat during operation.
    • Clicking without activating the circuit.
