Hobart 918460 Water Pressure Gauge 0-60 PSI

SKU: 918460 1-918460 Brand:
Hobart
Availability:
In Stock
(0)
$46.79 Price reduced from $79.41
Save $32.62
Have a Question? +1 (866) 863-0907

Specifications:

  • Material: Plastic
  • Height: 3 1/4"
  • Outer Diameter: 2 3/8" | 60 mm
  • National Pipe Thread: 1/4" Bottom Mount
  • Nsf Certified: Y
  • Pounds Per Square Inch: 0-60 Psi (0-400 Kpa)

Description

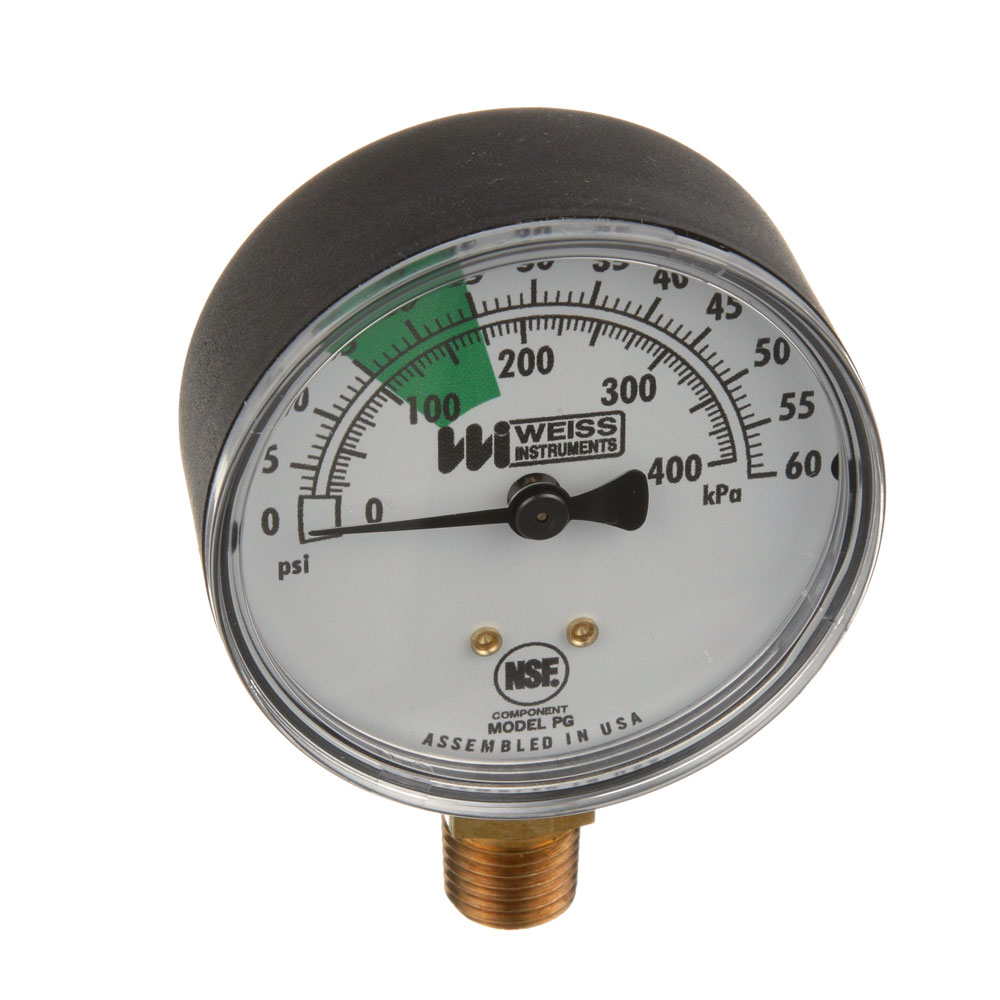

The Hobart Corporation 918460 Water Pressure Gauge 0-60 PSI is used to measure the incoming water pressure in compatible commercial cooking appliances. It gives a visual account of the level of system pressure to facilitate the correct functioning of appliances that require water. The gauge is installed on the water supply line or internal plumbing assembly. Proper pressure helps in proper rinsing, filling and cleaning of cycles. This element is a significant diagnostic and operational one, as it assists in checking that the equipment receives the water pressure within the required working pressure limits.

Dimensions:

  • Weight: 0.22 lbs
  • Length: 2.5 in
  • Height: 3.25 in
  • Width: 1.25 in

HOBART:

00-349665-00001 00-918460 277915 349665-1 HOB00-918460 HOB918460

VULCAN HART:

00-918460 VH918460

Step1: Turn off water supply and depressurize the line completely before starting.

Step2: Wrap tape on gauge threads for a secure leak-proof seal.

Step3: Screw gauge into port or adapter by hand, then tighten carefully with wrench.

Step4: Ensure gauge face is upright and clearly visible for easy reading.

Step5: Restore water supply slowly and check thoroughly for leaks or pressure issues.

  • What maintenance is required for the Hobart 918460 Water Pressure Gauge?

    Ensure regular calibration checks to maintain accurate pressure readings. Inspect fittings for leaks and tighten if needed. Keep the gauge face clean and dry. Protect from vibration and pressure spikes to preserve consistent performance.

  • What are common issues with the Hobart 918460 Water Pressure Gauge?

    • Fluctuating or inaccurate pressure readings.
    • Needle sticking or delayed movement.
    • Moisture buildup inside gauge face.
    • Loose fittings causing pressure leaks.
    • Wear from continuous vibration affecting accuracy.
