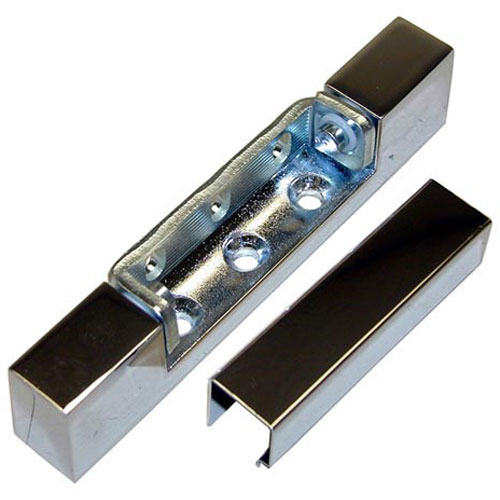

Vulcan Hart 960616 Edgemount Door Hinge W/7/8" Screw Center

SKU: 960616 1-960616 Brand:
Vulcan Hart
Availability:
In Stock
(1)
$15.60 Price reduced from $20.25
Save $4.65
Have a Question? +1 (866) 863-0907

Specifications:

  • Edgemount Hinge
  • Offset 7/8"
  • Length 5"
  • Width 11/16"
  • Screw Centers 7/8"
  • Outside Screw Centers 1-3/4"
  • Door Screw Centers 13/16"
  • Series: 213, 214, R42

Description

The Vulcan Hart 960616 Edgemount Door Hinge is a replacement part, a 7/8" screw center door hinge, to be used on compatible commercial cooking systems, ovens and ranges. It provides a point by which the appliance door can swing open and close without any difficulty and also keep the door aligned well with the main frame when it is in normal operation. The hinge is installed along the door edge with the required space between the screws and it is connected to the door and cabinet framework to allow it to swing in a balanced manner.

Dimensions:

  • Weight: 0.5 lbs
  • Length: 5 in
  • Height: 5 in
  • Width: 1 in

CHG:

R42-2840

FOOD WARMING EQUIPMENT:

FWEHNG 214 HNG 214 HNG-214 HNG214

HOBART:

00-851800-00018 851800-00018 851800-18

VULCAN HART:

00-851800-00018 00-960616 851800-00018 851800-18

WITTCO:

00-960616 WP-111

Step1: Turn off equipment and ensure the surface is cool before starting.

Step2: Remove the old hinge by unscrewing mounting hardware.

Step3: Align the new hinge with existing mounting holes.

Step4: Insert and tighten the center screw securely.

Step5: Attach the door or panel to the hinge.

Step6: Check alignment and adjust if needed.

Step7: Test movement for smooth operation and secure fit.

  • What maintenance is required for the Vulcan Hart 960616 Edgemount Hinge?

    Clean the hinge regularly to remove grease, dirt, and food debris that can affect movement. Pivot points with a food-safe lubricant to ensure smooth operation. Inspect for looseness, wear, or corrosion and tighten mounting hardware as needed. Proper upkeep helps maintain door alignment and secure operation.

  • What are common issues with the Vulcan Hart 960616 Edgemount Hinge?

    • Stiffness or restricted movement due to grease buildup.
    • Loosening of mounting screws over time.
    • Misalignment causing improper door closing.
    • Wear on pivot points leading to uneven motion.
