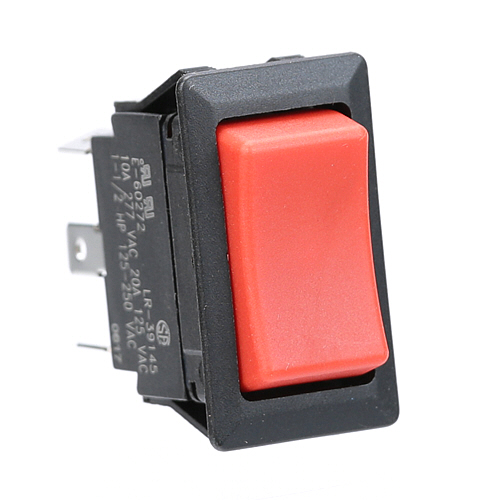

American Range A10086 Rocker Switch 3-Position

SKU: A10086 1-A10086 Brand:
American Range
Availability:
Out of Stock
(0)
$31.50 Price reduced from $50.00
Save $18.50
Have a Question? +1 (866) 863-0907

Description

The American Range A10086 Rocker Switch 3-position will change the internal contacts to either one of the three electrical states and send the current to the preferred circuit. This is a single-outlet switch fitting the cutout of the control panel of compatible kitchen equipment, on which it fits flush and is connected to the wiring harness of the appliance. It identifies settings on the rocker that make it easier to determine what settings have been selected, and it is designed in a way that fits the standard panel configurations.

Dimensions:

  • Weight: 0.07 lbs
  • Length: 1.88 in
  • Height: 0.94 in
  • Width: 1.75 in
Manufacturer Name: American Range
Product Number: A10086
OEM Part Number: A10086
Product Description: Switch, Rocker, 3-Pos
Similar Models:A10009 - American-Range
Dimensions:
Length:1.875in/4.76cm
Width:1.75in/4.44cm
Height:0.9375in/2.38cm
Weight:0.07lbs/31.75g

Choose the best Commercial kitchen & Restaurant equipment parts and supplies from PartsFe!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at 866-863-0907 or contact@partsfe.com

Step1: Turn off power at breaker and check no voltage with tester and lockout/tagout if available

Step2: Remove panel and disconnect old switch wiring, noting terminal positions for correct reconnection

Step3: Connect wires to new rocker switch terminals as labeled, ensure tight connections

Step4: Secure switch into mounting slot and ensure firm fit, check alignment before tightening

Step5: Reassemble panel, restore power, test all three positions carefully, avoid touching live terminals

  • What maintenance is required for the American Range A10086 Rocker Switch?

    Inspect the rocker switch periodically for smooth operation and secure mounting. Keep the surface clean and free from grease or moisture that may affect electrical contact. Ensure wiring terminals remain tight and undamaged. Test all switch positions regularly for proper functionality.

  • What are common issues with the American Range A10086 Rocker Switch?

    • Switch not responding in all positions.
    • Intermittent power connection.
    • Loose or worn internal contacts.
    • Difficulty toggling between settings.
