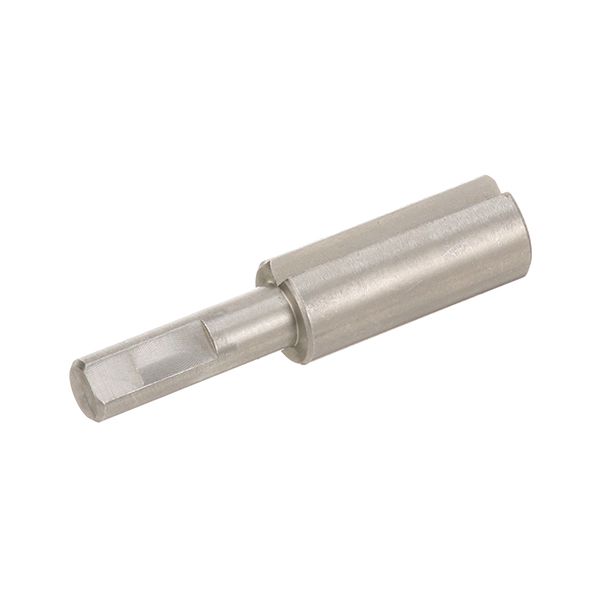

Middleby Marshall 35000-1013 Oven Drive Shaft Adapter 200/310/60

SKU: 35000-1013 1-35000-1013 Brand:
Middleby Marshall
Availability:
In Stock
(0)
$60.79 Price reduced from $109.61
Save $48.82
Have a Question? +1 (866) 863-0907

Specifications:

  • Drive Shaft Adapter, S/S,
  • Non-Magnetic, .622" Dia X 1.445" L And .375" Dia X 1.245" L
  • And 2.690" Oal, Looking At Small End Flat Is 45 Deg Cw
  • From Notch In Large End.
  • Part Is Included In Drive Sprocket Assembly # 26-2712.
  • Middleby Marshall
  • Oven Ps200-R68, Ps220Fs-R68, Ps224-R68, Ps310, Ps360,
  • Ps360Wb70, Ps570 Single Belt

Description

The Middleby Marshall 35000-1013 Drive Shaft Adapter is a high-precision part that is used to provides a smooth and efficient transfer of motion between compatible conveyor ovens. This adaptor links the motor of the oven with the conveyor drive shaft to allow the constant movement of the belt to produce even cooking. Designed to be accuracy, it is resistant to high temperatures and mechanical loads of constant work. This drive shaft adapter is compatible with certain models of ovens that run at 200/310/60 and is ensuring consistent conveyor operation, minimizing downtime, and ensuring optimal performance in commercial kitchens.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 2.75 in
  • Height: 0.75 in
  • Width: 0.75 in

Step1: Disconnect oven power and allow components to cool completely for safety.

Step2: Remove access panel and locate the existing drive shaft assembly.

Step3: Loosen set screws and carefully detach old adapter.

Step4: Align new adapter on shaft, ensuring proper fit and orientation.

Step5: Tighten screws securely to manufacturer torque specs.

Step6: Reassemble panel and restore power, test operation for smooth rotation.

  • What maintenance is required for the Middleby Marshall 35000-1013 Drive Shaft Adapter?

    Inspect the drive shaft adapter regularly for wear, cracks, or misalignment during oven operation. Clean grease and debris buildup to ensure smooth mechanical connection and prevent slippage. Tighten fittings securely and check for proper shaft engagement. Regular inspection maintains stable oven drive performance and reduces operational strain.

  • What are common issues with the Middleby Marshall 35000-1013 Drive Shaft Adapter?

    • Wear on coupling surfaces causing slipping or reduced drive efficiency.
    • Misalignment leading to vibration or uneven oven conveyor movement.
    • Cracks or deformation under continuous mechanical load stress.
    • Loose fitting resulting in inconsistent shaft engagement during operation.
