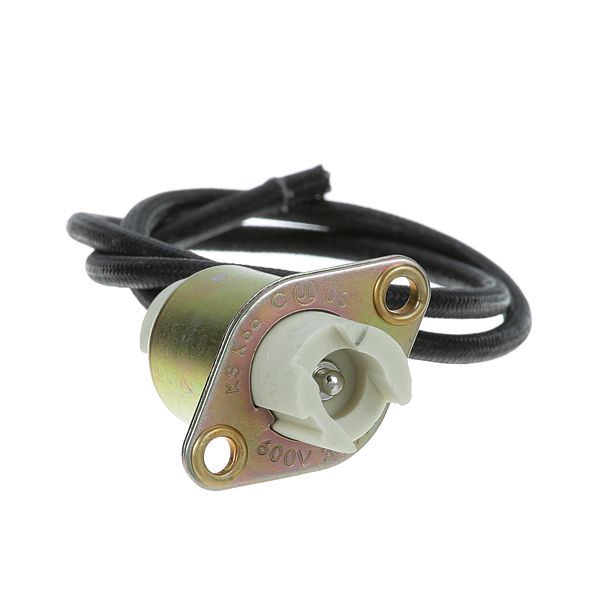

APW AS-3100801 Snap-In Element Socket 7/8" DIA Panel Hole 16" Wire

Be the first to review this product

Special Price $60.56 Regular Price $98.21

In stock

SKU

AS-3100801

Categories: Other Categories, Additional Parts, General Parts

Manufacturer:

The APW AS-3100801 Snap-In Element Socket allows the safe insertion and connection of heating elements using a strong electrical connection. It works based on receiving element terminals in the 7/8" panel hole and transferring electricity through the 16" wire. This socket is mounted in units that are compatible with the designated panel place. It is designed in such a way that it retains the element at all times and provides the element with appropriate electrical contact to enable normal heating.

Dimensions

Length: 1.5 In
Width: 1 In
Height: 18.5 In
Weight: 0.1 lbs

Product Notes

Socket For Snap-In Elements, For 7/8" Dia Panel Hole.
#14 Wire 16" Long,
7/8" Long Metal Socket ( .834" Dia Od ),
W/O Collar # 26-2738, Aluminum Collar 1" Od

Replaces Parts

APW WYOTT:

-3100801, 31008-01, 3100801, APW31008-01, AS-3100801

CLEVELAND:

-108210, 108210

HOBART:

00-825098, 30001, 825098, 825818

LANG:

-2E-31602-01, -31602-01, 200409, 2E-31602-01, 31602-01, LG200409, LG31602-01

LINCOLN:

-000672SP, 000672SP

MERCO:

-000672, -000672SP, 000672, 000672SP, 672, 672SP, MER672, MER672SP

STAR MFG:

-200409, -2E-200409, -2E-31602-01, 200409, 2E-200409, 2E-31602-01, 5950, Z4472

STERO:

STAZ4472

VULCAN HART:

-00-825098, -30001, -825098, -825818, 00-2509800, 00-825098, 2509800, 30001, 825098, 825818, VH00-2509800, VH00-825098, VH2509800, VH825098

Reviews

Write Your Own Review

FAQS

Customer Questions

What maintenance is required for the APW AS-3100801 Element Socket?

Inspect the socket for secure seating in the panel and ensure wiring remains tight and properly insulated. Keep contacts clean from carbon buildup. Verify stable electrical connection and consistent element performance during repeated heating cycles without arcing or overheating.

What are common issues with the APW AS-3100801 Element Socket?

Loose electrical connection.
Contact overheating occurring.
Socket loosening in panel.
Arcing at terminals.
Element not energizing.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off power at breaker and check circuit is fully de-energized with a tester before starting.

Step2: Remove control panel and carefully disconnect old socket and wiring.

Step3: Insert new socket into panel hole and press firmly until it locks in place securely.

Step4: Connect wire leads according to wiring diagram, ensuring tight and correct terminal connections.

Step5: Ensure proper insulation and strain relief to prevent wire damage or overheating. Reassemble panel restore power and test element securely.
