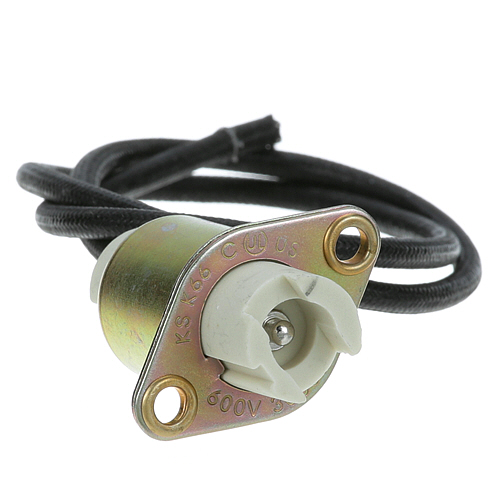

APW AS-3100801 Snap-In Element Socket 7/8" DIA Panel Hole 16" Wire

SKU: AS-3100801 1-AS-3100801 Brand:
APW
Availability:
In Stock
(0)
$60.56 Price reduced from $98.21
Save $37.65
Have a Question? +1 (866) 863-0907

Specifications:

  • Socket For Snap-In Elements, For 7/8" Dia Panel Hole.
  • #14 Wire 16" Long,
  • 7/8" Long Metal Socket ( .834" Dia Od ),
  • W/O Collar # 26-2738, Aluminum Collar 1" Od

Description

The APW AS-3100801 Snap-In Element Socket allows the safe insertion and connection of heating elements using a strong electrical connection. It works based on receiving element terminals in the 7/8" panel hole and transferring electricity through the 16" wire. This socket is mounted in units that are compatible with the designated panel place. It is designed in such a way that it retains the element at all times and provides the element with appropriate electrical contact to enable normal heating.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 1.5 in
  • Height: 18.5 in
  • Width: 1 in

APW WYOTT:

-3100801 31008-01 3100801 APW31008-01

CLEVELAND:

-108210 108210

HOBART:

00-825098 30001 825098 825818

LANG:

-2E-31602-01 -31602-01 200409 2E-31602-01 31602-01 LG200409 LG31602-01

LINCOLN:

-000672SP 000672SP

MERCO:

-000672 -000672SP 000672 000672SP 672 672SP MER672 MER672SP

STAR MFG:

-200409 -2E-200409 -2E-31602-01 200409 2E-200409 2E-31602-01 5950 Z4472

STERO:

STAZ4472

VULCAN HART:

-00-825098 -30001 -825098 -825818 00-2509800 00-825098 2509800 30001 825098 825818 VH00-2509800 VH00-825098 VH2509800 VH825098

Step1: Turn off power at breaker and check circuit is fully de-energized with a tester before starting.

Step2: Remove control panel and carefully disconnect old socket and wiring.

Step3: Insert new socket into panel hole and press firmly until it locks in place securely.

Step4: Connect wire leads according to wiring diagram, ensuring tight and correct terminal connections.

Step5: Ensure proper insulation and strain relief to prevent wire damage or overheating. Reassemble panel restore power and test element securely.

  • What maintenance is required for the APW AS-3100801 Element Socket?

    Inspect the socket for secure seating in the panel and ensure wiring remains tight and properly insulated. Keep contacts clean from carbon buildup. Verify stable electrical connection and consistent element performance during repeated heating cycles without arcing or overheating.

  • What are common issues with the APW AS-3100801 Element Socket?

    • Loose electrical connection.
    • Contact overheating occurring.
    • Socket loosening in panel.
    • Arcing at terminals.
    • Element not energizing.
