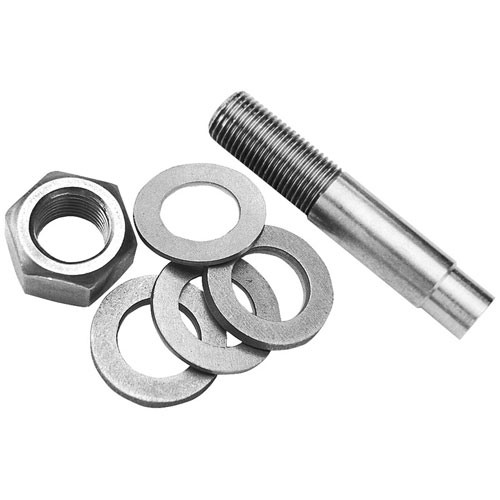

Bakers Pride AS-S3009X Oven Door Pin Right Side 9/16" OD X 3"

SKU: AS-S3009X 1-AS-S3009X Brand:
Bakers Pride
Availability:
In Stock
(0)
$28.24 Price reduced from $39.95
Save $11.71
Have a Question? +1 (866) 863-0907

Specifications:

  • Door Pin 9/16" Od X 3" W/ Nut & Spacer, Washers 4 Total ,2
  • Thick 2 Thin
  • Bakers Pride Oven 101, 151, 201, 251, 301, 401, Ds805, D125,
  • ( Y600 Right Side )

Description

The Bakers Pride AS-S3009X Oven Door Pin Right Side 9/16" OD X 3" is a mechanical support component, that is used in commercial ovens. This is an oven door pin that is fitted on the right-hand side of the oven door assembly to control the hinge movement and ensure the correct positioning when opening and closing. It is applied in practice, in the process of maintenance or replacement, to ensure that the doors are functioning properly. The pin works as the door support system, whereby it engages with hinges and frames to ensure stability.

Dimensions:

  • Weight: 0.3 lbs
  • Length: 3 in
  • Height: 1 in
  • Width: 1 in

Step1: Turn off oven and ensure cool before installation and disconnect power if applicable

Step2: Remove the door and old pin carefully, and set the hardware aside

Step3: Align the hinge bracket and mounting holes for proper alignment

Step4: Insert a new pin through assembly from top ensuring secure seating of the components

Step5: Position the spacer and nut in place properly oriented

Step6: Tighten securely avoid over-tightening to prevent damage.

Step7: Do not overtighten to avoid stripping threads.

Step8: Reinstall door and test smooth swing operation and verify stability

  • What maintenance is required for the Bakers Pride AS-S3009X Door Pin?

    Inspect the door pin regularly for wear, loosening, or bending that can affect door alignment. Clean away grease and debris to prevent binding and ensure smooth door movement. Tighten the nut and check the spacer condition to maintain secure and stable operation.

  • What are common issues with the Bakers Pride AS-S3009X Door Pin?

    • Wear on the pin causing door misalignment.
    • Loose nut leading to unstable door movement.
    • Spacer degradation affecting smooth operation.
    • Bending or deformation from heavy use.
    • Grease buildup causing sticking or binding.
