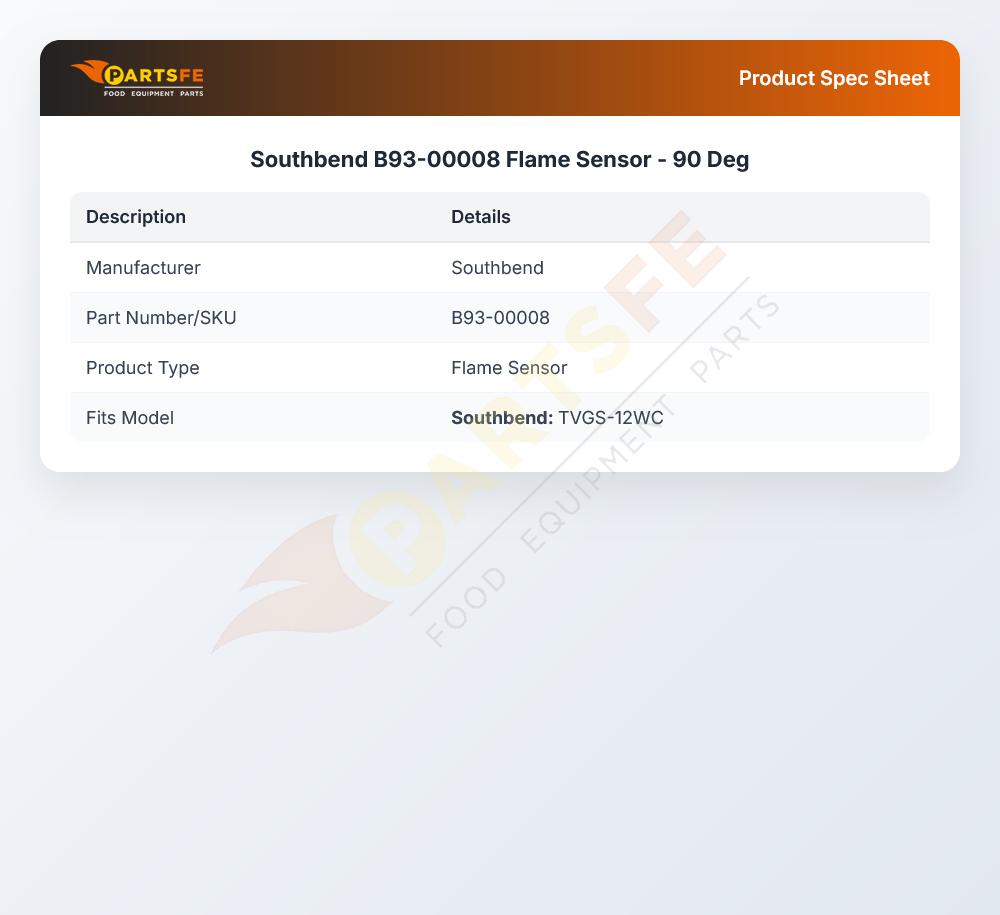

Southbend B93-00008 Flame Sensor 90°

SKU: B93-00008 1-B93-00008 Brand:
Southbend
Availability:
In Stock
(0)
$91.27 Price reduced from $171.89
Save $80.62
Have a Question? +1 (866) 863-0907

Description

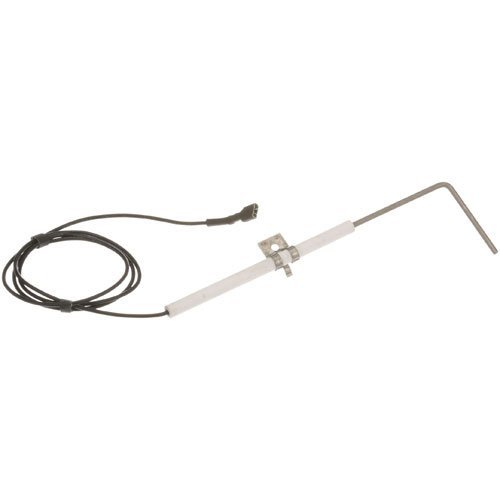

The Southbend B93-00008 Flame Sensor is used to determine the presence of flame in the burner by detecting the electrical current that is produced when the flame conducts between the sensor rod and the ground. This signal is transmitted to the ignition control, and gas flow is continued when a flame is detected and ceased when no signal is received. This flame sensor is placed close to the burner, and the 90-degree design will place the sensing rod directly in the flame. It is also linked to the control system with one lead and is mounted with standard parts.

Dimensions:

  • Weight: 0.25 lbs
  • Length: 6 in
  • Height: 0.5 in
  • Width: 0.5 in

MIDDLEBY MARSHALL:

1175127

SOUTHBEND:

1175127 1189311 1195448 B93-00020 SOU1175127 SOU1189311 SOU1195448

Step1: Turn off power and gas supply before starting.

Step2: Remove old flame sensor from burner assembly carefully.

Step3: Align sensor with mounting bracket.

Step4: Secure sensor using original screws tightly.

Step5: Reconnect wiring ensuring correct polarity.

Step6: Restore power and test ignition for safe flame detection.

Step7: Inspect wiring insulation for damage before reassembly.

Step8: Allow system to run and confirm stable flame signal operation.

Step9: Shut down if flame is not detected and recheck alignment.

  • What maintenance is required for the Southbend B93-00008 Flame Sensor?

    Inspect and clean flame sensor rod regularly to remove carbon buildup affecting flame detection accuracy. Check wiring connections for corrosion or looseness, ensure proper alignment with burner flame, and test operation during routine inspections for stable performance and safety.

  • What are common issues with the Southbend B93-00008 Flame Sensor?

    • Dirty or carbon-fouled sensor causing weak flame detection.
    • Intermittent shutdown due to poor signal strength.
    • Wiring corrosion or loose connections leading to signal loss.
    • Misalignment with burner flame causing ignition failure.
