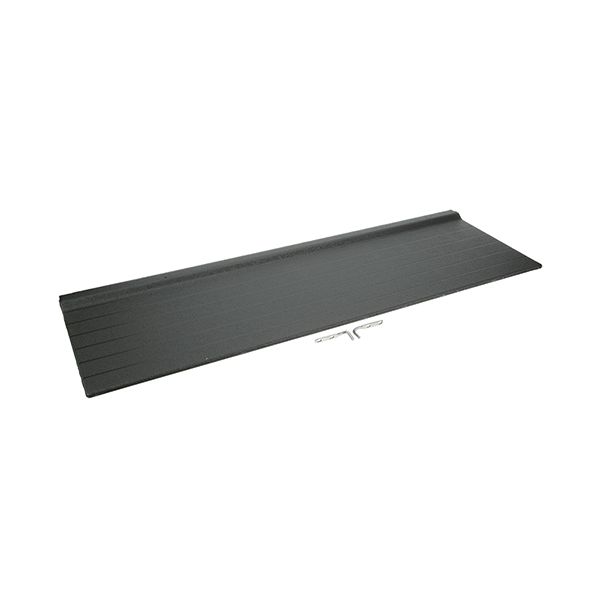

Manitowoc 7624503 Ice Machine Bin Door Assembly
Description
Dimensions:
- Weight: 8.8 lbs
- Length: 20.5 in
- Height: 5 in
- Width: 12.5 in
Product Overview:
Provides controlled access to the ice storage area and helps keep the bin enclosed when closed. The Manitowoc 7624503 Ice Machine Bin Door Assembly is an OEM structural component for Manitowoc commercial ice machines. Its door structure supports normal access to stored ice while maintaining the intended enclosure of the storage compartment.
Door Movement:
Designed to provide smooth access to the ice storage area during normal use. Its door mechanism allows the bin to be opened when ice is needed and returned to a closed position, supporting convenient operation of the storage compartment.
Bin Enclosure:
It helps maintain the enclosure of the storage area when closed. Proper door positioning helps keep stored ice contained and limits unnecessary exposure of the bin interior during regular equipment use.
Replacement Guidelines:
Replace the Manitowoc 7624503 Bin Door Assembly when the door becomes cracked, warped, damaged, or difficult to open and close properly. Alignment problems, loose movement, or visible deterioration can affect access to and enclosure of the ice storage area. Confirm the existing part number and complete equipment model before purchasing a replacement.
Common Failure Symptoms:
- Door does not open or close properly
- Cracked or damaged door
- Warped or deformed door
- Loose or unstable movement
- Door becomes misaligned
Equipment Compatibility:
The Manitowoc 7624503 Ice Machine Bin Door Assembly is an OEM structural component for Manitowoc commercial ice machines. Verify the complete machine model number and existing bin door part number against the manufacturer’s parts documentation to confirm fitment for part number 7624503 before ordering.
Technical Specifications:
Brand: Manitowoc
Part Number: 7624503
Product Type: Bin Door Assembly
Application: Commercial Ice Machine
MANITOWOC:
Step1: Disconnect power supply to ice machine to prevent electric shock.
Step2: Remove existing bin door carefully and support door weight to avoid damage.
Step3: Align new door with mounting brackets ensuring correct orientation.
Step4: Secure screws evenly tightening gradually to maintain proper seal and alignment.
Step5: Test door operation smooth opening closing and check gasket contact.
Step6: Restore power and inspect for leaks, noise, or misalignment after installation.
-
What maintenance is required for the Manitowoc 7624503 Bin Door Assembly?
Clean the Ice Machine bin door regularly to prevent ice buildup and contamination. Inspect hinges and seals for wear or damage and ensure smooth movement. Lubricate hinge points lightly when needed to maintain proper alignment and accurate daily operation.
-
What are common issues with the Manitowoc 7624503 Bin Door Assembly?
- Door misalignment causing poor sealing.
- Worn gasket leading to air leakage.
- Hinge stiffness or looseness affecting movement.
- Ice accumulation blocking smooth opening.
- Cracked or damaged door components reducing efficiency.
