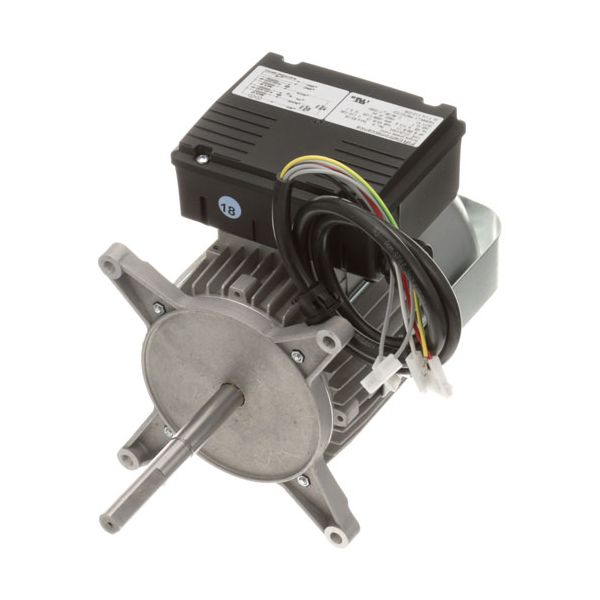

Blodgett BL34111 Oven Motor Assembly
Special Price $688.57 Regular Price $1,653.91
In stock
SKU
BL34111
Manufacturer:
The Blodgett BL34111 Motor Assembly is a part of the commercial kitchen equipment especially in pizza ovens. This blower unit is used to drive the conveyor belt, in order to maintain the constant cooking of pizzas. The old-style motor had 1725/1140 RPM, 0.75/0.21 HP and the new model has 1680/1120 RPM, 0.60/0.17 HP. Both feature two-speed control for the proper flow rate and power consumption. The motor is durable and is capable of performing in high temperatures as may be required in some operations.
Dimensions
- Length: 19 In
- Width: 10 In
- Height: 10 In
- Weight: 30.5 lbs
Product Notes
- { Old Style }Blower Motor, 2 Speed
- 115V, .75/.21 Hp, 1 Ph, 1725/1140 RPM, 9/4 Amps,
- Y56Z Frame,
- 5/8" X 5" Shaft W/2 Flats, 6-1/4" Ctrs On Mtg Holes 34"
- Armored Cable
- { New Style } 115/120V, 1 Ph, 2 Speed, RPM 1680/1120
- 0.60/0.17 Hp, 7/3.6 Amp, 60 Hz
- Cw Rotation Looking From Back Of Motor Toward The Front
- Follow Installation Procedures Provided With Motor
- Blodgett Blower Wheel A4236,Mb-180, # 26-3047
- Blodgett
- Oven Shog (Before 11-05-05)~
- Ac500Xcel
- Oven Shog After 11-05-05 Use Motor # 68-1058
