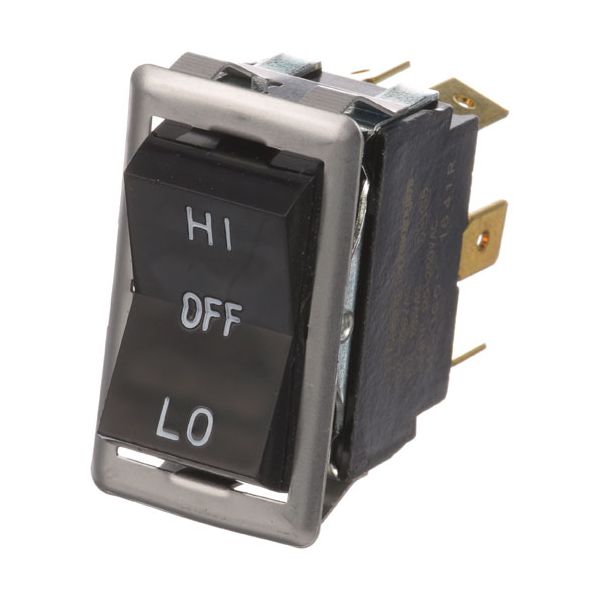

Blodgett BL6503 Black Rocker Switch DPDT HI-OFF-LO W/1/4" Tabs 7/8" X 1-1/2"

Special Price $32.93 Regular Price $45.24
In stock
SKU
BL6503
Manufacturer:
The Blodgett BL6503 Black Rocker Switch Tabs DPDT HI-OFF-LO is an electrical part that is used to switch power on and off between high, off, and low by adjusting the positions of the contacts. The mechanism is actuated to connect internal terminals to change the flow of current through the parts connected. It comes mounted on the equipment control panel and fits directly into a 7/8" x 1-1/2" mounting cutout to be accessed directly by the operator. It has 1/4-inch quick-connect tabs and a configuration, and it is applied in commercial cooking equipment to control multiple speeds.

Dimensions

  • Length: 2 In
  • Width: 1.75 In
  • Height: 1 In
  • Weight: 0.06 lbs
https://partsfe.com/media/catalog/product/b/l/blodgett-bl6503-dpdt-black-rocker-switch-w-1-4-tabs-hi-off-lo-7-8-x-1-1-2-35804-2.jpg

Product Notes

  • Rocker Switch Dpdt Black, 6 Ea 1/4" Tabs Black With Chrome
  • Bezel, Hi-Off-Lo, 10A-250V, 15A-125V,
  • Large Rocker, 7/8" X 1-1/2"
  • Blodgett Fa, Gzl, Ef, Eze
BLODGETT:
Write Your Own Review
You're reviewing:Blodgett BL6503 Black Rocker Switch DPDT HI-OFF-LO W/1/4" Tabs 7/8" X 1-1/2"
Your Rating
Customer Questions
What maintenance is required for the Blodgett BL6503 Rocker Switch?

Clean the switch and ensure smooth toggling action. Inspect connections and mounting stability. Routine care supports accurate switching and secure electrical control.

What are common issues with the Blodgett BL6503 Rocker Switch?

  • Switch failing to maintain selected position.
  • Intermittent electrical contact issues.
  • Loose mounting causing instability.
  • Internal wear reducing switching accuracy.
  • Delayed response during toggling.
  • Heat damage affecting performance.

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off and unplug the appliance to ensure electrical safety.

Step2: Remove the control panel to access the existing switch.

Step3: Label and disconnect wires from the old switch.

Step4: Insert the new rocker switch into the panel opening.

Step5: Reconnect wires according to the original configuration.

Step6: Replace the panel, restore power and verify that the switch operation works correctly.
