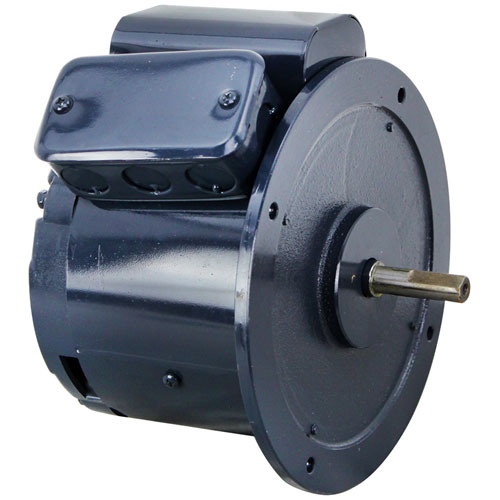

Vulcan Hart 00-715107-00002 Gas Broiler Blower Motor 1/4HP 1725 RPM 1PH 115V

SKU: 00-715107-00002 1-00-715107-00002 Brand:
Vulcan Hart
Availability:
In Stock
(0)
$662.48 Price reduced from $1,038.37
Save $375.89
Have a Question? +1 (866) 863-0907

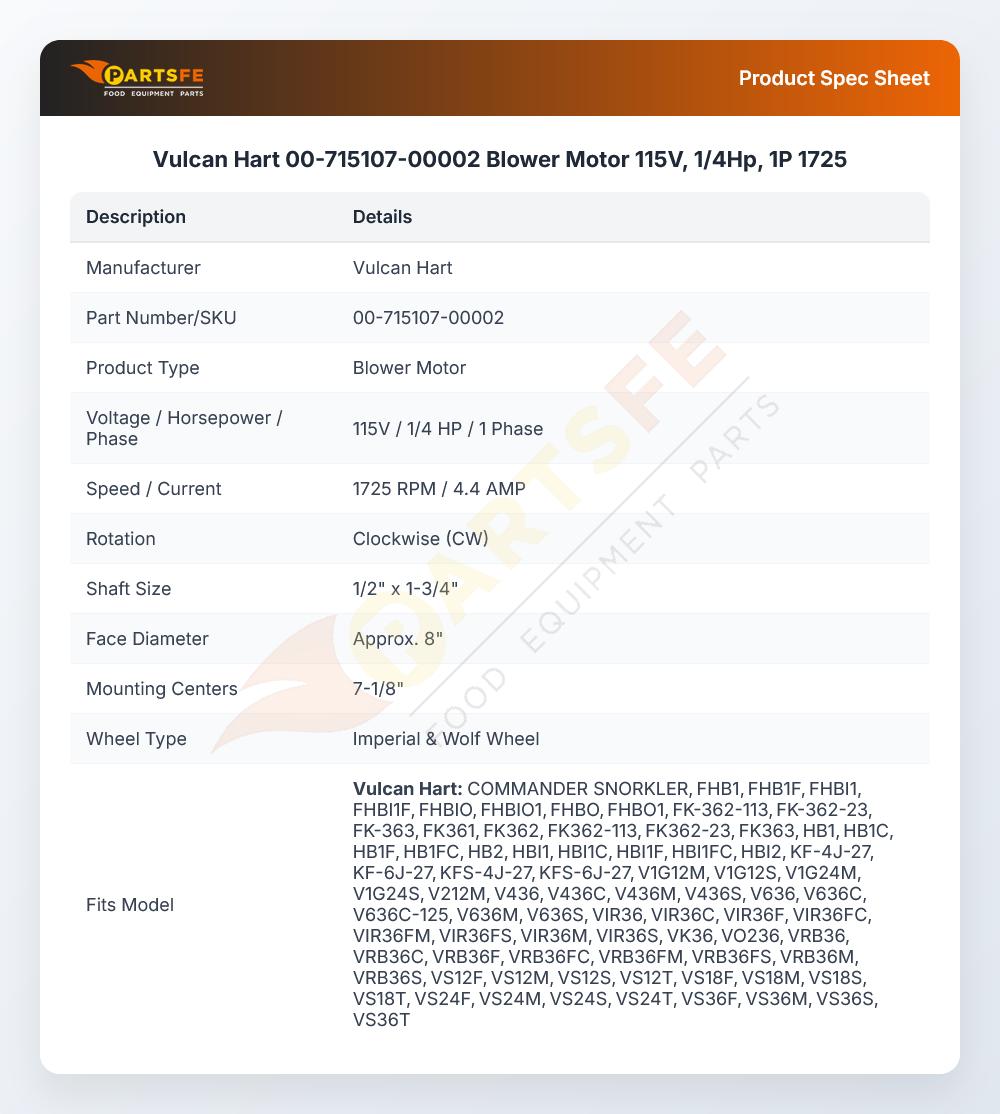

Specifications:

  • [ 115V, ] [ 1/4Hp,] [1P ] [1725 RPM ][4.4Amp ][Cw Rotat.]
  • [1/2" X 1-3/4" Shaft ] Approx 8" Dia Face,
  • 7-1/8" Mount Centers
  • Imperial & Wolf Wheel # 26-1470 (8-1/16")
  • Us Range & Vulcan Wheel # 26-1471 (7-1/8")
  • American Range Oven Ar24, Ar-C
  • Hobart Oven
  • Imperial Oven Series: Ir W/Convection Oven.
  • Us Range Oven Series 836 Cuisine, Performer Ii
  • Vulcan Oven 24L, 36(L,Lc), 48L, 60(L,Lc,Lcc), 148(L,Lc),
  • 160(L,Lc), 260(L,Lc,Lcc), 481(L,Lc), H56C, Mg12
  • Series: 141, 241, Sg77. Series Gh, Ghm, Ghx, Vg.
  • Wolf Series Fk, All Commander/Challenger Snorkler Unis
  • With Convection Ovens. Kf, Kfs

Description

The Vulcan Hart 00-715107-00002 Blower motor operates by forcing air into the broiler system and circulating it over the burners to ensure uniform burning. It operates on a 1/4 HP motor at 1725 RPM with a single phase 115V power supply to maintain constant air flow to provide maximum broiling. It fits directly into the broiler assembly and is designed to direct air over the burner area to keep the system flowing. It can easily be installed in commercial broilers and with its design, it allows even heat distribution across the cooking surface whilst fitting into the existing mounting configuration so that it can be easily replaced.

Dimensions:

  • Weight: 19.2 lbs
  • Length: 9 in
  • Height: 9.5 in
  • Width: 8 in

This Part Fits the Following Models

93 models
Vulcan Hart COMMANDER SNORKLER Vulcan Hart FHB1 Vulcan Hart FHB1F Vulcan Hart FHBI1 Vulcan Hart FHBI1F Vulcan Hart FHBIO Vulcan Hart FHBIO1 Vulcan Hart FHBO Vulcan Hart FHBO1 Vulcan Hart FK361 Vulcan Hart FK362 Vulcan Hart FK-362-113 Vulcan Hart FK-362-23 Vulcan Hart FK-363 Vulcan Hart HB1 Vulcan Hart HB1C Vulcan Hart HB1F Vulcan Hart HB1FC Vulcan Hart HB2 Vulcan Hart HBI1 Vulcan Hart HBI1C Vulcan Hart HBI1F Vulcan Hart HBI1FC Vulcan Hart HBI2 Vulcan Hart KF-4J-27 Vulcan Hart KF-6J-27 Vulcan Hart KFS-4J-27 Vulcan Hart KFS-6J-27 Vulcan Hart V1G12M Vulcan Hart V1G12S Vulcan Hart V1G24M Vulcan Hart V1G24S Vulcan Hart V212M Vulcan Hart V212S Vulcan Hart V218M Vulcan Hart V218S Vulcan Hart V2H36 Vulcan Hart V2H36C Vulcan Hart V2H36M Vulcan Hart V2H36S Vulcan Hart V3036 Vulcan Hart V3036C Vulcan Hart V3036M Vulcan Hart V3036S Vulcan Hart V3G36 Vulcan Hart V3G36C Vulcan Hart V3G36M Vulcan Hart V3G36S Vulcan Hart V424M Vulcan Hart V424S Vulcan Hart V436 Vulcan Hart V436C Vulcan Hart V436M Vulcan Hart V436S Vulcan Hart V636 Vulcan Hart V636C Vulcan Hart V636C-125 Vulcan Hart V636M Vulcan Hart V636S Vulcan Hart VIR36 Vulcan Hart VIR36C Vulcan Hart VIR36F Vulcan Hart VIR36FC Vulcan Hart VIR36FM Vulcan Hart VIR36FS Vulcan Hart VIR36M Vulcan Hart VIR36S Vulcan Hart VK36 Vulcan Hart VO236 Vulcan Hart VRB36 Vulcan Hart VRB36C Vulcan Hart VRB36F Vulcan Hart VRB36FC Vulcan Hart VRB36FM Vulcan Hart VRB36FS Vulcan Hart VRB36M Vulcan Hart VRB36S Vulcan Hart VS12F Vulcan Hart VS12M Vulcan Hart VS12S Vulcan Hart VS12T Vulcan Hart VS18F Vulcan Hart VS18M Vulcan Hart VS18S Vulcan Hart VS18T Vulcan Hart VS24F Vulcan Hart VS24M Vulcan Hart VS24S Vulcan Hart VS24T Vulcan Hart VS36F Vulcan Hart VS36M Vulcan Hart VS36S Vulcan Hart VS36T
Showing of 93.0

GARLAND:

228129

HOBART:

113994-1 15107 413994-00001 715107 715107-00002 715107-2

VULCAN HART:

00-413994-00001 113994-1 15107 413994-00001 413994-1 715107 715107-00002 715107-2 VH413994-1
