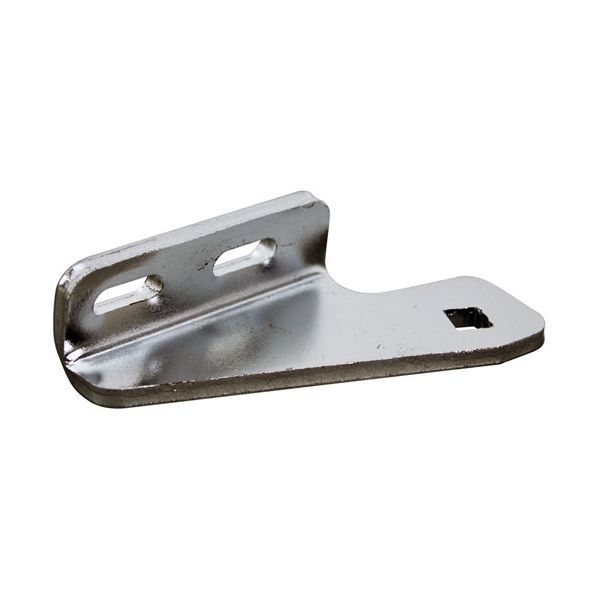

Delfield 3234226 Refrigerator Hinge Bracket-TL/BR

Be the first to review this product
Special Price $9.88 Regular Price $13.00
In stock
SKU
3234226
Add to Wish List
Electrical & Hardware, Hinge Parts, Shop by manufacturers
Manufacturer:
The Delfield 3234226 Refrigerator Hinge Bracket-TL/BR is used to support the pivot point of a refrigerator door, in which the hinge pin or assembly is able to rotate on a mounting surface. The hinge components are kept in place by the bracket as the door moves and direct the movement along the desired direction to ensure that the door opens and closes without any problem. It is mounted on top of the left or bottom right side of the compatible refrigerator units, where the hinge attaches the door to the cabinet frame.

Dimensions

  • Length: 4 In
  • Width: 1.5 In
  • Height: 1 In
  • Weight: 0.274 lbs
https://partsfe.com/media/catalog/product/d/e/delfield-3234226-hinge-bracket-tl-br-88401-2.jpg

Product Notes

  • Cartridge Hinge Bracket,
  • Top Left, Bottom Right
  • Delfield 4427N, 4427N-6, 4427N-9M, 4432N, 4432N-12M, 4448N,
  • 4448N-12, 4448N-8, 4460N, 4460N-12, 4460N-12M, 4460N-18M,
  • 4460N-24M, 4460N-8, 4462N-18M, 4464N, 4464N-12, 4464N-12M,
  • 4464N-16, 4464N-24M, 4464N-30M, 4464N-8, 4472N, 4472N-12,
  • 4472N-18M, 4472N-24M, 4560N, D4427N, D4432N, D4448N,D4460N,
  • D4464N, D4472N, Ms-8-1H, Ms-8-Eh, St4427N, St4432N,
  • St4448N,St4460N, St4464N, St4472, St4472N, St4560N,
  • Std4427N,Std4432N, Std4448N, Std4460N, Std4464N, Std4472N,
  • Uc4048,Uc4148, Uc4427N, Uc4432N, Uc4448N, Uc4460N, Uc4464N,
  • Uc4472,Uc4472N,Uc4560N,Ucd4427N,Ucd4432N,Ucd4448N,Ucd4460N,U
  • Cd4464N, Ucd4472N
DELFIELD:
3234226, DEL3234226
Reviews
Write Your Own Review
You're reviewing:Delfield 3234226 Refrigerator Hinge Bracket-TL/BR
Your Rating
FAQS
Customer Questions
What maintenance is required for the Delfield 3234226 Hinge Bracket?

Hinge brackets should be inspected regularly for loosened fasteners, misalignment, and wear at pivot points. Clean debris and grease hinges lightly to ensure smooth operation. This prevents strain on door assemblies and maintains proper alignment.

What are common issues with the Delfield 3234226 Hinge Bracket?

  • Loose mounting or bracket deformation.
  • Pivot wear causing hinge stiffness.
  • Misalignment leading to door not closing properly.
  • Corrosion or rust on metal surface.
  • Reduced hinge tension or uneven movement during operation.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power to the unit before starting installation.

Step2: Remove the damaged or worn hinge bracket from the cabinet or door assembly.

Step3: Align the new hinge bracket with the original mounting holes.

Step4: Secure the bracket using the proper screws or fasteners and tighten firmly.

Step5: Reattach the door and verify smooth opening and closing movement.

Step6: Inspect the hinge alignment and ensure the door seals properly before restoring power.
