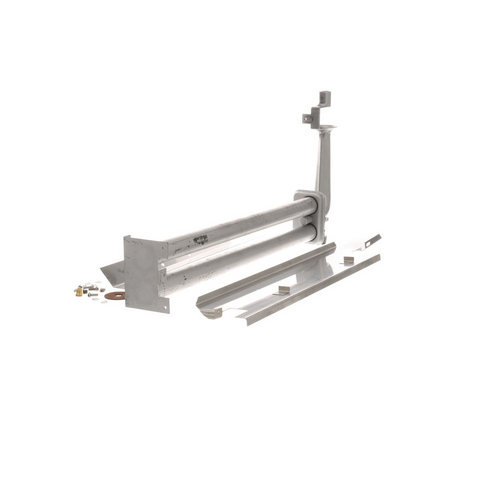

Blodgett 36156 Oven Steel Burner Assembly 31 X 15-1/4 L W/ 1.67" DIA x 27" Burner Tubes

SKU: 36156 1-36156 Brand:
Blodgett
Availability:
In Stock
(3)
$766.99 Price reduced from $1,537.67
Save $770.68
Have a Question? +1 (866) 863-0907

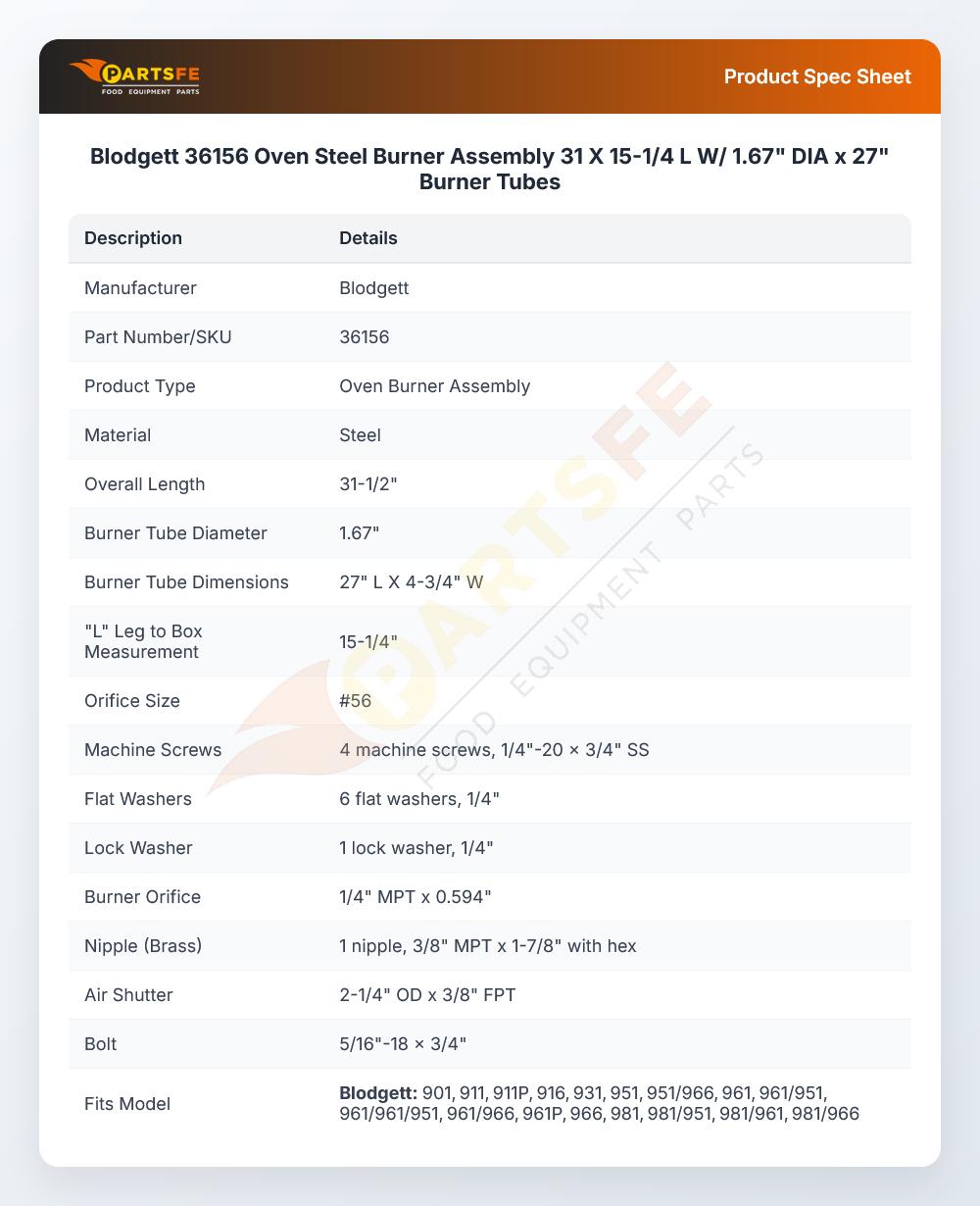

Specifications:

  • Steel Burner, 31-1/2" Overall Straight Length ,
  • [ Burner Tube 1.67" Dia X 27" ( Box Center & Mounting
  • Plate End )], Burner Tubes Width Accross 4-3/4" Wide,
  • "L" Leg To Box = 15-1/4", #56 Orifice
  • Includes Wall Deflector & Burner Divider.
  • 4 Machine Screws 1/4"-20 X 3/4" Ss
  • 6 Flat Washers 1/4", 1 Lock Washer 1/4",
  • 1 Burner Orifice 1/4" Mpt X .594", # 56
  • 1 Nipple, Brass, 3/8" Mpt X 1-7/8" W/ Hex
  • 1 Air Shutter 2-1/4" Od X 3/8" Fpt, 1 Bolt 5/16"-18 X 3/4"
  • Blodgett Oven 901, 911, 916, 931, 951, 960, 961, 966, 981,
  • 999

Description

The Blodgett 36156 Burner Deflector/Divider Kit is an assembly component of commercial ovens to control the amount of heat dispersed over cooking surfaces. It works by guiding and separating flames in the burners in the ovens so that there is uniform heating all over the inside of the oven. Fitted directly over the burners, it assists in avoiding hot spots and also aids in achieving consistency in cooking, which is a key factor in ensuring that the temperature remains consistent. The oven uses this kit to maximize the efficiency of its cooking and prevent any food issues related to uneven exposure.

Dimensions:

  • Weight: 17.7 lbs
  • Length: 31 in
  • Height: 4.5 in
  • Width: 15.25 in

BLODGETT:

07849 11312 7849 BL36156

Step1: Turn off gas and disconnect electrical supply.

Step2: Access the burner compartment by removing panels.

Step3: Disconnect gas line from the old burner assembly.

Step4: Unscrew mounts and carefully remove the unit.

Step5: Position the new burner assembly and secure it.

Step6: Reconnect gas, restore power, and test for proper ignition.

  • What maintenance is required for the Blodgett 36156 Burner Assembly?

    Regularly inspect the burner assembly for grease buildup, corrosion, or cracks. Clean debris from the burner tubes to ensure proper flame distribution. Check all connections and mounting points for safety. Proper maintenance ensures safe and even heating during oven operation.

  • What are common issues with the Blodgett 36156 Burner Assembly?

    • Uneven or weak flame distribution.
    • Clogged or blocked burner tubes.
    • Corrosion or rust on the steel components.
    • Burner tubes becoming loose or shifting out.
