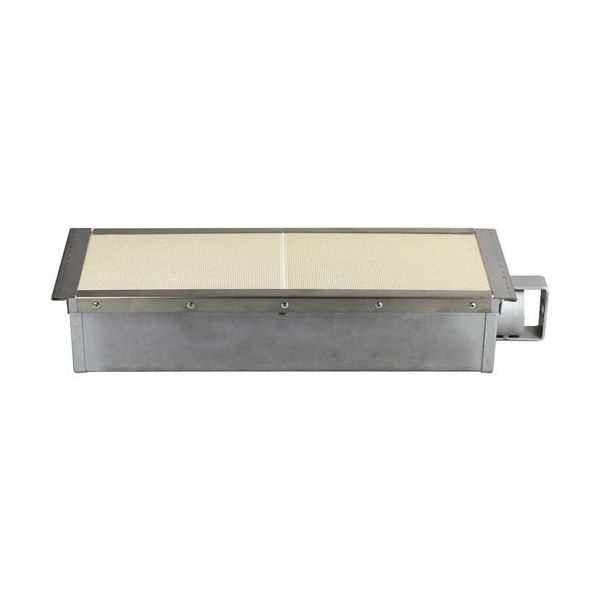

Jade Range 1212500000 Cheese Melter Infrared Burner 18-3/4" X 6" OD #46 B2OT-4 C/M
Special Price $660.21 Regular Price $1,034.81
In stock
SKU
1212500000
Manufacturer:
The Jade Range 1212500000 Cheese Melter Infrared Burner 18-3/4" X 6" OD #46 B2OT-4 C/M is a gas-fired heating element that can be used in commercial appliance systems. This infrared burner produces radiant heat to melt, brown or cook foods under it. It is widely applied in restaurant kitchens to open-faced sandwiches, plated dishes, and finishing applications. The burner is installed in the cheese melter unit, and is connected to the gas supply and ignition system, providing targeted heat production that used in accurate temperature management during regular food preparation.
Dimensions
- Length: 19.5 In
- Width: 6.125 In
- Height: 3.5 In
- Weight: 6.68 lbs
Product Notes
- Infrared Cheesemelter Burner,
- 18 3/4" X 6" Od ( Less Orifice ) Includes #46 Orifice.
- Top Of Box 16 3/4" X 6", ( Polished Rim), 180,000 Btu,
- Burn Area 15 1/4" X 4 3/4"
- Box 15 3/4" X 5 1/4"
- Us Range Broiler Ircma 24, 48, 72, 96, 120, 144.
- For Us Range Orifice Elbow Assy Use #227061-46
- For Jade Use Ap# 8012458
