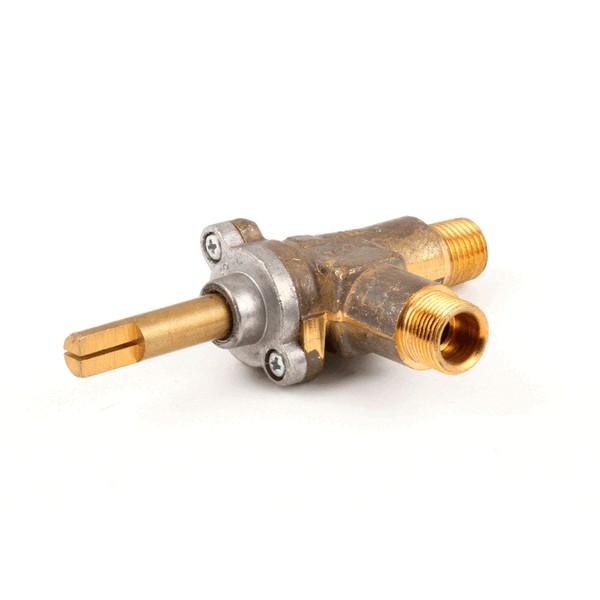

Southbend 1176015 Broiler LP Burner Valve 1/4"MPT X 3/8" CCT

SKU: 1176015 1-1176015 Brand:
Southbend
Availability:
Out of Stock
(0)
$175.24 Price reduced from $185.64
Save $10.40
Have a Question? +1 (866) 863-0907

Specifications:

  • Lp Burner Valve, [ 3/8" Cct X 1/4" Mpt ]
  • [ Rotation Off/High/Low] Push To Turn,
  • [Stem Position Down] Stem Length 1-7/16", "C" = 1-5/8".
  • [Stem Size .240"] [Ctr Inlet To End Of Stem 2.25"]
  • [ Angle - 90], [ Comes With 3/8" Cct Inlet Adapter,
  • For Knob Use 2.5" Dia. Dial (Off/Hi/Low) ]# 22-1232
  • For Valve W/Knob Use # 52-1085
  • Southbend Broiler Mr, Mra

Description

The Southbend 1176015 Broiler Burner Valve regulates the flow of propane gas by opening, restricting, or shutting off the supply to the unit during system operation. Featuring a 1/4-inch MPT x 3/8-inch CCT connection for propane gas applications, it adjusts the amount of fuel delivered to the burner to support controlled flame operation. This valve is installed within compatible commercial broilers, where it connects the gas supply line to the burner assembly as part of the fuel control system.

Dimensions:

  • Weight: 0.25 lbs
  • Length: 4 in
  • Height: 1 in
  • Width: 2 in
