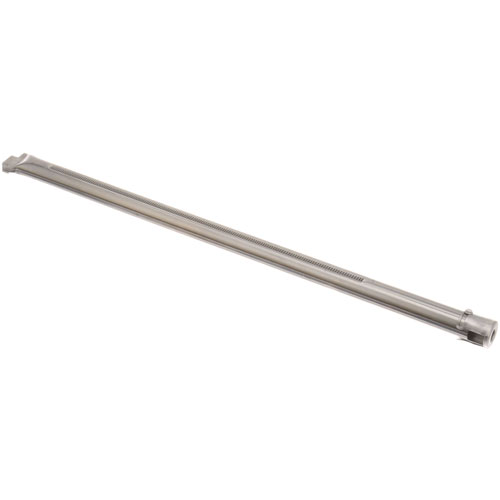

Jade Range 1210600000 Range 23" Aluminized Steel Burner W/ Air Shutter

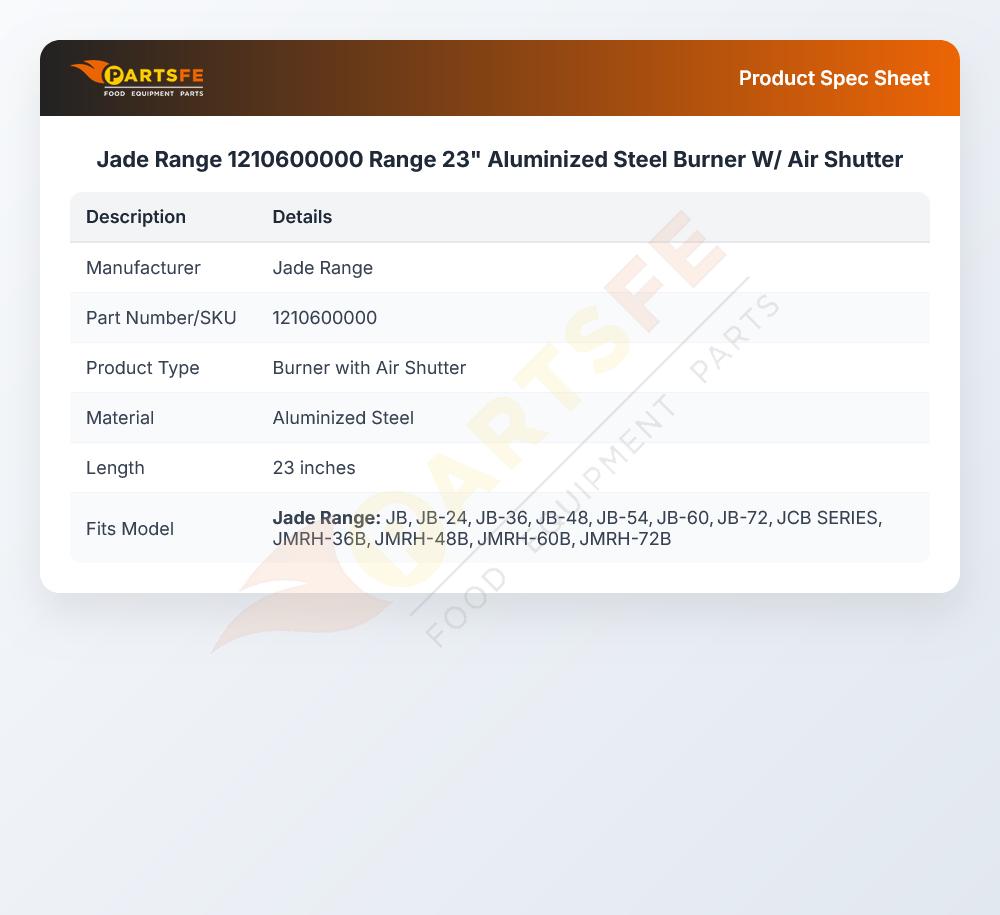

Specifications:
- Aluminized Steel Burner W/ Air Shutter
- [ 23" Long ] W/ Air Shutter # 26-1863, 15-1/4" Burn
- Jade Broiler Series: Jb, Jcb.
Description
Dimensions:
- Weight: 1 lbs
- Length: 23 in
- Height: 1 in
- Width: 1.5 in
JADE RANGE:
Step1: Turn off gas supply and disconnect power to the range.
Step2: Remove grates and lift out the old burner carefully.
Step3: Position the new burner, aligning it with the gas orifice.
Step4: Secure the burner in place and reconnect the air shutter.
Step5: Adjust the air shutter for proper flame.
Step6: Reassemble grates, restore gas and power, and test for even ignition.
-
What maintenance is required for the Jade Range 1210600000 Burner?
Regularly inspect the burner for debris, grease buildup, and blockages around the air shutter and ports. Clean the burner surface with a non-abrasive brush to maintain proper airflow and combustion. Ensure the air shutter is properly adjusted for efficient flame performance. Always turn off the gas supply before servicing.
-
What are common issues with the Jade Range 1210600000 Burner?
- Uneven flame distribution due to clogged burner ports.
- Yellow or weak flame caused by improper air shutter adjustment.
- Burner failing to ignite from debris buildup.
- Rust or corrosion affecting burner performance.
