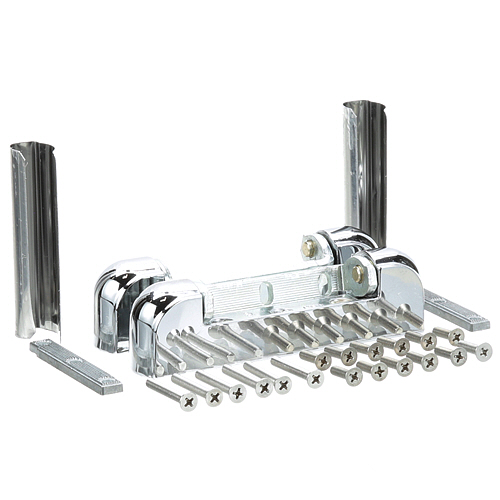

Alto-Shaam HG-22338 Oven Chrome Door Hinge Kit W/ Screws Offset 1-3/8"

SKU: HG-22338 1-HG-22338 Brand:
Alto-Shaam
Availability:
Out of Stock
(0)
$110.45 Price reduced from $117.00
Save $6.55
Have a Question? +1 (866) 863-0907

Specifications:

  • Kit Includes: 10217000012, 217 Series
  • Adjustable Edgemount Hinge And Screws
  • Alto Shaam~
  • Hinge,1-3/8,Offset,Pair,Chrome Fits Models:
  • 10-18W, 1000-Bq2/128, 1000-Bq2/192, 1000-Bq2/96, 1000-S,
  • 1000-S/Hd, 1000-S/Hd/Pt, 1000-S/Std, 1000-S/Std/Pt,
  • 1000-Sk-I, 1000-Sk/Ii, 1000-Sk/Iii, 1000-Th-I, 1000-Th-Ii,
  • 1000-Th-Ii-Split, 1000-Th-Iii, 1000-Th/Iii, 1000-Up,
  • 1000-Up/Hd, 1000-Up/P, 1000-Up/Std, 1000-Ups/Hd,
  • 1000-Ups/Std, 1000Up, 12-20Rtm, 12-20Rtm/E, 1200-S,
  • 1200-S/Hd, 1200-S/Hd/Pt, 1200-S/Std, 1200-S/Std/Pt,
  • 1200-Sk/Iii, 1200-Sr, 1200-Th-Iii, 1200-Th/Iii, 1200-Up,
  • 1200-Up Manual, 1200-Up/Hd, 1200-Up/Sr, 1200-Ups,
  • 1200-Ups/Hd, 1200-Ups/Sr, 1300-Dch/40, 1300-Dch/48,
  • 1360-Dch, 1400-Dc/20, 1400-Dc/24, 1600-Dc/20, 1600-Dc/24,
  • 1767-Sk, 1767-Sk/Iii, 2800-Rtm, 2800-Rtm/E, 2800-Sk/Iii,

Description

The Alto-Shaam HG-22338 Door Hinge Kit Chrome Offset 1-3/8" enables the oven door to swing easily in opening and closing. It operates by attaching the door to the frame of the oven using hinge elements that direct the movement within a predetermined direction. This kit is mounted on oven door side, in a way that it fits into the frame and pivots correctly in movement as it carries the weight of the door when it is in operation.

Dimensions:

  • Weight: 2.1 lbs
  • Length: 6 in
  • Height: 1 in
  • Width: 4 in

ALTO-SHAAM:

ALTHG-22338 ALTHG22338 HG22338

Step1: Disconnect oven from power and allow it to cool completely before starting.

Step2: Remove existing door hinge hardware and support the door securely.

Step3: Align new hinge kit with offset position on door and frame.

Step4: Secure hinges using provided screws, tightening evenly to avoid misalignment or door sagging.

Step5: Reattach door, test swing movement, and adjust if necessary for smooth operation.

  • What maintenance is required for the Alto-Shaam HG-22338 Chrome Door Hinge Kit?

    Regularly inspect the oven hinge for wear, corrosion, and loosened screws, and tighten fasteners as needed. Lubricate moving parts to ensure smooth door operation. Check alignment to prevent strain on the oven door and ensure safe, efficient performance.

  • What are common issues with the Alto-Shaam HG-22338 Chrome Door Hinge Kit?

    • Loose hinge screws causing door sagging or misalignment.
    • Excessive wear leading to stiff or noisy door movement.
    • Broken or bent hinge components affecting proper sealing.
    • Improper installation causing uneven oven door closure.
