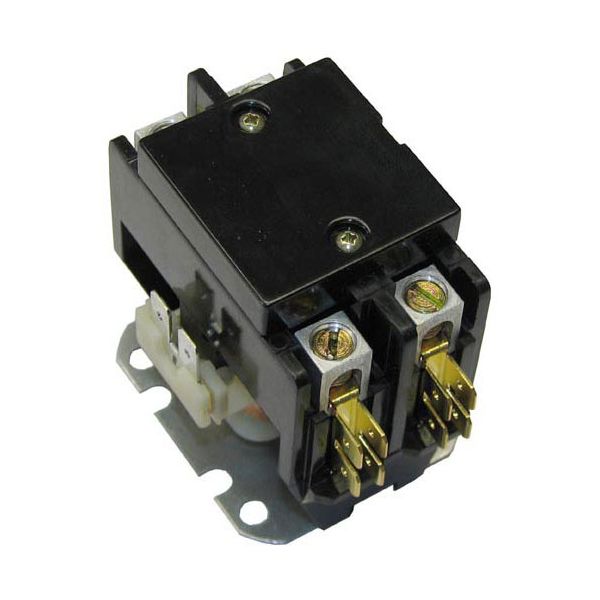

main product photo

Star Mfg 2E-Z8966 Oven Contactor 2-Pole 40/50A 208/240V

Rating:
5 5 1
1  Review Add Your Review
Special Price $185.77 Regular Price $286.23
In stock
SKU
2E-Z8966
Add to Wish List
Oven Parts,
Manufacturer:
The Star Mfg 2E-Z8966 Contactor is an electrical switching part that is used to regulate the high-current flow of power in compatible commercial ovens. It is rated to operate on 2 poles at 40/50 amps and 208/240 volts to enable the unit to safely turn on and off heating circuits. This contactor is typically applied in foodservice ovens where electrical control of heating elements in the electrical system of the oven is needed; it reacts to the control signals of thermostats or controllers and assists in controlling the amount of heat produced.

Dimensions

  • Length: 2.625 In
  • Width: 3.375 In
  • Height: 2.125 In
  • Weight: 1.4 lbs
https://partsfe.com/media/catalog/product/s/t/star-2e-z8966-contactor-2p-40-50a-208-240v-54433-2.jpg

Product Notes

  • Hartland Contactor
  • 2 Pole W/ Cover
  • 208/240 Volt, 40 Amp Inductive, 50 Amp Resistive
  • 10-32 Combo Screw With Dual Quick Connectors
  • Nieco Broiler Export: 940, 960, 962.
  • Export Series: 300, 400, 500, 600, 800.
CHAMPION:
NEMCO:
NIECO:
STAR MFG:
Reviews 1
Write Your Own Review
You're reviewing:Star Mfg 2E-Z8966 Oven Contactor 2-Pole 40/50A 208/240V
Your Rating
FAQS
Customer Questions
What maintenance is required for the Star 2E-Z8966 Contactor?

Inspect and tighten terminals regularly, checking for pitting or arc damage. Clean dust buildup and ensure proper enclosure ventilation to prevent overheating and contact resistance issues. Perform preventive checks and isolate power before servicing to maintain safety and accurate operation.

What are common issues with the Star 2E-Z8966 Contactor?

  • Contact welding due to arcing under high load.
  • Coil failure causing failure to energize or hold.
  • Chattering or intermittent switching from voltage fluctuations.
  • Overheating and excessive resistance leading to erratic operation.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power at breaker and verify zero voltage.

Step2: Mount contactor securely in enclosure on panel using proper tools.

Step3: Connect line and load wires to correct terminals per wiring diagram, tightening firmly.

Step4: Restore power and test switching operation under light load.

Step5: Check for overheating or loose connections during initial run.
