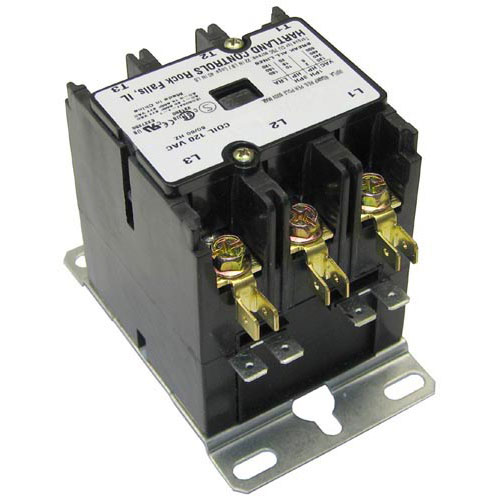

Cleveland 03506 Range 3-Pole Contactor 60 AMP Inductive/75 AMP Resistive

SKU: 03506 1-03506 Brand:
Cleveland
Availability:
In Stock
(0)
$151.46 Price reduced from $233.38
Save $81.92
Have a Question? +1 (866) 863-0907

Specifications:

  • Hartland Contactor
  • 3 Pole
  • 110/120 Volt
  • 60 Amp Inductive
  • 75 Amp Resistive

Description

The Cleveland 03506 Range 3-Pole Contactor operates as a heavy-duty electrical component that controls high-power circuits. The contactor operates within a 60 AMP inductive and 75 AMP resistive rating to control large electrical loads and industrial equipment and appliances. The contactor provides dependable operation by enabling efficient switching operations between AC and DC applications. Heavy-duty appliances alongside air conditioning systems and cooking equipment benefit from this contactor because of its reliable operation. The durable construction of these devices provides both increased longevity and optimized energy consumption while safeguarding against electrical overloads for reliable operation in challenging conditions.

Dimensions:

  • Weight: 1.8 lbs
  • Length: 4 in
  • Height: 3.5 in
  • Width: 3 in

BLODGETT:

40919

CHAMPION:

111827 116166

CROWN STEAM:

4-DF42 9349-120

CURTIS:

WC-431

SOUTHBEND:

4-DF42 9349-120

Step1: Disconnect power and lock out the range to prevent damage.

Step2: Remove the control panel to access the contactor assembly.

Step3: Label and disconnect the wiring from the existing contactor.

Step4: Unmount the old contactor and install the new contactor in the same bracket.

Step5: Reconnect wiring securely to correct terminals and tighten all connections.

Step6: Restore power and test heating circuits for proper switching and operation.

  • What maintenance is required for the Cleveland 03506 Contactor?

    Inspect electrical contacts for wear and tighten all range terminal connections regularly. Clean dust and carbon buildup to prevent overheating and arcing. Routine checks ensure safe, accurate operation in high-load cooking equipment environments.

  • What are common issues with the Cleveland 03506 Contactor?

    • Worn contact points causing intermittent heating.
    • Coil failure leading to non-engagement.
    • Arcing or pitting on terminals.
    • Overheating from excessive load or loose connections.
    • Contact welding resulting in continuous power flow.
