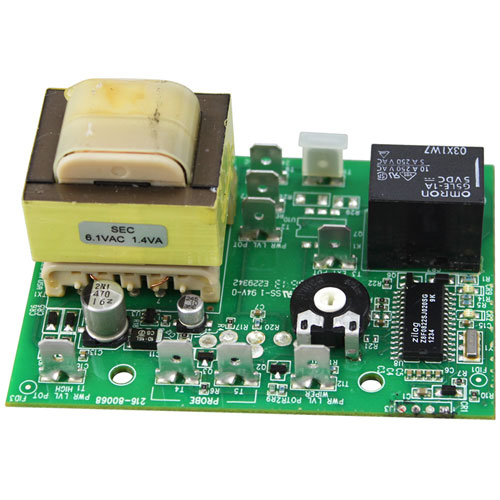

BKI (Barbeque King) T0109 Oven Control Board W/ 12Terminals
Specifications:
- Control Board, Temp 200-500 12 Terminals
- Cook Only Units
- Southbend
- Oven Xs10A (With No Hold Timer & 500 Degree Max), Xs20Ahh.
- Series: V, Vs.
Description
Dimensions:
- Weight: 0.4 lbs
- Length: 3.5 in
- Height: 1.5 in
- Width: 2.5 in
Step1: Disconnect power at breaker and ensure oven is completely cool before starting.
Step2: Remove front access panel and carefully label all wiring terminals for reference.
Step3: Detach old control board, noting all terminal connections.
Step4: Install new board and reconnect each terminal securely in place.
Step5: Reassemble panel, restore power, and test oven operations.
-
What maintenance is required for the BKI T0109 Control Board?
Inspect the oven control board regularly for dust buildup and loose terminal connections. Clean gently using a dry, anti-static brush to prevent electrical faults. Ensure stable voltage supply to avoid damage and intermittent operation.
-
What are common issues with the BKI T0109 Control Board?
- terminal connection loosening causing intermittent signals.
- overheating or burnt components.
- control board failure due to voltage fluctuation.
- unresponsive controls or erratic oven operation.
- short circuit issues in wiring harness.
- display or indicator malfunction.
