Blodgett 22301 Oven Cooling Fan W/Harware 115V

SKU: 22301 1-22301 Brand:
Blodgett
Availability:
In Stock
(1)
$73.36 Price reduced from $144.59
Save $71.23
Have a Question? +1 (866) 863-0907

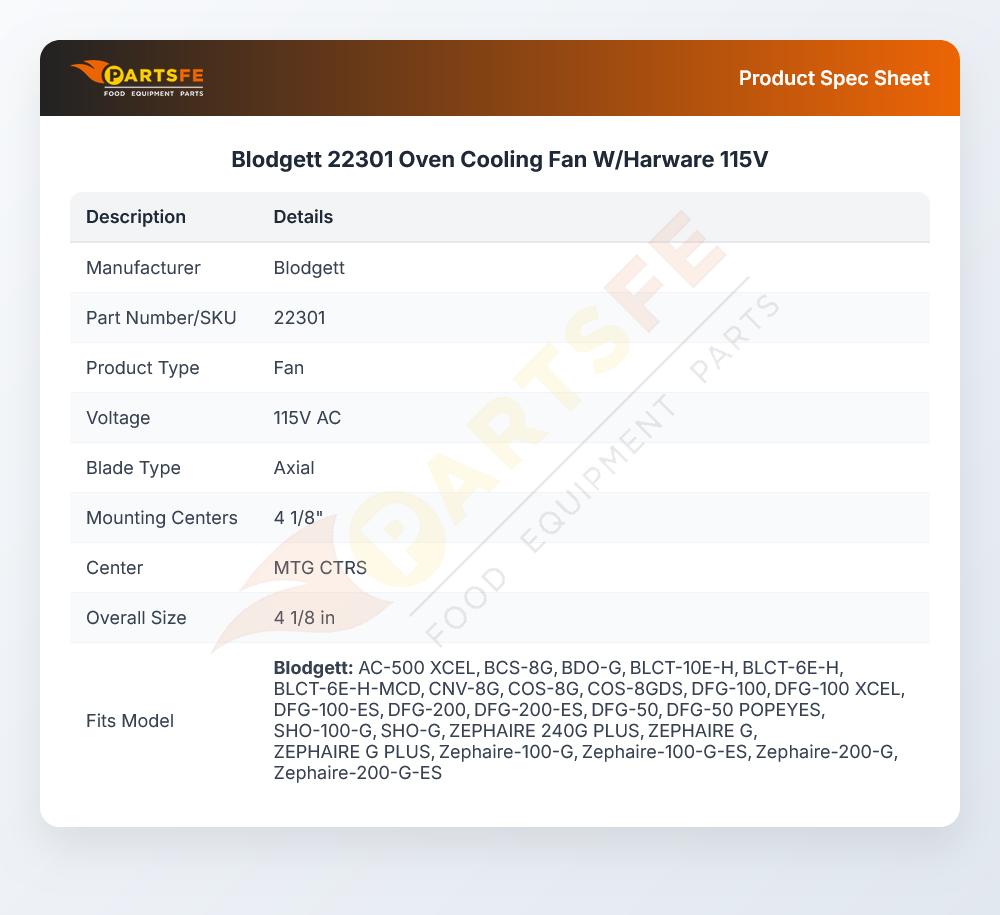

Specifications:

  • 115V, Low Velocity Axial Fan W/Harware
  • 4 1/8" Mtg Ctrs
  • Blodgett Model: Dfg 100 Xcel, Dfg 1 Xl

Description

The Blodgett 22301 Axial Cooling Fan W/Screws works by circulating air in the internal parts of the oven to helps in controlling the heat distribution in the process of operation. It operates on a motor-driven blade system that circulates air over hot surfaces to ensure that there is a uniform flow of air over the essential components. This cooling fan is installed in the internal part of the oven, which is located on the control or burner compartment and is fixed with the screws it has been provided with to ensure that the cooling fan is in the right place and that the airflow is directed in the right direction.

Dimensions:

  • Weight: 1.5 lbs
  • Length: 4.7 in
  • Height: 1.5 in
  • Width: 4.7 in

Step1: Turn off main breaker, unplug oven, and confirm no voltage.

Step2: Allow oven to cool completely before servicing.

Step3: Remove rear access panel to reach cooling fan assembly.

Step4: Disconnect old fan wiring and note connections for reinstallation.

Step5: Install new fan using hardware, ensure tight secure mounting.

Step6: Reconnect wiring per diagram, replace panel, restore power, and test airflow.

  • What maintenance is required for the Blodgett 22301 Fan?

    Clean oven cooling fan blades and housing regularly to prevent grease buildup and airflow restriction. Inspect wiring and motor connections for wear or looseness. Ensure proper ventilation and secure mounting to avoid vibration damage. Replace worn components promptly for safe operation.

  • What are common issues with the Blodgett 22301 Cooling Fan?

    • Motor overheating or failure due to continuous operation.
    • Reduced airflow from dust or grease buildup on blades.
    • Excess vibration caused by loose mounting or worn bearings.
    • Electrical faults leading to intermittent or no operation.
