Genuine OEM Part

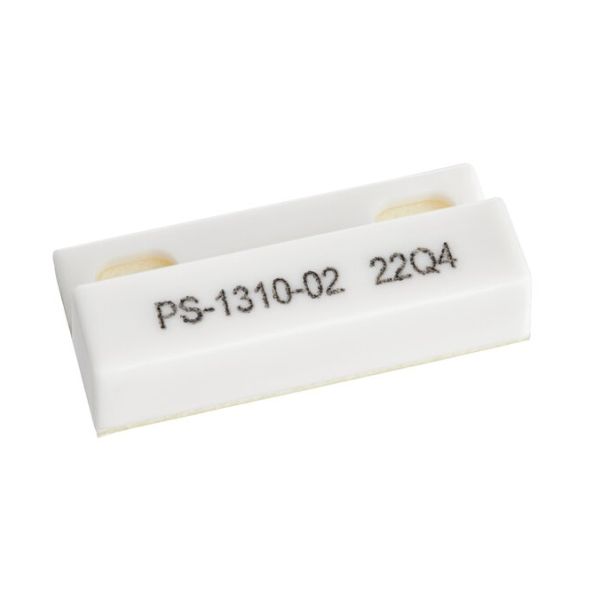

main product photo

Scotsman 11-0563-02 Ice Machine Curtain Switch Magnet

Rating:
5 5 1
1  Review Add Your Review
Special Price $31.15 Regular Price $32.81
In stock
SKU
11-0563-02
Add to Wish List
Electrical & Hardware, Switches & Relays,
Manufacturer:
The Scotsman 11-0563-02 Curtain Switch Magnet is a part that is fitted in commercial ice machines to regulate the running of the production cycle. This magnet works by closing or opening the curtain switch, and is used to sense the position of the ice curtain or dispenser mechanism. It is widely fitted in ice machines in food service settings. The magnet is an essential component of the appliance as it aids in synchronizing the timing and mechanical movement of the machine enabling the production of ice uniformly and the correct operation of the system.

Dimensions

  • Length: 0.5 In
  • Width: 0.25 In
  • Height: 0.875 In
  • Weight: 0.01 lbs
https://partsfe.com/media/catalog/product/s/c/scotsman-11-0563-02-curtain-switch-magnet-25887.jpg

Product Notes

  • Curtain Switch Magnet
  • Scotsman C0322, C0330, C0522, C0530, C0630, C0830, C1030,
  • C1448, C1848, C2148, Eh222
Reviews 1
Write Your Own Review
You're reviewing:Scotsman 11-0563-02 Ice Machine Curtain Switch Magnet
Your Rating
FAQS
Customer Questions
What maintenance is required for the Scotsman 11-0563-02 Curtain Switch Magnet?

Inspect the curtain switch magnet regularly for debris, corrosion, or misalignment. Clean gently with a dry cloth and ensure secure mounting. Proper maintenance ensures accurate switching and prevents ice machine operational faults and electrical contact issues.

What are common issues with the Scotsman 11-0563-02 Curtain Switch Magnet?

  • Magnet misalignment causing false switching signals.
  • Loss of magnetic strength reducing sensor responsiveness.
  • Switch not triggering curtain movement intermittently during operation.
  • Corrosion or debris buildup affecting electrical contact points.
  • Intermittent switching failure.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power to the appliance for safety.

Step2: Remove the front panel and locate the curtain switch assembly area near the evaporator curtain.

Step3: Detach the old switch magnet carefully, noting its position and orientation on the curtain or bracket.

Step4: Install the new switch magnet in the same alignment so it properly triggers the curtain sensor.

Step5: Reassemble panels, restore power, and test curtain movement to confirm correct operation.
