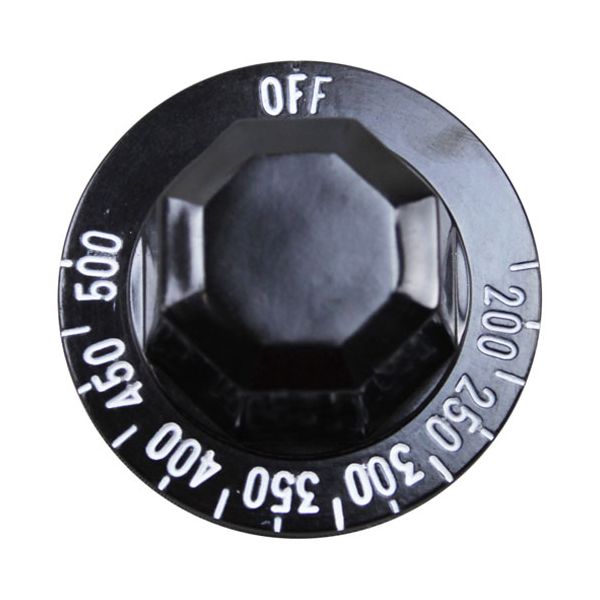

main product photo

American Range A32005 Dial 2 D OFF-200-500°F

Rating:
5 5 2
2  Reviews Add Your Review
Special Price $16.30 Regular Price $21.17
In stock
SKU
A32005
Add to Wish List
Electrical & Hardware, Knobs & Dials,
Manufacturer:
The American Range A32005 Dial 2" DIA OFF-200-500°F is a thermostat part that regulates the amount of energy that flows to heating components of the appliance. It works on a rotary system where it can be selected to be on or off. This dial is mounted on the front control panel. The positioning is such that it is in direct contact with the user interface and the heating elements can react to the position of the dial chosen without interfering with the normal operation of the appliance.

Dimensions

  • Length: 4.5 In
  • Width: 3.25 In
  • Height: 1 In
  • Weight: 0.1 lbs
https://partsfe.com/media/catalog/product/a/m/american-range-a32005-dial-2-d-off-200-500-79229-2.jpg

Product Notes

  • Black T'Stat Knob W/ White Numbers
  • [ 2" Dia ] [ Off-200-500] [Mount .187] [Flat Down]
  • Reverse Dial
  • American Range Ar-C, M1
  • Imperial Oven Series: Icv, Icvd, Ir W/Convection Oven.
  • Jade Oven Jco
  • Tri-Star Tscv
  • Wolf Oven Afs, Caf, Ch & Chss W/Elec Ignition,
  • H, Kafs, Kcaf, Kch, Kchr, Kchss, Kf, Kfs, Kh, Xch, Xfs.
  • *Models H & Kh - T'Stat For Cook Only
AMERICAN RANGE:
-10411, -A32005, 10411, A32005
GARLAND:
IMPERIAL:
-1161, 1161, IMP1161
JADE RANGE:
-300-186-000, -300186000, -3029800000, 300-186-000, 300186000, 3029800000
MARKET FORGE:
-93-0024, 93-0024
ROYAL RANGE:
U-LINE:
40-388
VULCAN HART:
-00-718224, -18224, -718224, 00-718224, 18224, 718224
Reviews 2
Write Your Own Review
You're reviewing:American Range A32005 Dial 2 D OFF-200-500°F
Your Rating
FAQS
Customer Questions
What maintenance is required for the American Range A32005 Dial?

Keep the dial clean and free from grease or debris to ensure clear visibility of markings. Inspect for cracks or fading. Ensure it is securely attached to the control shaft. Avoid using abrasive cleaners that may damage the surface.

What are common issues with the American Range A32005 Dial?

  • Faded or worn temperature markings.
  • Dial becoming loose on the control shaft.
  • Cracking or damage to the dial surface.
  • Inaccurate alignment with temperature settings.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Ensure the appliance is powered off.

Step2: Pull the old dial straight off the control shaft.

Step3: Align the new dial with the shaft fitting.

Step4: Push it firmly into place until snug.

Step5: Rotate to confirm smooth movement.

Step6: Restore power and verify the correct settings response.
